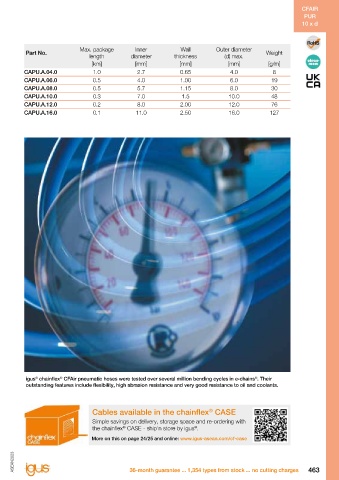

Page 469 - ASEAN Chainflex Catalogue 2023

CFAIR CFAIR
PUR PUR
10 x d 10 x d
Pneumatic hose | PUR | chainflex CFAIR
®

Max. package Inner Wall Outer diameter
Part No. Weight
length diameter thickness (d) max.
[km] [mm] [mm] [mm] [g/m]
CAPU.A.04.0 1.0 2.7 0.65 4.0 8
z For heaviest duty applications CAPU.A.06.0 0.5 4.0 1.00 6.0 19
z PUR hose CAPU.A.08.0 0.5 5.7 1.15 8.0 30
z Oil-resistant and coolant-resistant CAPU.A.10.0 0.3 7.0 1.5 10.0 48
z Abrasion-resistant CAPU.A.12.0 0.2 8.0 2.00 12.0 76
z Outside-toleranced CAPU.A.16.0 0.1 11.0 2.50 16.0 127
z PVC and halogen-free

Dynamic information
Bend radius flexible minimum 10 x d
fixed minimum 7.5 x d
Temperature flexible -25°C up to +80°C
fixed -40°C up to +85°C
v max. unsupported 10m/s
gliding 6m/s
a max. 50m/s²

Technical data
Material Abrasion-resistant polyurethane adapted to suit the requirements
in e-chains .
®
Colour: Blue
Dimensions Outside-toleranced

Operating pressure 12 bar at 20°C

Vacuum -1 bar at 20°C

Properties and approvals
Oil resistance Oil-resistant

Silicone-free Free from silicone which can affect paint adhesion (following PV
3.10.7 – status 1992)
Halogen-free Following DIN EN 60754

Lead-free Following 2011/65/EC (RoHS-II)

UKCA In accordance with the valid regulations of the United Kingdom
(as at 08/2021) igus chainflex CFAir pneumatic hoses were tested over several million bending cycles in e-chains . Their
®
®
®
outstanding features include flexibility, high abrasion resistance and very good resistance to oil and coolants.

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
Example image More on this on page 24/25 and online: www.igus-asean.com/cf-case
the chainflex CASE - ship'n store by igus .
®
®
