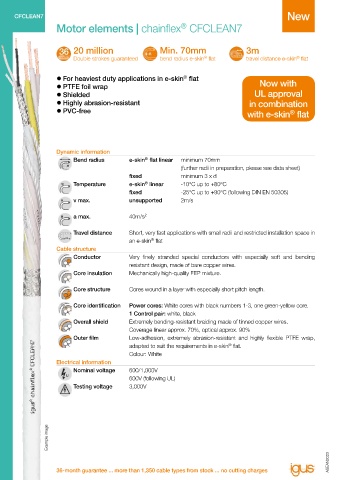

Page 464 - ASEAN Chainflex Catalogue 2023

CFCLEAN7 New CFCLEAN7
Motor elements | chainflex CFCLEAN7
®

20 million Min. 70mm 3m Properties and approvals Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Silicone-free
Double strokes guaranteed bend radius e-skin flat travel distance e-skin flat
®
®
1992)
UL verified Certificate No. B129699: „igus 36-month chainflex cable guarantee and service
®
z For heaviest duty applications in e-skin flat Now with life calculator based on 2 billion test cycles per year“
z PTFE foil wrap UL AWM See data sheet for details u www.igus-asean.com/CFCLEAN7
z Shielded UL approval
z Highly abrasion-resistant in combination REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z PVC-free with e-skin flat
®
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Cleanroom Air Purity Class 1, material/stranded structure tested by IPA according to
ISO 14644-14, test report IG 2107-1242
Dynamic information CE Following 2014/35/EU
Bend radius e-skin flat linear minimum 70mm
®
(further radii in preparation, please see data sheet) UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
fixed minimum 3 x d
Temperature e-skin linear -10°C up to +80°C
®
fixed -25°C up to +90°C (following DIN EN 50305) Typical application areas
®
v max. unsupported 2m/s z For heaviest duty applications and especially small radii in cleanroom with e-skin flat
z Especially for short, very fast applications with small radii and restricted installation space
®
a max. 40m/s² z Indoor applications with e-skin flat
z Semi-conductor/OLED manufacturing, medical cleanroom
Travel distance Short, very fast applications with small radii and restricted installation space in
®
an e-skin flat
®
Cable structure chainflex CFCLEAN are not cables in the sense of the normal standards for cables. Due
Conductor Very finely stranded special conductors with especially soft and bending to the absence of the outer jacket in CFCLEAN, which provides mechanical protection for
resistant design, made of bare copper wires. cables, the use of chainflex CFCLEAN is only permitted inside e-skin flat.
®
®
Core insulation Mechanically high-quality FEP mixture.

Core structure Cores wound in a layer with especially short pitch length.

Core identification Power cores: White cores with black numbers 1-3, one green-yellow core.
1 Control pair: white, black Part No. Number of cores and conductor Outer diameter Copper Weight
Overall shield Extremely bending-resistant braiding made of tinned copper wires. nominal cross section (d) max. index
Coverage linear approx. 70%, optical approx. 90% [mm²] [mm] [kg/km] [kg/km]
Outer film Low-adhesion, extremely abrasion-resistant and highly flexible PTFE wrap, CFCLEAN7.15.03.02.01 (4G1.5+(2x0.34)C)C 9.5 126 176
®
adapted to suit the requirements in e-skin flat. CFCLEAN7.15.04 (4G1.5)C 8.0 94 131
Colour: White CFCLEAN7.PE.25.01 (1G2.5)C 4.5 41 73
Electrical information Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Nominal voltage 600/1,000V
600V (following UL)
Testing voltage 3,000V

Example image

ASEAN2023 ASEAN2023

36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 459
®
