Page 50 - ASEAN Chainflex Catalogue 2023
P. 50

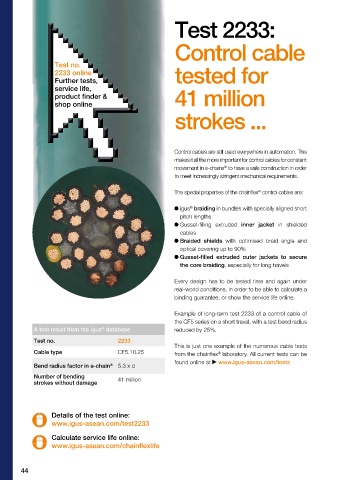

Test 2233:                                                                                                             Test 4901:


                                                              Control cable                                                                                                          Data cable



                    Test no.                                                                                                               Test no.
                    2233 online                               tested for                                                                   4901 online                               tested for
                    Further tests,                                                                                                         Further tests,
                    service life,                                                                                                          service life,
                    product finder &                          41 million                                                                   product finder &                          53 million
                    shop online                                                                                                            shop online
                                                              strokes ...                                                                                                            strokes ...






                                                              Control cables are still used everywhere in automation. This                                                           Although  data  cables  have  different  electrical
                                                              makes it all the more important for control cables for constant                                                        requirements than bus cables, data cables have a
                                                              movement in e-chains  to have a safe construction in order                                                             specific requirement for EMC protection. In the case of
                                                                                ®
                                                              to meet increasingly stringent mechanical requirements.                                                                constant movement in e-chains  , the EMC shielding is
                                                                                                                                                                                                                 ®
                                                                                                                                                                                     subjected to very high mechanical loads.
                                                              The special properties of the chainflex  control cables are:                                                           To ensure that this load does not lead to failures in the data,
                                                                                            ®
                                                                                                                                                                                     a safe construction is important, especially in the shielding.
                                                                  igus  braiding in bundles with specially aligned short
                                                                    ®
                                                                pitch lengths                                                                                                        The special properties of the chainflex  data cables are:
                                                                                                                                                                                                                   ®
                                                                  Gusset-filling extruded  inner jacket in shielded
                                                                cables                                                                                                                   Very short balanced winding in pairs according to
                                                                  Braided shields with optimised braid angle and                                                                       electrical requirements
                                                                optical covering up to 90%                                                                                                Braid angles overall shields have been especially
                                                                  Gusset-filled extruded  outer  jackets to  secure                                                                    developed and tested by igus
                                                                                                                                                                                                                 ®
                                                                the core braiding, especially for long travels                                                                             Pressure extruded outer jackets to secure the
                                                                                                                                                                                       shield and core structure
                                                              Every design has to be tested time and again under
                                                              real-world conditions, in order to be able to calculate a                                                              Every design has to be tested time and again under
                                                              binding guarantee, or show the service life online.                                                                    real-world conditions, in order to be able to calculate a
                                                                                                                                                                                     binding guarantee, or show the service life online.
                                                              Example of long-term test 2233 of a control cable of
                                                              the CF5 series on a short travel, with a test bend radius                                                              Example of long-term test 4901 of a CF211 series data
             A test result from the igus  database            reduced by 25%.                                                       A test result from the igus  database            cable with short travel, with a 75mm test bend radius.
                                     ®
                                                                                                                                                            ®
             Test no.                     2233                                                                                      Test no.                     4901
                                                              This is just one example of the numerous cable tests                                                                   This is just one example of the numerous cable tests
             Cable type                   CF5.10.25           from the chainflex  laboratory. All current tests can be              Cable type                   CF211 Data          from the chainflex  laboratory. All current tests can be
                                                                              ®
                                                                                                                                                                                                     ®
                                                              found online at   www.igus-asean.com/tests                                                                             found online at   www.igus-asean.com/tests
             Bend radius factor in e-chain ®  5.3 x d                                                                               Bend radius factor in e-chain ®  6.6 x d
             Number of bending            41 million                                                                                Number of bending            53 million
             strokes without damage                                                                                                 strokes without damage





                   Details of the test online:                                                                                            Details of the test online:
                   www.igus-asean.com/test2233                                                                                            www.igus-asean.com/test4901

                   Calculate service life online:                                                                                         Calculate service life online:
                   www.igus-asean.com/chainflexlife                                                                                       www.igus-asean.com/chainflexlife
