Harnessed Profibus cables | PUR

* Technical information on the cable quality:
PUR
Page 200

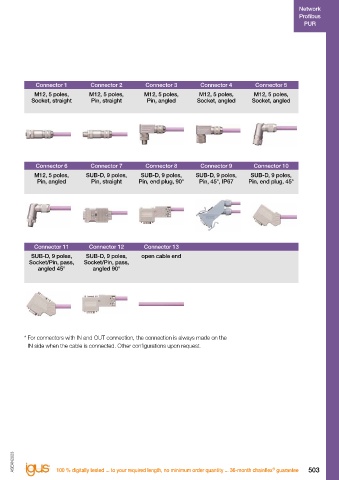

Harnessed Profibus cables, PUR, to your required length Connector 1 Connector 2 Connector 3 Connector 4 Connector 5
Harnessing with Part No. Number of cores and conductor Ø Bend M12, 5 poles, M12, 5 poles, M12, 5 poles, M12, 5 poles, M12, 5 poles,
connector combination nominal cross section radius Socket, straight Pin, straight Pin, angled Socket, angled Socket, angled
[mm²] [mm] [x d]
1 | 1 BUS9041104 (2x0.25)C 8.5 12.5
1 | 2 BUS9041101 (2x0.25)C 8.5 12.5
1 | 5 BUS9041111 (2x0.25)C 8.5 12.5
1 | 6 BUS9041106 (2x0.25)C 8.5 12.5
1 | 13 BUS9041105 (2x0.25)C 8.5 12.5
2 | 2 BUS9041102 (2x0.25)C 8.5 12.5
2 | 5 BUS9041113 (2x0.25)C 8.5 12.5 Connector 6 Connector 7 Connector 8 Connector 9 Connector 10
2 | 6 BUS9041107 (2x0.25)C 8.5 12.5 M12, 5 poles, SUB-D, 9 poles, SUB-D, 9 poles, SUB-D, 9 poles, SUB-D, 9 poles,
2 | 7 BUS9041154 (2x0.25)C 8.5 12.5 Pin, angled Pin, straight Pin, end plug, 90° Pin, 45°, IP67 Pin, end plug, 45°
2 | 8 BUS9041159 (2x0.25)C 8.5 12.5
2 | 9 BUS9041162 (2x0.25)C 8.5 12.5
2 | 10 BUS9041155 (2x0.25)C 8.5 12.5
2 | 13 BUS9041103 (2x0.25)C 8.5 12.5
3 | 4 BUS9041166 (2x0.25)C 8.5 12.5
3 | 13 BUS9041164 (2x0.25)C 8.5 12.5
4 | 13 BUS9041165 (2x0.25)C 8.5 12.5
5 | 5 BUS9041114 (2x0.25)C 8.5 12.5 Connector 11 Connector 12 Connector 13
5 | 6 BUS9041110 (2x0.25)C 8.5 12.5 SUB-D, 9 poles, SUB-D, 9 poles, open cable end
5 | 13 BUS9041112 (2x0.25)C 8.5 12.5 Socket/Pin, pass, Socket/Pin, pass,
6 | 6 BUS9041109 (2x0.25)C 8.5 12.5 angled 45° angled 90°
6 | 13 BUS9041108 (2x0.25)C 8.5 12.5
7 | 2 BUS9041153 1) (2x0.25)C 8.5 12.5
7 | 13 BUS9041156 (2x0.25)C 8.5 12.5
8 | 2 BUS9041161 1) (2x0.25)C 8.5 12.5
9 | 2 BUS9041160 1) (2x0.25)C 8.5 12.5
9 | 13 BUS9041163 (2x0.25)C 8.5 12.5
10 | 2 BUS9041152 1) (2x0.25)C 8.5 12.5
10 | 13 BUS9041157 (2x0.25)C 8.5 12.5 * For connectors with IN and OUT connection, the connection is always made on the
11 | 13 BUS9041158 1) (2x0.25)C 8.5 12.5 IN side when the cable is connected. Other configurations upon request.
12 | 2 BUS9041151 1) (2x0.25)C 8.5 12.5

1) For connectors with IN and OUT connection, the connection is always made on the IN side
when the cable is connected. Other configurations upon request.

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
