Network Network
Profinet Profinet

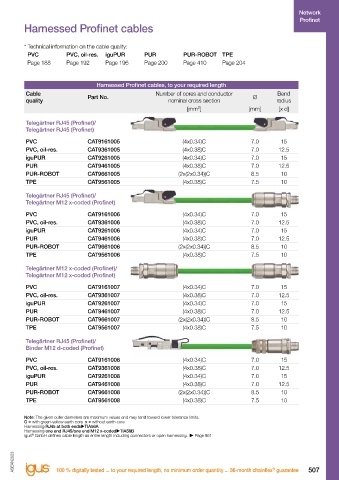

Harnessed Profinet cables Harnessed Profinet cables

* Technical information on the cable quality: * Technical information on the cable quality:
PVC PVC, oil-res. iguPUR PUR PUR-ROBOT TPE PVC PVC, oil-res. iguPUR PUR PUR-ROBOT TPE
Page 188 Page 192 Page 196 Page 200 Page 410 Page 204 Page 188 Page 192 Page 196 Page 200 Page 410 Page 204

Harnessed Profinet cables, to your required length Harnessed Profinet cables, to your required length
Cable Part No. Number of cores and conductor Ø Bend Cable Part No. Number of cores and conductor Ø Bend
quality nominal cross section radius quality nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]

Yamaichi RJ45 (Profinet)/ Telegärtner RJ45 (Profinet)/
Yamaichi RJ45 (Profinet) Telegärtner RJ45 (Profinet)
PVC CAT9161001 (4x0.34)C 7.0 15 PVC CAT9161005 (4x0.34)C 7.0 15
PVC, oil-res. CAT9361001 (4x0.38)C 7.0 12.5 PVC, oil-res. CAT9361005 (4x0.38)C 7.0 12.5
iguPUR CAT9261001 (4x0.34)C 7.0 15 iguPUR CAT9261005 (4x0.34)C 7.0 15
PUR CAT9461001 (4x0.38)C 7.0 12.5 PUR CAT9461005 (4x0.38)C 7.0 12.5
PUR-ROBOT CAT9661001 (2x(2x0.34))C 8.5 10 PUR-ROBOT CAT9661005 (2x(2x0.34))C 8.5 10
TPE CAT9561001 (4x0.38)C 7.5 10 TPE CAT9561005 (4x0.38)C 7.5 10

Harting Han3A RJ45 (Profinet)/ Telegärtner RJ45 (Profinet)/
Harting Han3A RJ45 (Profinet) Telegärtner M12 x-coded (Profinet)
PVC CAT9161002 (4x0.34)C 7.0 15 PVC CAT9161006 (4x0.34)C 7.0 15
PVC, oil-res. CAT9361002 (4x0.38)C 7.0 12.5 PVC, oil-res. CAT9361006 (4x0.38)C 7.0 12.5
iguPUR CAT9261002 (4x0.34)C 7.0 15 iguPUR CAT9261006 (4x0.34)C 7.0 15
PUR CAT9461002 (4x0.38)C 7.0 12.5 PUR CAT9461006 (4x0.38)C 7.0 12.5
PUR-ROBOT CAT9661002 (2x(2x0.34))C 8.5 10 PUR-ROBOT CAT9661006 (2x(2x0.34))C 8.5 10
TPE CAT9561002 (4x0.38)C 7.5 10 TPE CAT9561006 (4x0.38)C 7.5 10

Harting RJ45 (Profinet)/ Telegärtner M12 x-coded (Profinet)/
Harting RJ45 (Profinet) Telegärtner M12 x-coded (Profinet)
PVC CAT9161003 (4x0.34)C 7.0 15 PVC CAT9161007 (4x0.34)C 7.0 15
PVC, oil-res. CAT9361003 (4x0.38)C 7.0 12.5 PVC, oil-res. CAT9361007 (4x0.38)C 7.0 12.5
iguPUR CAT9261003 (4x0.34)C 7.0 15 iguPUR CAT9261007 (4x0.34)C 7.0 15
PUR CAT9461003 (4x0.38)C 7.0 12.5 PUR CAT9461007 (4x0.38)C 7.0 12.5
PUR-ROBOT CAT9661003 (2x(2x0.34))C 8.5 10 PUR-ROBOT CAT9661007 (2x(2x0.34))C 8.5 10
TPE CAT9561003 (4x0.38)C 7.5 10 TPE CAT9561007 (4x0.38)C 7.5 10

Telegärtner RJ45 (Profinet)/ Telegärtner RJ45 (Profinet)/
Telegärtner RJ45 (Profinet) Binder M12 d-coded (Profinet)
PVC CAT9161004 (4x0.34)C 7.0 15 PVC CAT9161008 (4x0.34)C 7.0 15
PVC, oil-res. CAT9361004 (4x0.38)C 7.0 12.5 PVC, oil-res. CAT9361008 (4x0.38)C 7.0 12.5
iguPUR CAT9261004 (4x0.34)C 7.0 15 iguPUR CAT9261008 (4x0.34)C 7.0 15
PUR CAT9461004 (4x0.38)C 7.0 12.5 PUR CAT9461008 (4x0.38)C 7.0 12.5
PUR-ROBOT CAT9661004 (2x(2x0.34))C 8.5 10 PUR-ROBOT CAT9661008 (2x(2x0.34))C 8.5 10
TPE CAT9561004 (4x0.38)C 7.5 10 TPE CAT9561008 (4x0.38)C 7.5 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B Harnessing one end RJ45/one end M12 x-codedTIA56B
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
ASEAN2023 ASEAN2023

506 EPLAN download, configurators  www.igus-asean.com/profinet 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 507
®
