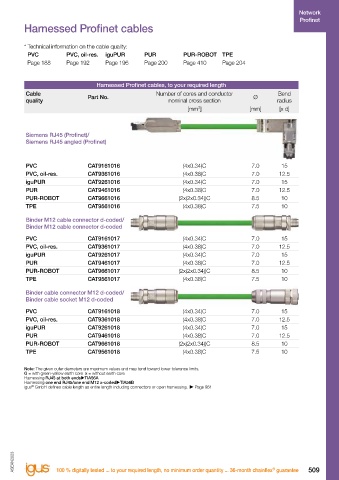

Page 515 - ASEAN Chainflex Catalogue 2023

Network Network
Profinet Profinet
Harnessed Profinet cables Harnessed Profinet cables

* Technical information on the cable quality: * Technical information on the cable quality:
PVC PVC, oil-res. iguPUR PUR PUR-ROBOT TPE PVC PVC, oil-res. iguPUR PUR PUR-ROBOT TPE
Page 188 Page 192 Page 196 Page 200 Page 410 Page 204 Page 188 Page 192 Page 196 Page 200 Page 410 Page 204

Harnessed Profinet cables, to your required length Harnessed Profinet cables, to your required length
Cable Part No. Number of cores and conductor Ø Bend Cable Part No. Number of cores and conductor Ø Bend
quality nominal cross section radius quality nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]

Telegärtner RJ45 (Profinet)/
Binder M12 d-coded angled (Profinet) Siemens RJ45 (Profinet)/
Siemens RJ45 angled (Profinet)

PVC CAT9161009 (4x0.34)C 7.0 15
PVC, oil-res. CAT9361009 (4x0.38)C 7.0 12.5 PVC CAT9161016 (4x0.34)C 7.0 15
iguPUR CAT9261009 (4x0.34)C 7.0 15 PVC, oil-res. CAT9361016 (4x0.38)C 7.0 12.5
PUR CAT9461009 (4x0.38)C 7.0 12.5 iguPUR CAT9261016 (4x0.34)C 7.0 15
PUR-ROBOT CAT9661009 (2x(2x0.34))C 8.5 10 PUR CAT9461016 (4x0.38)C 7.0 12.5
TPE CAT9561009 (4x0.38)C 7.5 10 PUR-ROBOT CAT9661016 (2x(2x0.34))C 8.5 10
TPE CAT9561016 (4x0.38)C 7.5 10
Phoenix Contact RJ45 (Profinet)/
Phoenix Contact RJ45 (Profinet) Binder M12 cable connector d-coded/
Binder M12 cable connector d-coded
PVC CAT9161012 (4x0.34)C 7.0 15
PVC, oil-res. CAT9361012 (4x0.38)C 7.0 12.5 PVC CAT9161017 (4x0.34)C 7.0 15
iguPUR CAT9261012 (4x0.34)C 7.0 15 PVC, oil-res. CAT9361017 (4x0.38)C 7.0 12.5
PUR CAT9461012 (4x0.38)C 7.0 12.5 iguPUR CAT9261017 (4x0.34)C 7.0 15
PUR-ROBOT CAT9661012 (2x(2x0.34))C 8.5 10 PUR CAT9461017 (4x0.38)C 7.0 12.5
TPE CAT9561012 (4x0.38)C 7.5 10 PUR-ROBOT CAT9661017 (2x(2x0.34))C 8.5 10
Phoenix Contact M12 x-coded TPE CAT9561017 (4x0.38)C 7.5 10
(Profinet)/Phoenix Contact M12
x-coded (Profinet) Binder cable connector M12 d-coded/
PVC CAT9161014 (4x0.34)C 7.0 15 Binder cable socket M12 d-coded
PVC, oil-res. CAT9361014 (4x0.38)C 7.0 12.5 PVC CAT9161018 (4x0.34)C 7.0 15
iguPUR CAT9261014 (4x0.34)C 7.0 15 PVC, oil-res. CAT9361018 (4x0.38)C 7.0 12.5
PUR CAT9461014 (4x0.38)C 7.0 12.5 iguPUR CAT9261018 (4x0.34)C 7.0 15
PUR-ROBOT CAT9661014 (2x(2x0.34))C 8.5 10 PUR CAT9461018 (4x0.38)C 7.0 12.5
TPE CAT9561014 (4x0.38)C 7.5 10 PUR-ROBOT CAT9661018 (2x(2x0.34))C 8.5 10
TPE CAT9561018 (4x0.38)C 7.5 10
Siemens RJ45 (Profinet)/
Siemens RJ45 (Profinet)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
PVC CAT9161015 (4x0.34)C 7.0 15 G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
PVC, oil-res. CAT9361015 (4x0.38)C 7.0 12.5 Harnessing one end RJ45/one end M12 x-codedTIA56B
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
iguPUR CAT9261015 (4x0.34)C 7.0 15
PUR CAT9461015 (4x0.38)C 7.0 12.5
PUR-ROBOT CAT9661015 (2x(2x0.34))C 8.5 10
TPE CAT9561015 (4x0.38)C 7.5 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
ASEAN2023 ASEAN2023
508 EPLAN download, configurators  www.igus-asean.com/profinet 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 509
®
