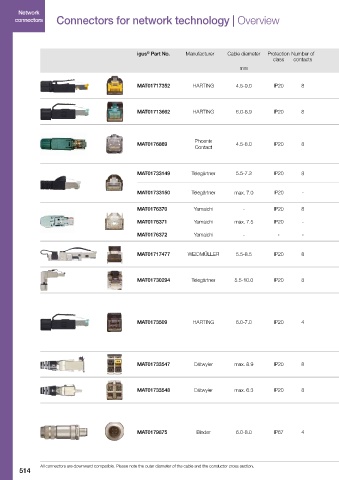

Network Network
connectors Connectors for network technology | Overview connectors

®
igus Part No. Manufacturer Cable diameter Protection Number of Connection method Bus type Conductor Cable quality matching Maximum cable Number of cores
class contacts cross section chainflex cables diameter and conductor
®
nominal cross
mm [mm²] mm section
PVC CFBUS.PVC.049 7.5 (4x(2x0.15))C
PUR CFBUS.PUR.049 7.5 (4x(2x0.15))C
MAT01717352 HARTING 4.5-9.0 IP20 8 Cutting clamps CAT6 0.14-0.34
TPE CFBUS.049 8.5 (4x(2x0.15))C
PUR-Robot CFROBOT8.049 8.5 4x(2x0.14)C
PVC CFBUS.PVC.049* 7.5 (4x(2x0.15))C
MAT01713662 HARTING 6.0-6.9 IP20 8 Hand tool needed CAT6 0.09-0.25
PUR CFBUS.PUR.049* 7.5 (4x(2x0.15))C
PVC CF888.045 7.5 (4x(2x0.15))C
PVC CFBUS.PVC.045 7.5 (4x(2x0.15))C
Phoenix iguPUR CF898.045 7.5 (4x(2x0.15))C
MAT0176869 4.5-8.0 IP20 8 Cutting clamps CAT5e 0.14-0.25
Contact PUR CFBUS.PUR.045 7.5 (4x(2x0.15))C
TPE CFBUS.045* 8.5 (4x(2x0.15))C
PUR-Robot CFROBOT8.045* 8.5 4x(2x0.14)C
TPE CFBUS.050* 10.5 4x(2x0.15)C)C
CAT6A
MAT01733149 Telegärtner 5.5-7.3 IP20 8 Hand tool needed 0.14-0.25 PUR-Robot CFROBOT8.050* 10.5 4x(2x0.15)C
CAT6
PVC CFBUS.PVC.049 7.5 (4x(2x0.15))C
PUR CFBUS.PUR.049 7.5 (4x(2x0.15))C
MAT01733150 Telegärtner max. 7.0 IP20 - - - - TPE CFBUS.049* 8.5 (4x(2x0.15))C
PUR-Robot CFROBOT8.049* 8.5 4x(2x0.14)C
MAT0176370 Yamaichi - IP20 8 Hand tool needed CAT6 0.14-0.25
PVC CFBUS.PVC.049 7.5 (4x(2x0.15))C
PUR CFBUS.PUR.049 7.5 (4x(2x0.15))C
MAT0176371 Yamaichi max. 7.5 IP20 - - - -
TPE CFBUS.049* 8.5 (4x(2x0.15))C
PUR-Robot CFROBOT8.049* 8.5 4x(2x0.14)C
MAT0176372 Yamaichi - - - - - -
Cat.6 PVC CFBUS.PVC.049 7.5 (4x(2x0.15))C
(CAT6A PUR CFBUS.PUR.049 7.5 (4x(2x0.15))C
MAT01717477 WEIDMÜLLER 5.5-8.5 IP20 8 Cutting clamps 0.14-0.34
acc. to data TPE CFBUS.049 8.5 (4x(2x0.15))C
sheet) PUR-Robot CFROBOT8.049 8.5 4x(2x0.14)C
PVC CFBUS.PVC.050 9.5 4x(2x0.20)C
PUR CFBUS.PUR.050 9.5 4x(2x0.20)C
MAT01730294 Telegärtner 5.5-10.0 IP20 8 Cutting clamps CAT6A 0.14-0.34
TPE CFBUS.050* 10.5 (4x(2x0.15)C)C
PUR-Robot CFROBOT8.050* 10.5 4x(2x0.15)C
PVC CF888.060 7 (4x0.38)C
PVC CFBUS.PVC.040 6.5 (4x0.25)C
PVC CFBUS.PVC.060 7 (4x0.38)C
iguPUR CF898.060 7 (4x0.38)C
CAT5/
MAT0173509 HARTING 6.0-7.0 IP20 4 Cutting clamps 0.14-0.34 PUR CFBUS.PUR.040 6.5 (4x0.25)C
Profinet
PUR CFBUS.PUR.060 7 (4x0.38)C
TPE CFBUS.040 7 (4x0.25)C
TPE CFBUS.060* 7.5 (4x0.38)C
PUR-Robot CFROBOT8.060* 8.5 (2x(2x0.34))C
PVC CFBUS.PVC.052* 9.5 (4x(2x0.15)C)C
PUR CFBUS.PUR.052* 9.5 (4x(2x0.15)C)C
MAT01733547 Dätwyler max. 8.9 IP20 8 Cutting clamps CAT7A 0.15-0.34
TPE CFBUS.052* 10.5 (4x(2x0.15)C)C
PUR-Robot CFROBOT8.052* 10.5 4x(2x0.15)C
PVC CFBUS.PVC.052* 9.5 (4x(2x0.15)C)C
PUR CFBUS.PUR.052* 9.5 (4x(2x0.15)C)C
MAT01733548 Dätwyler max. 6.3 IP20 8 Cutting clamps CAT7A 0.15-0.34
TPE CFBUS.052* 10.5 (4x(2x0.15)C)C
PUR-Robot CFROBOT8.052* 10.5 4x(2x0.15)C
PVC CF888.060 7 (4x0.38)C
PVC CFBUS.PVC.040 6.5 (4x0.25)C
PVC CFBUS.PVC.060 7 (4x0.38)C
iguPUR CF898.060 7 (4x0.38)C
CAT5/
MAT0179875 Binder 6.0-8.0 IP67 4 Screw clamps max. 0.75 PUR CFBUS.PUR.040 6.5 (4x0.25)C
Profinet
PUR CFBUS.PUR.060 7 (4x0.38)C
TPE CFBUS.040 7 (4x0.25)C
TPE CFBUS.060 7.5 (4x0.38)C
PUR-Robot CFROBOT8.060* 8.5 (2x(2x0.34))C
All connectors are downward compatible. Please note the outer diameter of the cable and the conductor cross section. * According to data sheet, the connectors do not match these cables but the cables can nevertheless be manually modified/tapered.
All connectors are downward compatible. Please note the outer diameter of the cable and the conductor cross section.
* According to data sheet, the connectors do not match these cables but the cables can nevertheless be manually modified/tapered.
