Network New Network
Profinet Harnessed Profinet cables Harnessed DeviceNet cable DeviceNet
with moulded connectors with Binder M12 A-coded

* Technical information on the cable quality: * Technical information on the cable quality:
PVC PVC, oil-res. iguPUR PUR PUR-ROBOT TPE TPE
Page 188 Page 192 Page 196 Page 200 Page 410 Page 204 Page 204

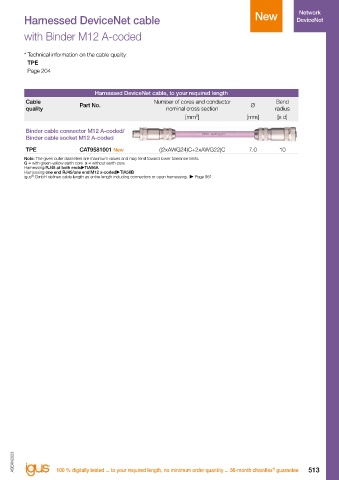

Harnessed Profinet cables with moulded M12 connectors, in fixed lengths Harnessed DeviceNet cable, to your required length
Cable Part No. Number of cores and conductor Ø Bend Cable Cable Part No. Number of cores and conductor Ø Bend
quality nominal cross section radius length quality nominal cross section radius
[mm²] [mm] [x d] [m] [mm²] [mm] [x d]

M12 cable connector d-coded/ Binder cable connector M12 A-coded/
M12 cable connector d-coded Binder cable socket M12 A-coded

PVC, oil-res. BUS9041070 (4x0.38)C 7.0 12.5 3 TPE CAT9581001 New ((2xAWG24)C+2xAWG22)C 7.0 10
PVC, oil-res. BUS9041071 (4x0.38)C 7.0 12.5 5 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
PUR BUS9041170 (4x0.38)C 7.0 12.5 3 G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
PUR BUS9041171 (4x0.38)C 7.0 12.5 5 Harnessing one end RJ45/one end M12 x-codedTIA56B
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
TPE BUS9041270 (4x0.38)C 7.5 10 3
TPE BUS9041271 (4x0.38)C 7.5 10 5
M12 cable connector d-coded/
open cable end

PVC, oil-res. BUS9041072 (4x0.38)C 7.0 12.5 3
PVC, oil-res. BUS9041073 (4x0.38)C 7.0 12.5 5
PUR BUS9041172 (4x0.38)C 7.0 12.5 3
PUR BUS9041173 (4x0.38)C 7.0 12.5 5
TPE BUS9041272 (4x0.38)C 7.5 10 3
TPE BUS9041273 (4x0.38)C 7.5 10 5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®

ASEAN2023 ASEAN2023

512 EPLAN download, configurators  www.igus-asean.com/profinet 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 513
®
