CF.INI                                                                                                                                                                                                                    CF.INI
         CF98                                                                                                                                                                                                                      CF98
          M8                                                                                                                                                                                                                       M8

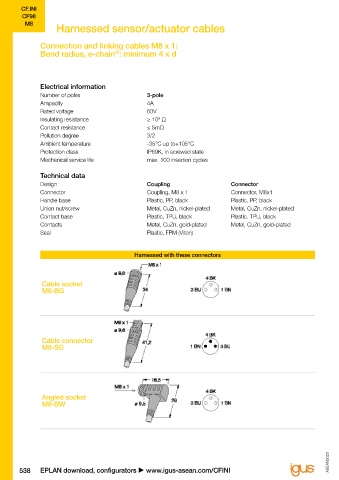

                     Harnessed sensor/actuator cables


               Connection and linking cables M8 x 1:                                                                             Type                              Part No.           Number of cores and conductor    Ø  Cable
                                         ®
               Bend radius, e-chain : minimum 4 x d                                                                                                                                       nominal cross section           length
                                                                                                                                                                                               [mm²]              [mm]     [m]
                                                                                                                                                                       Connection cable M8

                                                                                                                                 Cable socket M8/
               Electrical information                                                                                            open cable end
               Number of poles                       3-pole
               Ampacity                              4A                                                                          CF98.INI-P3-M8-BG-3               MAT90410245  1)             3x0.25              5.0      3
               Rated voltage                         60V                                                                         CF98.INI-P3-M8-BG-5               MAT90410246  1)             3x0.25              5.0      5
               Insulating resistance                 ≥ 10  Ω                                                                     CF98.INI-P3-M8-BG-7               MAT90410247  1)             3x0.25              5.0      7
                                                        9
               Contact resistance                    ≤ 5mΩ                                                                       CF98.INI-P3-M8-BG-10              MAT90410248  1)             3x0.25              5.0      10
               Pollution degree                      3/2                                                                         CF98.INI-P3-M8-BG-15              MAT90410249  1)             3x0.25              5.0      15
               Ambient temperature                   -35°C up to+105°C                                                           Angled socket M8/
               Protection class                      IP69K, in screwed state                                                     open cable end
               Mechanical service life               max. 100 insertion cycles
                                                                                                                                 CF98.INI-P3-M8-BW-3               MAT90410250  1)             3x0.25              5.0      3
               Technical data                                                                                                    CF98.INI-P3-M8-BW-5               MAT90410251  1)             3x0.25              5.0      5
               Design                                Coupling                     Connector                                      CF98.INI-P3-M8-BW-7               MAT90410252  1)             3x0.25              5.0      7
               Connector                             Coupling, M8 x 1             Connector, M8x1                                CF98.INI-P3-M8-BW-10              MAT90410253  1)             3x0.25              5.0      10
               Handle base                           Plastic, PP, black           Plastic, PP, black                             CF98.INI-P3-M8-BW-15              MAT90410254  1)             3x0.25              5.0      15
               Union nut/screw                       Metal, CuZn, nickel-plated   Metal, CuZn, nickel-plated                                                             Linking cable M8
               Contact base                          Plastic, TPU, black          Plastic, TPU, black                            M8 cable socket/
               Contacts                              Metal, CuZn, gold-plated     Metal, CuZn, gold-plated                       M8 cable connector
               Seal                                  Plastic, FPM (Viton)
                                                                                                                                 CF98.INI-P3-M8-BG/M8-SG-2         MAT90410306  1)             3x0.25              5.0      2
                                                                                                                                 CF98.INI-P3-M8-BG/M8-SG-5         MAT90410307  1)             3x0.25              5.0      5
                                                Harnessed with these connectors                                                  CF98.INI-P3-M8-BG/M8-SG-10        MAT90410308  1)             3x0.25              5.0      10

                                                                                                                                 Angled socket M8/
                                                                                                                                 cable connector M8
                Cable socket                                                                                                     CF98.INI-P3-M8-BW/M8-SG-2         MAT90410309  1)             3x0.25              5.0      2
                M8-BG
                                                                                                                                 CF98.INI-P3-M8-BW/M8-SG-5         MAT90410310  1)             3x0.25              5.0      5
                                                                                                                                 CF98.INI-P3-M8-BW/M8-SG-10        MAT90410311  1)             3x0.25              5.0      10
                                                                                                                                 1)  Delivery time upon request

                                                                                                                                 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
                                                                                                                                 Also sold by the meter to your required length, unassembled.
                                                                                                                                   ®
                Cable connector                                                                                                  igus  GmbH defines cable length as entire length including connectors or open harnessing.    Page 961
                M8-SG









                Angled socket
                M8-BW
