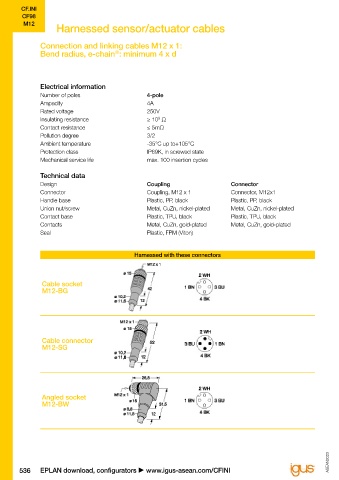

Harnessed sensor/actuator cables

Connection and linking cables M12 x 1: Type Part No. Number of cores and conductor Ø Cable
®
Bend radius, e-chain : minimum 4 x d nominal cross section length
[mm²] [mm] [m]
Connection cable M12

Cable socket M12/
Electrical information open cable end
Number of poles 4-pole
Ampacity 4A CF98.INI-P4-M12-BG-3 MAT90410235 1) 4x0.34 6.0 3
Rated voltage 250V CF98.INI-P4-M12-BG-5 MAT90410236 1) 4x0.34 6.0 5
Insulating resistance ≥ 10 Ω CF98.INI-P4-M12-BG-7 MAT90410237 1) 4x0.34 6.0 7
9
Contact resistance ≤ 5mΩ CF98.INI-P4-M12-BG-10 MAT90410238 1) 4x0.34 6.0 10
Pollution degree 3/2 CF98.INI-P4-M12-BG-15 MAT90410239 1) 4x0.34 6.0 15
Ambient temperature -35°C up to+105°C Angled socket M21/
Protection class IP69K, in screwed state open cable end
Mechanical service life max. 100 insertion cycles
CF98.INI-P4-M12-BW-3 MAT90410240 1) 4x0.34 6.0 3
Technical data CF98.INI-P4-M12-BW-5 MAT90410241 1) 4x0.34 6.0 5
Design Coupling Connector CF98.INI-P4-M12-BW-7 MAT90410242 1) 4x0.34 6.0 7
Connector Coupling, M12 x 1 Connector, M12x1 CF98.INI-P4-M12-BW-10 MAT90410243 1) 4x0.34 6.0 10
Handle base Plastic, PP, black Plastic, PP, black CF98.INI-P4-M12-BW-15 MAT90410244 1) 4x0.34 6.0 15
Union nut/screw Metal, CuZn, nickel-plated Metal, CuZn, nickel-plated Linking cable M12
Contact base Plastic, TPU, black Plastic, TPU, black Cable socket M12/
Contacts Metal, CuZn, gold-plated Metal, CuZn, gold-plated cable connector M12
Seal Plastic, FPM (Viton)
CF98.INI-P4-M12-BG/M12-SG-2 MAT90410300 1) 4x0.34 6.0 2
CF98.INI-P4-M12-BG/M12-SG-5 MAT90410301 1) 4x0.34 6.0 5
Harnessed with these connectors CF98.INI-P4-M12-BG/M12-SG-10 MAT90410302 1) 4x0.34 6.0 10

Cable socket M12/
cable connector M12
Cable socket CF98.INI-P4-M12-BW/M12-SG-2 MAT90410303 1) 4x0.34 6.0 2
M12-BG
CF98.INI-P4-M12-BW/M12-SG-5 MAT90410304 1) 4x0.34 6.0 5
CF98.INI-P4-M12-BW/M12-SG-10 MAT90410305 1) 4x0.34 6.0 10
1) Delivery time upon request

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Also sold by the meter to your required length, unassembled.
®
Cable connector igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
M12-SG

Angled socket
M12-BW
