CF.INI CF.INI

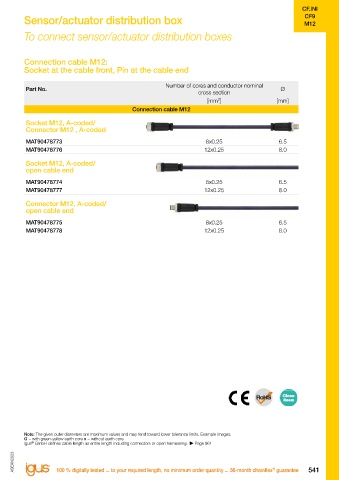

CF9 Sensor/actuator distribution box Sensor/actuator distribution box CF9

M23 M12
To connect sensor/actuator distribution boxes To connect sensor/actuator distribution boxes

Connection cable M23: Connection cable M12:
Socket/Pin at the cable front, cable ends cut Socket at the cable front, Pin at the cable end

Number of cores and conductor nominal Number of cores and conductor nominal
Part No. Ø Part No. Ø
cross section cross section
[mm²] [mm] [mm²] [mm]
Connection cable M23 Connection cable M12

Socket M23/ Socket M12, A-coded/
open cable end Connector M12 , A-coded
MAT90436630 1) 16x0.34+3x0.75 11.0 MAT90478773 8x0.25 6.5
MAT90478776 12x0.25 8.0
Connector M23/
open cable end Socket M12, A-coded/
open cable end
MAT90436631 1) 16x0.34+3x0.75 11.0
Connection cable M23 MAT90478774 8x0.25 6.5
MAT90478777 12x0.25 8.0
Connector M23/
angled socket M23 Connector M12, A-coded/
open cable end
MAT90436629 16x0.34+3x0.75 11.0
MAT90478775 8x0.25 6.5
Connector M23/ MAT90478778 12x0.25 8.0
socket M23

MAT90436628 16x0.34+3x0.75 11.0

1) igus gladly pre-harnesses the cable according to your technical guidelines.
®

All cables available to your required length.

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example images. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example images.
®
* igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core x = without earth core
®
G = with green-yellow earth core x = without earth core igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
ASEAN2023 ASEAN2023
540 EPLAN download, configurators  www.igus-asean.com/CFINI 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 541
®
