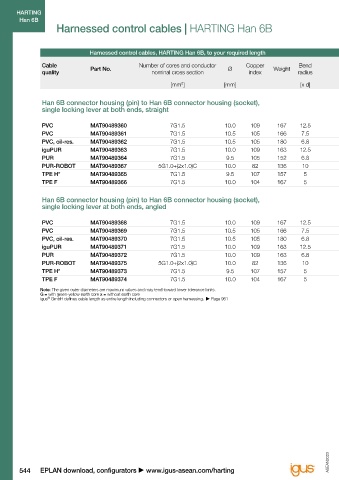

Harnessed control cables | HARTING Han 6B

Harnessed control cables, HARTING Han 6B, to your required length
Insert 1 Housing 1 Insert 2 Housing 2
Cable Part No. Number of cores and conductor Ø Copper Weight Bend chainflex HARTING HARTING HARTING HARTING
®
quality nominal cross section index radius cable
Part No. Part No. Part No. Part No.
[mm²] [mm] [x d]

Han 6B connector housing (pin) to Han 6B connector housing (socket),
single locking lever at both ends, straight

PVC MAT90489360 7G1.5 10.0 109 167 12.5 CF880.15.07 09330062702 19300061440 09330062602 19300061440
PVC MAT90489361 7G1.5 10.5 105 166 7.5 CF130.15.07.UL 09330062702 19300061440 09330062602 19300061440
PVC, oil-res. MAT90489362 7G1.5 10.5 105 180 6.8 CF5.15.07 09330062702 19300061440 09330062602 19300061440
iguPUR MAT90489363 7G1.5 10.0 109 163 12.5 CF890.15.07 09330062702 19300061440 09330062602 19300061440
PUR MAT90489364 7G1.5 9.5 105 152 6.8 CF77.UL.15.07.D 09330062702 19300061440 09330062602 19300061440
PUR-ROBOT MAT90489367 5G1.0+(2x1.0)C 10.0 82 136 10 CFROBOT9.001 09330062702 19300061440 09330062602 19300061440
TPE H* MAT90489365 7G1.5 9.5 107 157 5 CF9.15.07 09330062702 19300061440 09330062602 19300061440
TPE F MAT90489366 7G1.5 10.0 104 167 5 CF9.UL.15.07 09330062702 19300061440 09330062602 19300061440

Han 6B connector housing (pin) to Han 6B connector housing (socket),
single locking lever at both ends, angled

PVC MAT90489368 7G1.5 10.0 109 167 12.5 CF880.15.07 09330062702 19300061541 09330062602 19300061541
PVC MAT90489369 7G1.5 10.5 105 166 7.5 CF130.15.07.UL 09330062702 19300061540 09330062602 19300061540
PVC, oil-res. MAT90489370 7G1.5 10.5 105 180 6.8 CF5.15.07 09330062702 19300061540 09330062602 19300061540
iguPUR MAT90489371 7G1.5 10.0 109 163 12.5 CF890.15.07 09330062702 19300061541 09330062602 19300061541
PUR MAT90489372 7G1.5 10.0 109 163 6.8 CF77.UL.15.07.D 09330062702 19300061540 09330062602 19300061540
PUR-ROBOT MAT90489375 5G1.0+(2x1.0)C 10.0 82 136 10 CFROBOT9.001 09330062702 19300061540 09330062602 19300061540
TPE H* MAT90489373 7G1.5 9.5 107 157 5 CF9.15.07 09330062702 19300061540 09330062602 19300061540
TPE F MAT90489374 7G1.5 10.0 104 167 5 CF9.UL.15.07 09330062702 19300061540 09330062602 19300061540

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
