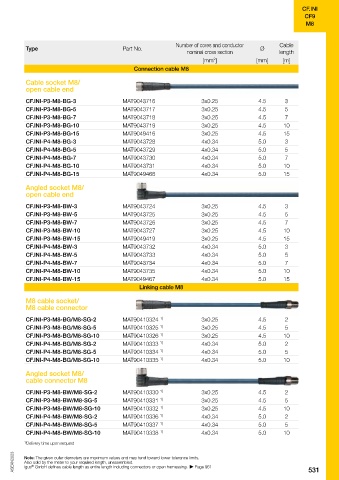

Page 537 - ASEAN Chainflex Catalogue 2023

CF.INI CF.INI
CF9 CF9
M8 M8
Harnessed sensor/actuator cables

Connection and linking cables M8 x 1: Type Part No. Number of cores and conductor Ø Cable
®
Bend radius, e-chain : minimum 5 x d nominal cross section length
[mm²] [mm] [m]
Connection cable M8

Cable socket M8/
Electrical information open cable end
Number of poles 3-pole 4-pole
Ampacity 4A 4A CF.INI-P3-M8-BG-3 MAT9043716 3x0.25 4.5 3
Rated voltage 60V 30V CF.INI-P3-M8-BG-5 MAT9043717 3x0.25 4.5 5
Insulating resistance ≥ 10 Ω ≥ 10 Ω CF.INI-P3-M8-BG-7 MAT9043718 3x0.25 4.5 7
9
9
Contact resistance ≤ 5mΩ ≤ 5mΩ CF.INI-P3-M8-BG-10 MAT9043719 3x0.25 4.5 10
Pollution degree 3/2 3/2 CF.INI-P3-M8-BG-15 MAT9049416 3x0.25 4.5 15
Ambient temperature -35°C up to+105°C -35°C up to+105°C CF.INI-P4-M8-BG-3 MAT9043728 4x0.34 5.0 3
Protection class IP69K, in screwed state IP69K, in screwed state CF.INI-P4-M8-BG-5 MAT9043729 4x0.34 5.0 5
Mechanical service life max. 100 insertion cycles max. 100 insertion cycles CF.INI-P4-M8-BG-7 MAT9043730 4x0.34 5.0 7
CF.INI-P4-M8-BG-10 MAT9043731 4x0.34 5.0 10
Technical data CF.INI-P4-M8-BG-15 MAT9049466 4x0.34 5.0 15
Design Coupling Connector Angled socket M8/
Connector Coupling, M8 x 1 Connector, M8 x 1 open cable end
Handle base Plastic, PP, black Plastic, PP, black
Union nut/screw Metal, CuZn, nickel-plated Metal, CuZn, nickel-plated CF.INI-P3-M8-BW-3 MAT9043724 3x0.25 4.5 3
Contact base Plastic, PP, black Plastic, PP, black CF.INI-P3-M8-BW-5 MAT9043725 3x0.25 4.5 5
Contacts Metal, CuZn, gold-plated Metal, CuZn, gold-plated CF.INI-P3-M8-BW-7 MAT9043726 3x0.25 4.5 7
Seal Plastic, FPM (Viton) CF.INI-P3-M8-BW-10 MAT9043727 3x0.25 4.5 10
CF.INI-P3-M8-BW-15 MAT9049419 3x0.25 4.5 15
CF.INI-P4-M8-BW-3 MAT9043732 4x0.34 5.0 3
Harnessed with these connectors CF.INI-P4-M8-BW-5 MAT9043733 4x0.34 5.0 5
CF.INI-P4-M8-BW-7 MAT9043734 4x0.34 5.0 7
CF.INI-P4-M8-BW-10 MAT9043735 4x0.34 5.0 10
CF.INI-P4-M8-BW-15 MAT9049467 4x0.34 5.0 15
Cable socket Linking cable M8
M8-BG
M8 cable socket/
M8 cable connector

CF.INI-P3-M8-BG/M8-SG-2 MAT90410324 1) 3x0.25 4.5 2
CF.INI-P3-M8-BG/M8-SG-5 MAT90410325 1) 3x0.25 4.5 5
CF.INI-P3-M8-BG/M8-SG-10 MAT90410326 1) 3x0.25 4.5 10
Cable connector CF.INI-P4-M8-BG/M8-SG-2 MAT90410333 1) 4x0.34 5.0 2
M8-SG
CF.INI-P4-M8-BG/M8-SG-5 MAT90410334 1) 4x0.34 5.0 5
CF.INI-P4-M8-BG/M8-SG-10 MAT90410335 1) 4x0.34 5.0 10

Angled socket M8/
cable connector M8

CF.INI-P3-M8-BW/M8-SG-2 MAT90410330 1) 3x0.25 4.5 2
Angled socket CF.INI-P3-M8-BW/M8-SG-5 MAT90410331 1) 3x0.25 4.5 5
M8-BW
CF.INI-P3-M8-BW/M8-SG-10 MAT90410332 1) 3x0.25 4.5 10
CF.INI-P4-M8-BW/M8-SG-2 MAT90410336 1) 4x0.34 5.0 2
CF.INI-P4-M8-BW/M8-SG-5 MAT90410337 1) 4x0.34 5.0 5
CF.INI-P4-M8-BW/M8-SG-10 MAT90410338 1) 4x0.34 5.0 10
1) Delivery time upon request

ASEAN2023 ASEAN2023 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Also sold by the meter to your required length, unassembled.
®
530 EPLAN download, configurators  www.igus-asean.com/CFINI igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 531
