CF.INI. CF.INI.
CF9 CF9
M12 M12

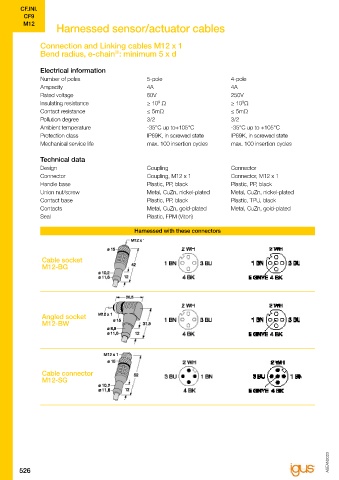

Harnessed sensor/actuator cables

Connection and Linking cables M12 x 1 Type Part No. Number of cores and conductor Ø Cable
®
Bend radius, e-chain : minimum 5 x d nominal cross section length
[mm²] [mm] [m]
Electrical information Connection cable M12
Number of poles 5-pole 4-pole Cable socket M12/
Ampacity 4A 4A open cable end
Rated voltage 60V 250V
9
9
Insulating resistance ≥ 10 Ω ≥ 10 Ω CF.INI-P4-M12-BG-3 MAT9043700 4x0.34 5.0 3
Contact resistance ≤ 5mΩ ≤ 5mΩ CF.INI-P4-M12-BG-5 MAT9043701 4x0.34 5.0 5
Pollution degree 3/2 3/2 CF.INI-P4-M12-BG-7 MAT9043702 4x0.34 5.0 7
Ambient temperature -35°C up to+105°C -35°C up to +105°C CF.INI-P4-M12-BG-10 MAT9043703 4x0.34 5.0 10
Protection class IP69K, in screwed state IP69K, in screwed state CF.INI-P4-M12-BG-15 MAT9049426 4x0.34 5.0 15
Mechanical service life max. 100 insertion cycles max. 100 insertion cycles CF.INI-P5-M12-BG-3 MAT9043737 5x0.34 5.5 3
CF.INI-P5-M12-BG-5 MAT9043738 5x0.34 5.5 5
Technical data CF.INI-P5-M12-BG-7 MAT9043739 5x0.34 5.5 7
Design Coupling Connector CF.INI-P5-M12-BG-10 MAT9043740 5x0.34 5.5 10
Connector Coupling, M12 x 1 Connector, M12 x 1 CF.INI-P5-M12-BG-15 MAT90410077 5x0.34 5.5 15
Handle base Plastic, PP, black Plastic, PP, black Angled socket M21/
Union nut/screw Metal, CuZn, nickel-plated Metal, CuZn, nickel-plated open cable end
Contact base Plastic, PP, black Plastic, TPU, black
Contacts Metal, CuZn, gold-plated Metal, CuZn, gold-plated CF.INI-P4-M12-BW-3 MAT9043704 4x0.34 5.0 3
Seal Plastic, FPM (Viton) CF.INI-P4-M12-BW-5 MAT9043705 4x0.34 5.0 5
CF.INI-P4-M12-BW-7 MAT9043706 4x0.34 5.0 7
Harnessed with these connectors CF.INI-P4-M12-BW-10 MAT9043707 4x0.34 5.0 10
CF.INI-P4-M12-BW-15 MAT9049430 4x0.34 5.0 15
CF.INI-P5-M12-BW-3 MAT9043742 5x0.34 5.5 3
CF.INI-P5-M12-BW-5 MAT9043743 5x0.34 5.5 5
Cable socket CF.INI-P5-M12-BW-7 MAT9043744 5x0.34 5.5 7
M12-BG
CF.INI-P5-M12-BW-10 MAT9043745 5x0.34 5.5 10
CF.INI-P5-M12-BW-15 MAT90410078 5x0.34 5.5 15
Linking cable M12

Cable socket M12/
cable connector M12
Angled socket CF.INI-P4-M12-BG/M12-SG-2 MAT90410312 1) 4x0.34 5.0 2
M12-BW
CF.INI-P4-M12-BG/M12-SG-5 MAT90410313 1) 4x0.34 5.0 5
CF.INI-P4-M12-BG/M12-SG-10 MAT90410314 1) 4x0.34 5.0 10
CF.INI-P5-M12-BG/M12-SG-2 MAT90410339 1) 5x0.34 5.5 2
CF.INI-P5-M12-BG/M12-SG-5 MAT90410340 1) 5x0.34 5.5 5
CF.INI-P5-M12-BG/M12-SG-10 MAT90410341 1) 5x0.34 5.5 10

Cable connector Cable socket M12/
M12-SG cable connector M12

CF.INI-P4-M12-BW/M12-SG-2 MAT90410315 1) 4x0.34 5.0 2
CF.INI-P4-M12-BW/M12-SG-5 MAT90410316 1) 4x0.34 5.0 5
CF.INI-P4-M12-BW/M12-SG-10 MAT90410317 1) 4x0.34 5.0 10
CF.INI-P5-M12-BW/M12-SG-2 MAT90410342 1) 5x0.34 5.5 2
CF.INI-P5-M12-BW/M12-SG-5 MAT90410343 1) 5x0.34 5.5 5
CF.INI-P5-M12-BW/M12-SG-10 MAT90410344 1) 5x0.34 5.5 10
1) Delivery time upon request

ASEAN2023 ASEAN2023 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Also sold by the meter to your required length, unassembled.
®
526 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 527
