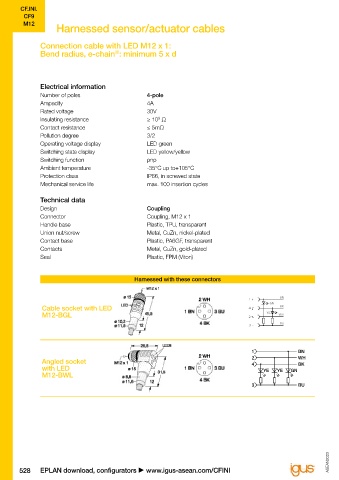

Harnessed sensor/actuator cables

Connection cable with LED M12 x 1: Type Part No. Number of cores and conductor Ø Cable
®
Bend radius, e-chain : minimum 5 x d nominal cross section length
[mm²] [mm] [m]
Connection cable M12

Cable socket M12 with LED/
Electrical information open cable end
Number of poles 4-pole
Ampacity 4A CF.INI-P4-M12-BGL2-3 MAT9043708 4x0.34 5.0 3
Rated voltage 30V CF.INI-P4-M12-BGL2-5 MAT9043709 4x0.34 5.0 5
9
Insulating resistance ≥ 10 Ω CF.INI-P4-M12-BGL2-7 MAT9043710 4x0.34 5.0 7
Contact resistance ≤ 5mΩ CF.INI-P4-M12-BGL2-10 MAT9043711 4x0.34 5.0 10
Pollution degree 3/2 CF.INI-P4-M12-BGL2-15 MAT90410087 4x0.34 5.0 15
Operating voltage display LED green Angled socket M12 with LED/
Switching state display LED yellow/yellow open cable end
Switching function pnp
Ambient temperature -35°C up to+105°C CF.INI-P4-M12-BWL3-3 MAT9043712 4x0.34 5.0 3
Protection class IP66, in screwed state CF.INI-P4-M12-BWL3-5 MAT9043713 4x0.34 5.0 5
Mechanical service life max. 100 insertion cycles CF.INI-P4-M12-BWL3-7 MAT9043714 4x0.34 5.0 7
CF.INI-P4-M12-BWL3-10 MAT9043715 4x0.34 5.0 10
Technical data CF.INI-P4-M12-BWL3-15 MAT90410088 4x0.34 5.0 15
Design Coupling
Connector Coupling, M12 x 1 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Also sold by the meter to your required length, unassembled.
Handle base Plastic, TPU, transparent igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
Union nut/screw Metal, CuZn, nickel-plated
Contact base Plastic, PA6GF, transparent
Contacts Metal, CuZn, gold-plated
Seal Plastic, FPM (Viton)

Harnessed with these connectors

Cable socket with LED
M12-BGL

1 BN
2 WH
Angled socket 4 BK
with LED YE YE GN
M12-BWL

3 BU
