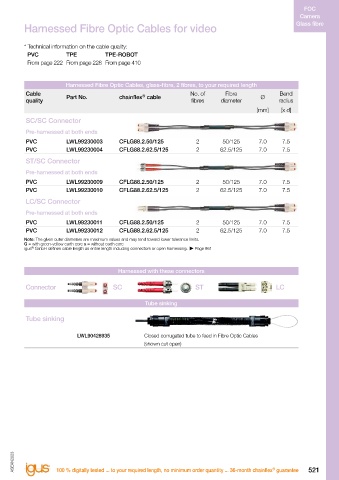

Harnessed Fibre Optic Cables for video Harnessed Fibre Optic Cables for video

* Technical information on the cable quality: * Technical information on the cable quality:
PVC TPE TPE-ROBOT PVC TPE TPE-ROBOT
From page 222 From page 228 From page 410 From page 222 From page 228 From page 410

Harnessed Fibre Optic Cables, glass-fibre, 2 fibres, to your required length Harnessed Fibre Optic Cables, glass-fibre, 2 fibres, to your required length
Cable Part No. chainflex cable No. of Fibre Ø Bend Cable Part No. chainflex cable No. of Fibre Ø Bend
®
®
quality fibres diameter radius quality fibres diameter radius
[mm] [x d] [mm] [x d]
ST/ST Connector SC/SC Connector
Pre-harnessed at both ends Pre-harnessed at both ends
PVC LWL99230001 CFLG88.2.50/125 2 50/125 7.0 7.5 PVC LWL99230003 CFLG88.2.50/125 2 50/125 7.0 7.5
PVC LWL99230002 CFLG88.2.62.5/125 2 62.5/125 7.0 7.5 PVC LWL99230004 CFLG88.2.62.5/125 2 62.5/125 7.0 7.5
TPE H* LWL90412394 CFLG.2LB.50/125 2 50/125 8.5 5 ST/SC Connector
TPE H* LWL90412397 CFLG.2LB.62.5/125 2 62.5/125 8.5 5
TPE H* LWL9040086 CFLG.4LB.50/125 4 50/125 9.0 5 Pre-harnessed at both ends
TPE H* LWL9040085 CFLG.4LB.62.5/125 4 62.5/125 9.0 5 PVC LWL99230009 CFLG88.2.50/125 2 50/125 7.0 7.5
TPE Robot LWL90422492 CFROBOT5.501 2 50/125 8.5 10 PVC LWL99230010 CFLG88.2.62.5/125 2 62.5/125 7.0 7.5
TPE Robot LWL90422495 CFROBOT5.500 2 62.5/125 8.5 10
LC/SC Connector
ST/LC Connector
Pre-harnessed at both ends
Pre-harnessed at both ends PVC LWL99230011 CFLG88.2.50/125 2 50/125 7.0 7.5
PVC LWL99230007 CFLG88.2.50/125 2 50/125 7.0 7.5 PVC LWL99230012 CFLG88.2.62.5/125 2 62.5/125 7.0 7.5
PVC LWL99230008 CFLG88.2.62.5/125 2 62.5/125 7.0 7.5 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
TPE H* LWL90412393 1) CFLG.2LB.50/125 2 50/125 8.5 5 G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
TPE H* LWL90412396 1) CFLG.2LB.62.5/125 2 62.5/125 8.5 5
TPE H* LWL9040093 CFLG.4LB.50/125 4 50/125 9.0 5
TPE H* LWL9040094 CFLG.4LB.62.5/125 4 62.5/125 9.0 5 Harnessed with these connectors
TPE Robot LWL90422491 1) CFROBOT5.501 2 50/125 8.5 10
TPE Robot LWL90422494 CFROBOT5.500 2 62.5/125 8.5 10 Connector SC ST LC
LC/LC Connector
Tube sinking
Pre-harnessed at both ends
PVC LWL99230005 CFLG88.2.50/125 2 50/125 7.0 7.5 Tube sinking
PVC LWL99230006 CFLG88.2.62.5/125 2 62.5/125 7.0 7.5
TPE H* LWL90412395 CFLG.2LB.50/125 2 50/125 8.5 5 LWL90428935 Closed corrugated tube to feed in Fibre Optic Cables
TPE H* LWL90412398 CFLG.2LB.62.5/125 2 62.5/125 8.5 5 (shown cut open)
TPE H* LWL90425050 CFLG.4LB.50/125 4 50/125 9.0 5
TPE H* LWL9040092 CFLG.4LB.62.5/125 4 62.5/125 9.0 5
TPE Robot LWL90422493 CFROBOT5.501 2 50/125 8.5 10
TPE Robot LWL90422496 CFROBOT5.500 2 62.5/125 8.5 10
1) When installing this cable as an extension, 2 ST connectors (MAT0176314) must also be ordered.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
