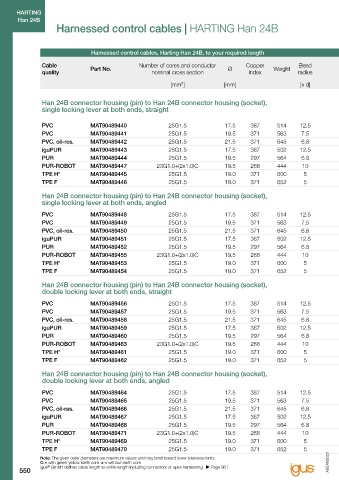

Harnessed control cables | HARTING Han 24B

Harnessed control cables, Harting Han 24B, to your required length
Insert 1 Housing 1 Insert 2 Housing 2
Cable Part No. Number of cores and conductor Ø Copper Weight Bend chainflex HARTING HARTING HARTING HARTING
®
quality nominal cross section index radius cable
Part No. Part No. Part No. Part No.
[mm²] [mm] [x d]

Han 24B connector housing (pin) to Han 24B connector housing (socket),
single locking lever at both ends, straight

PVC MAT90489440 25G1.5 17.5 387 514 12.5 CF880.15.25 09330242702 19300241442 09330242602 19300241442
PVC MAT90489441 25G1.5 19.5 371 563 7.5 CF130.15.25.UL 09330242702 19300241442 09330242602 19300241442
PVC, oil-res. MAT90489442 25G1.5 21.5 371 645 6.8 CF5.15.25 09330242702 19300241442 09330242602 19300241442
iguPUR MAT90489443 25G1.5 17.5 387 502 12.5 CF890.15.25 09330242702 19300241442 09330242602 19300241442
PUR MAT90489444 25G1.5 19.5 297 564 6.8 CF77.UL.15.25.D 09330242702 19300241442 09330242602 19300241442
PUR-ROBOT MAT90489447 23G1.0+(2x1.0)C 19.5 268 444 10 CFROBOT9.005 09330242702 19300241442 09330242602 19300241442
TPE H* MAT90489445 25G1.5 19.0 371 600 5 CF9.15.25 09330242702 19300241442 09330242602 19300241442
TPE F MAT90489446 25G1.5 19.0 371 652 5 CF9.UL.15.25 09330242702 19300241442 09330242602 19300241442

Han 24B connector housing (pin) to Han 24B connector housing (socket),
single locking lever at both ends, angled
PVC MAT90489448 25G1.5 17.5 387 514 12.5 CF880.15.25 09330242702 19300241542 09330242602 19300241542
PVC MAT90489449 25G1.5 19.5 371 563 7.5 CF130.15.25.UL 09330242702 19300241542 09330242602 19300241542
PVC, oil-res. MAT90489450 25G1.5 21.5 371 645 6.8 CF5.15.25 09330242702 19300241542 09330242602 19300241542
iguPUR MAT90489451 25G1.5 17.5 387 502 12.5 CF890.15.25 09330242702 19300241542 09330242602 19300241542
PUR MAT90489452 25G1.5 19.5 297 564 6.8 CF77.UL.15.25.D 09330242702 19300241542 09330242602 19300241542
PUR-ROBOT MAT90489455 23G1.0+(2x1.0)C 19.5 268 444 10 CFROBOT9.005 09330242702 19300241542 09330242602 19300241542
TPE H* MAT90489453 25G1.5 19.0 371 600 5 CF9.15.25 09330242702 19300241542 09330242602 19300241542
TPE F MAT90489454 25G1.5 19.0 371 652 5 CF9.UL.15.25 09330242702 19300241542 09330242602 19300241542
Han 24B connector housing (pin) to Han 24B connector housing (socket),
double locking lever at both ends, straight

PVC MAT90489456 25G1.5 17.5 387 514 12.5 CF880.15.25 09330242702 19300241422 09330242602 19300241422
PVC MAT90489457 25G1.5 19.5 371 563 7.5 CF130.15.25.UL 09330242702 19300241422 09330242602 19300241422
PVC, oil-res. MAT90489458 25G1.5 21.5 371 645 6.8 CF5.15.25 09330242702 19300241422 09330242602 19300241422
iguPUR MAT90489459 25G1.5 17.5 387 502 12.5 CF890.15.25 09330242702 19300241422 09330242602 19300241422
PUR MAT90489460 25G1.5 19.5 297 564 6.8 CF77.UL.15.25.D 09330242702 19300241422 09330242602 19300241422
PUR-ROBOT MAT90489463 23G1.0+(2x1.0)C 19.5 268 444 10 CFROBOT9.005 09330242702 19300241422 09330242602 19300241422
TPE H* MAT90489461 25G1.5 19.0 371 600 5 CF9.15.25 09330242702 19300241422 09330242602 19300241422
TPE F MAT90489462 25G1.5 19.0 371 652 5 CF9.UL.15.25 09330242702 19300241422 09330242602 19300241422

Han 24B connector housing (pin) to Han 24B connector housing (socket),
double locking lever at both ends, angled

PVC MAT90489464 25G1.5 17.5 387 514 12.5 CF880.15.25 09330242702 19300241522 09330242602 19300241522
PVC MAT90489465 25G1.5 19.5 371 563 7.5 CF130.15.25.UL 09330242702 19300241522 09330242602 19300241522
PVC, oil-res. MAT90489466 25G1.5 21.5 371 645 6.8 CF5.15.25 09330242702 19300241522 09330242602 19300241522
iguPUR MAT90489467 25G1.5 17.5 387 502 12.5 CF890.15.25 09330242702 19300241522 09330242602 19300241522
PUR MAT90489468 25G1.5 19.5 297 564 6.8 CF77.UL.15.25.D 09330242702 19300241522 09330242602 19300241522
PUR-ROBOT MAT90489471 23G1.0+(2x1.0)C 19.5 268 444 10 CFROBOT9.005 09330242702 19300241522 09330242602 19300241522
TPE H* MAT90489469 25G1.5 19.0 371 600 5 CF9.15.25 09330242702 19300241522 09330242602 19300241522
TPE F MAT90489470 25G1.5 19.0 371 652 5 CF9.UL.15.25 09330242702 19300241522 09330242602 19300241522
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core ASEAN2023 ASEAN2023
®
550 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 551
®
