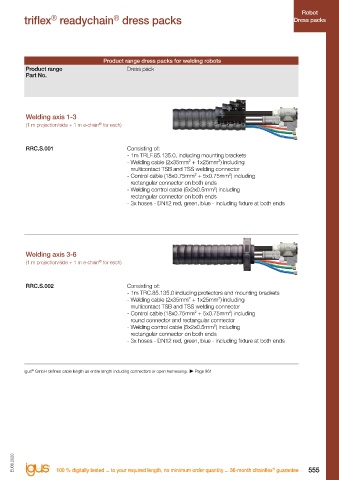

Page 561 - ASEAN Chainflex Catalogue 2023

Robot Robot
®
®
®
Dress packs readychain Robot triflex readychain dress packs Dress packs
®
Ready-to-install harnessed e-chain systems for robots

®
Assembled energy supply systems, connectors and cables from igus . Everything Product range dress packs for welding robots
from one source. Directly from the manufacturer. Quick delivery to your robot, Product range Dress pack
delivered in 1-10 days Part No.

readychain for axis 7 readychain for axis 2-6
®
®
e-chain + cable + Dress packs Welding axis 1-3
®
®
connector harnessed preharnessed including (1 m projection/side + 1 m e-chain for each)
according to twistable cables and
manufacturer standard connectors according
Including igus to your requirements RRC.S.001 Consisting of:
®
- 1m TRLF.85.135.0, including mounting brackets
guide troughs and One part number for - Welding cable (2x35mm² + 1x25mm²) including
other accessories complete system multicontact TSB and TSS welding connector
- Control cable (18x0.75mm² + 5x0.75mm²) including
readychain for axis 1 rectangular connector on both ends
®
®
Ready to fit twisterchain - Welding control cable (5x2x0.5mm²) including
rectangular connector on both ends
or RBR e-chains ® - 3x hoses - DN12 red, green, blue - including fixture at both ends
®
Including igus standard
or special trough

Welding axis 3-6
(1 m projection/side + 1 m e-chain for each)
®
Additional services for you
Survey of existing systems on your robot by our sales engineers
Optional system guarantee RRC.S.002 Consisting of:
- 1m TRC.85.135.0 including protectors and mounting brackets
®
Worldwide readychain specialists and 11 production sites for fast maintenance and spare part support - Welding cable (2x35mm² + 1x25mm²) including
multicontact TSB and TSS welding connector
- Control cable (18x0.75mm² + 5x0.75mm²) including
Moving energy made easy – even for robot applications round connector and rectangular connector

®
The modular igus robot construction kit comprises over 5,000 different items. We can offer you the optimum, customised solution for almost any - Welding control cable (5x2x0.5mm²) including
rectangular connector on both ends
robot application. Our "Quick Robot" online tool can be used to create the ideal configuration in seconds – try it for yourself:
- 3x hoses - DN12 red, green, blue - including fixture at both ends
www.igus-asean.com/quickrobot
®
All igus robotic components are tested in our laboratory and have already been reliably used in real applications for many years. Our primary
aim is to design a reliable energy supply system for your robot. We do not simply focus on mechanical protection but instead look at the entire
application including the cables that have been specially developed for use on the robot. We will gladly find a solution for your application too – and igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
look forward to receiving your enquiry.

Matthias Meyer
Head of Industry Management
Automotive & Robotics
Phone.: +49-2203 9649-161
mmeyer@igus.de

EU06.2020 EU06.2020

554 EPLAN download, configurators  www.igus-asean.com/robotics 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 555
®
