Robot Robot

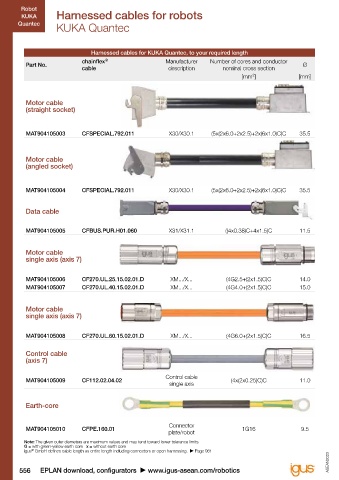

KUKA Harnessed cables for robots Direct connection cables for robots KUKA
Quantec Quantec
KUKA Quantec KUKA Quantec

Harnessed cables for KUKA Quantec, to your required length Direct connection cables for KUKA Quantec, to your required length
chainflex Manufacturer Number of cores and conductor chainflex Number of cores and conductor
®
®
Part No. Ø Part No. Ø
cable description nominal cross section cable nominal cross section
[mm²] [mm] [mm²] [mm]

Motor cable Motor cable
(straight socket) (direct connection cable)

MAT904105003 CFSPECIAL.792.011 X30/X30.1 (5x(2x6.0+2x2.5)+2x(6x1.0)C)C 35.5 MAT904141225 CFSPECIAL.792.011 (5x(2x6.0+2x2.5)+2x(6x1.0)C)C 35.5

Motor cable
Motor cable (direct connection cable)
(angled socket)

MAT904141226 CFSPECIAL.792.011 (5x(2x6.0+2x2.5)+2x(6x1.0)C)C 35.5
MAT904105004 CFSPECIAL.792.011 X30/X30.1 (5x(2x6.0+2x2.5)+2x(6x1.0)C)C 35.5
Signal cable
(direct connection cable)
Data cable

MAT904141227 CFBUS.PUR.H01.060 ((4x0.38)C+4x1.5)C 11.5
MAT904105005 CFBUS.PUR.H01.060 X31/X31.1 ((4x0.38)C+4x1.5)C 11.5 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
Motor cable
single axis (axis 7)

MAT904105006 CF270.UL.25.15.02.01.D XM.../X... (4G2.5+(2x1.5)C)C 14.0
MAT904105007 CF270.UL.40.15.02.01.D XM.../X... (4G4.0+(2x1.5)C)C 15.0

Motor cable
single axis (axis 7)

MAT904105008 CF270.UL.60.15.02.01.D XM.../X... (4G6.0+(2x1.5)C)C 16.5

Control cable
(axis 7)

Control cable
MAT904105009 CF112.02.04.02 (4x(2x0.25)C)C 11.0
single axis

Earth-core

Connector
MAT904105010 CFPE.160.01 1G16 9.5
plate/robot
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
ASEAN2023 ASEAN2023
556 EPLAN download, configurators  www.igus-asean.com/ robotics 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 557
®
