Robot Robot
Fanuc Harnessed cables for robots Direct connection cables for robots Fanuc
M-900iB M-900iB
Fanuc M-900iB Fanuc M-900iB

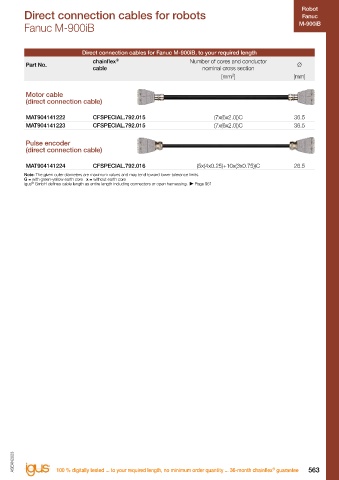

Harnessed cables for Fanuc M-900iB, to your required length Direct connection cables for Fanuc M-900iB, to your required length
chainflex Manufacturer Number of cores and conductor chainflex Number of cores and conductor
®
®
Part No. Ø Part No. Ø
cable description nominal cross section cable nominal cross section
[mm²] [mm] [mm²] [mm]
Motor cable Motor cable
(Extension cable axis 7) (direct connection cable)

MAT904117141 CFSPECIAL.792.015 RM1.2 (7x(6x2.0))C 36.5 MAT904141222 CFSPECIAL.792.015 (7x(6x2.0))C 36.5
MAT904141223 CFSPECIAL.792.015 (7x(6x2.0))C 36.5
Motor cable
(Extension cable axis 7) Pulse encoder
(direct connection cable)
MAT904117142 CFSPECIAL.792.015 RM2.2 (7x(6x2.0))C 36.5
MAT904141224 CFSPECIAL.792.016 (5x(4x0.25)+10x(3x0.75))C 26.5
Pulse encoder Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
(Extension cable axis 7) G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
MAT904117143 CFSPECIAL.792.016 RP1.2 (5x(4x0.25)+10x(3x0.75))C 26.5

Earth-core
(Extension cable axis 7)

MAT904117144 CFPE.160.01 Earth-core 1G16 9.5

Earth-core
(Extension cable axis 7)

MAT904117145 CFPE.60.01 Earth-core 1G6.0 7.0

Motor cable
single axis (axis 7)

MAT904117146 CF270.UL.60.15.02.01.D RM7.2 (4G6.0+(2x1.5)C)C 16.5

Pulse encoder
single axis (axis 7)

MAT904117147 CF240.PUR.03.03 RP7.2 (3x0.34)C 5.0
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
