Robot Harnessed cables for robots Direct connection cables for robots Robot
ABB ABB
ABB IRB 6620, IRB 6640, IRB 6650S, IRB 7600 ABB IRB 6620, IRB 6640, IRB 6650S, IRB 7600

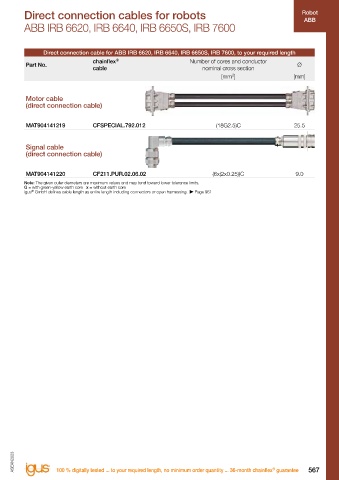

Harnessed cables for ABB IRB 6620, IRB 6640, IRB 6650S, IRB 7600, to your desired length Direct connection cable for ABB IRB 6620, IRB 6640, IRB 6650S, IRB 7600, to your required length
chainflex Manufacturer Number of cores and conductor chainflex Number of cores and conductor
®
®
Part No. Ø Part No. Ø
cable description nominal cross section cable nominal cross section
[mm²] [mm] [mm²] [mm]

Power cable Motor cable
(direct connection cable)

MAT904128539 CFSPECIAL.792.012 R1MP (18G2.5)C 25.5 MAT904141219 CFSPECIAL.792.012 (18G2.5)C 25.5

Signal cable
Signal cable
(direct connection cable)

MAT904128540 CF211.PUR.02.06.02 R1.SMB (6x(2x0.25))C 9.0 MAT904141220 CF211.PUR.02.06.02 (6x(2x0.25))C 9.0

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
®
Power cable igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961

MAT904128547 CF270.UL.40.15.02.02.D (4G4.0+2x(2x1.5)C)C 17.0

Resolver cable

MAT904128548 CF211.PUR.02.03.02 (3x(2x0.25))C 7.0

Earth-core
(Extension cable axis 7)

MAT904117144 CFPE.160.01 Earth-core 1G16 9.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®

ASEAN2023 ASEAN2023

566 EPLAN download, configurators  www.igus-asean.com/ robotics 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 567
®
