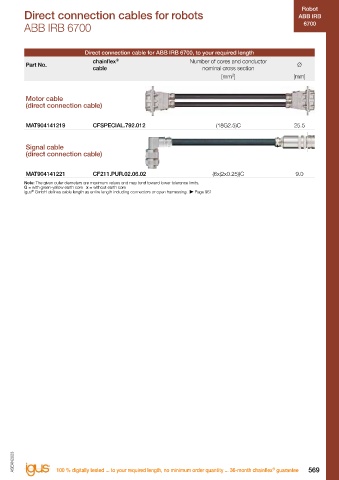

Page 575 - ASEAN Chainflex Catalogue 2023

Robot Robot
ABB IRB Harnessed cables for robots Direct connection cables for robots ABB IRB
6700 6700
ABB IRB 6700 ABB IRB 6700

Harnessed cables for ABB IRB 6700, to your desired length Direct connection cable for ABB IRB 6700, to your required length
chainflex Manufacturer Number of cores and conductor chainflex Number of cores and conductor
®
®
Part No. Ø Part No. Ø
cable description nominal cross section cable nominal cross section
[mm²] [mm] [mm²] [mm]

Power cable Motor cable
(direct connection cable)

MAT904128539 CFSPECIAL.792.012 R1MP (18G2.5)C 25.5 MAT904141219 CFSPECIAL.792.012 (18G2.5)C 25.5

Signal cable
Signal cable
(direct connection cable)

MAT904128541 CF211.PUR.02.06.02 R1.SMB (6x(2x0.25))C 9.0 MAT904141221 CF211.PUR.02.06.02 (6x(2x0.25))C 9.0

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
®
Power cable igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961

MAT904128547 CF270.UL.40.15.02.02.D (4G4.0+2x(2x1.5)C)C 17.0

Resolver cable

MAT904128548 CF211.PUR.02.03.02 (3x(2x0.25))C 7.0

Earth-core
(Extension cable axis 7)

MAT904117144 CFPE.160.01 Earth-core 1G16 9.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
