Robot Robot

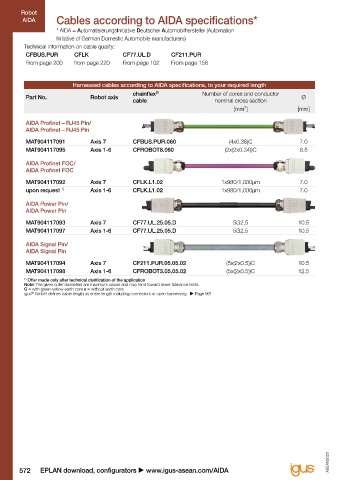

AIDA Cables according to AIDA specifications* Cables according to AIDA specifications* AIDA
* AIDA = AutomatisierungsInitiative Deutscher Automobilhersteller (Automation * AIDA = AutomatisierungsInitiative Deutscher Automobilhersteller (Automation
Initiative of German Domestic Automobile manufacturers) Initiative of German Domestic Automobile manufacturers)
Technical information on cable quality: Technical information on cable quality:
CFBUS.PUR CFLK CF77.UL.D CF211.PUR CFBUS.PUR CFLK CF77.UL.D CF211.PUR
From page 200 from page 220 From page 102 From page 158 From page 200 from page 220 From page 102 From page 158

Harnessed cables according to AIDA specifications, to your required length Harnessed extension cables according to AIDA specifications, to your required length
®
®
chainflex Number of cores and conductor chainflex Number of cores and conductor
Part No. Robot axis Ø Part No. Robot axis Ø
cable nominal cross section cable nominal cross section
[mm²] [mm] [mm²] [mm]
AIDA Profinet – RJ45 Pin/ AIDA Profinet – RJ45 Socket/
AIDA Profinet – RJ45 Pin AIDA Profinet – RJ45 Pin
MAT904117091 Axis 7 CFBUS.PUR.060 (4x0.38)C 7.0 MAT904152118 Axis 7 CFBUS.PUR.060 (4x0.38)C 7.0
MAT904117095 Axis 1-6 CFROBOT8.060 (2x(2x0.34))C 8.5 MAT904152121 Axis 1-6 CFROBOT8.060 (2x(2x0.34))C 8.5

AIDA Profinet FOC/ AIDA Profinet – RJ45 Socket/
AIDA Profinet FOC AIDA Profinet – RJ45 Socket

MAT904117092 Axis 7 CFLK.L1.02 1x980/1,000 µm 7.0 MAT904151684 Axis 7 CFBUS.PUR.060 (4x0.38)C 7.0
upon request 1) Axis 1-6 CFLK.L1.02 1x980/1,000µm 7.0 MAT904151687 Axis 1-6 CFROBOT8.060 (2x(2x0.34))C 8.5

AIDA Power Pin/ AIDA Power Socket/
AIDA Power Pin AIDA Power Pin

MAT904117093 Axis 7 CF77.UL.25.05.D 5G2.5 10.5 MAT904152119 Axis 7 CF77.UL.25.05.D 5G2.5 10.0
MAT904117097 Axis 1-6 CF77.UL.25.05.D 5G2.5 10.5 MAT904152122 Axis 1-6 CF77.UL.25.05.D 5G2.5 10.0

AIDA Signal Pin/ AIDA Power Socket/
AIDA Signal Pin AIDA Power Socket

MAT904117094 Axis 7 CF211.PUR.05.05.02 (5x(2x0.5))C 10.5 MAT904151685 Axis 7 CF77.UL.25.05.D 5G2.5 10.0
MAT904117098 Axis 1-6 CFROBOT3.05.05.02 (5x(2x0.5))C 12.5 MAT904151688 Axis 1-6 CF77.UL.25.05.D 5G2.5 10.0
1) Offer made only after technical clarification of the application
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. AIDA Signal Socket/
G = with green-yellow earth core x = without earth core AIDA Signal Pin
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
MAT904152120 Axis 7 CF211.PUR.05.05.02 5x(2x0.5))C 11.0
MAT904152123 Axis 1-6 CFROBOT3.05.05.02 5x(2x0.5))C 11.0
AIDA Signal Socket/
AIDA Signal Socket
MAT904151686 Axis 7 CF211.PUR.05.05.02 5x(2x0.5))C 11.0
MAT904151689 Axis 1-6 CFROBOT3.05.05.02 5x(2x0.5))C 11.0
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961

ASEAN2023 ASEAN2023

572 EPLAN download, configurators  www.igus-asean.com/AIDA 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 573
®
