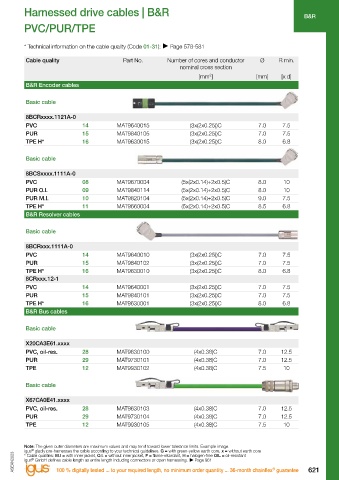

Page 627 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | B&R Harnessed drive cables | B&R
B&R B&R
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
B&R Hybrid servo cables B&R Encoder cables

Basic cable
Basic cable
8BCRxxxx.1121A-0
8BCHxxxx.1111A-0 PVC 14 MAT9640015 (3x(2x0.25))C 7.0 7.5
(4G1.5+(2x0.75)C PUR 15 MAT9840105 (3x(2x0.25))C 7.0 7.5
PUR O.I. 27 MAT9850113 15.0 10
+(2x2x0.14+2x0.25)C)C TPE H* 16 MAT9630015 (3x(2x0.25))C 8.0 6.8
8BCHxxxx.1312A-0
(4G4.0+(2x1.0)C Basic cable
PUR O.I. 27 MAT9850110 16.5 10
+(2x2x0.14+2x0.25)C)C
8CHxxxx.1111A-0 8BCSxxxx.1111A-0
(4G1.5+(2x0.75)C PVC 08 MAT9670004 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 27 MAT9850112 15.0 10
+(2x2x0.14+2x0.25)C)C PUR O.I. 09 MAT9840114 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9820104 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9660004 (5x(2x0.14)+2x0.5)C 8.5 6.8
Basic cable
B&R Resolver cables

8ECHxxxx.1111A-0 Basic cable
(4G1.5+(2x0.75)C
PUR O.I. 27 MAT9850114 +(2x2x0.14+2x0.25)C)C 15.0 10 8BCRxxx.1111A-0
PVC 14 MAT9640010 (3x(2x0.25))C 7.0 7.5
Extension cable PUR 15 MAT9840102 (3x(2x0.25))C 7.0 7.5
TPE H* 16 MAT9630010 (3x(2x0.25))C 8.0 6.8
8ECH00xx.11140-0 8CRxxx.12-1
(4G1.5+(2x0.75)C PVC 14 MAT9640001 (3x(2x0.25))C 7.0 7.5
PUR O.I. 27 MAT9850117 15.0 10
+(2x2x0.14+2x0.25)C)C PUR 15 MAT9840101 (3x(2x0.25))C 7.0 7.5
B&R EnDat cables TPE H* 16 MAT9630001 (3x(2x0.25))C 8.0 6.8
B&R Bus cables
Basic cable
Basic cable
8BCExxxx.1111A-0
PVC 08 MAT9670002 (5x(2x0.14)+2x0.5)C 8.0 10 X20CA3E61.xxxx
PUR M.I. 10 MAT9820102 (5x(2x0.14)+2x0.5)C 9.0 7.5 PVC, oil-res. 28 MAT9630100 (4x0.38)C 7.0 12.5
TPE H* 11 MAT9660002 (5x(2x0.14)+2x0.5)C 8.5 6.8 PUR 29 MAT9730101 (4x0.38)C 7.0 12.5
8CExxx.12-1 TPE 12 MAT9930102 (4x0.38)C 7.5 10
PVC 08 MAT9670001 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9820101 (5x(2x0.14)+2x0.5)C 9.0 7.5 Basic cable
TPE H* 11 MAT9660001 (5x(2x0.14)+2x0.5)C 8.5 6.8
B&R Encoder cables X67CA0E41.xxxx
PVC, oil-res. 28 MAT9630103 (4x0.38)C 7.0 12.5
Basic cable PUR 29 MAT9730104 (4x0.38)C 7.0 12.5
TPE 12 MAT9930105 (4x0.38)C 7.5 10
8BCFxxxx.1221B-0
PVC 08 MAT9670003 ((4x0.14)+2x(2x0.34))C 7.0 10
PUR O.I. 09 MAT9840103 ((4x0.14)+2x(2x0.34))C 7.0 10 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
ASEAN2023 ASEAN2023 * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
620 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 621
®
