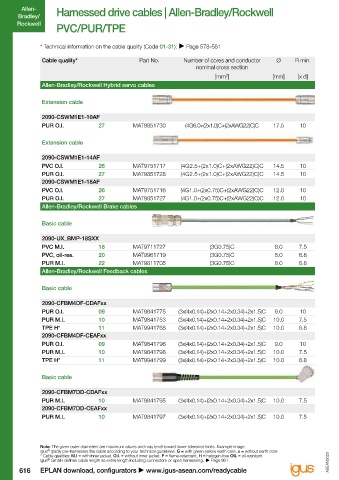

Page 622 - ASEAN Chainflex Catalogue 2023

Allen- Harnessed drive cables | Allen-Bradley/Rockwell Harnessed drive cables | Allen-Bradley/Rockwell Allen-
Bradley/ Bradley/
Rockwell Rockwell
PVC/PUR/TPE PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality* Part No. Number of cores and conductor Ø R min. Cable quality* Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Allen-Bradley/Rockwell Hybrid servo cables Allen-Bradley/Rockwell Feedback cables

Extension cable Basic cable

2090-CSWM1E1-10AF 2090-CFBM7DF-CDAFxx
PUR O.I. 27 MAT9851730 (4G6.0+(2x1.0)C+(2xAWG22)C)C 17.5 10 PUR O.I. 09 MAT9841771 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 10
PUR M.I. 10 MAT9841750 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5
Extension cable TPE H* 11 MAT9941764 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 6.8
2090-CFBM7DF-CEAFxx
2090-CSWM1E1-14AF PUR O.I. 09 MAT9841774 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 10
PVC O.I. 26 MAT9751717 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10 PUR M.I. 10 MAT9841752 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5
PUR O.I. 27 MAT9851728 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10 TPE H* 11 MAT9941767 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 6.8
2090-CSWM1E1-18AF
PVC O.I. 26 MAT9751716 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 Basic cable
PUR O.I. 27 MAT9851727 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10
Allen-Bradley/Rockwell Brake cables 2090-XX_FMF-Sxx
PUR O.I. 09 MAT9941709 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 10
Basic cable PUR M.I. 10 MAT9841770 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5
TPE H* 11 MAT9941763 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 6.8
2090-UX_BMP-18SXX
PVC M.I. 18 MAT9711727 (3G0.75)C 8.0 7.5 Basic cable
PVC, oil-res. 20 MAT9961719 (3G0.75)C 8.0 6.8
PUR M.I. 22 MAT9811705 (3G0.75)C 8.0 6.8 2090-XX_FMP-Sxx
Allen-Bradley/Rockwell Feedback cables PUR O.I. 09 MAT9841769 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 10
PUR M.I. 10 MAT9941704 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5
Basic cable TPE H* 11 MAT9941762 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 6.8

2090-CFBM4DF-CDAFxx Extension cable
PUR O.I. 09 MAT9841775 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 10
PUR M.I. 10 MAT9841753 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5 2090-CFBM7E7-CDAFxx
TPE H* 11 MAT9941768 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 6.8 PUR O.I. 09 MAT9841772 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 10
2090-CFBM4DF-CEAFxx PUR M.I. 10 MAT9841751 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5
PUR O.I. 09 MAT9841796 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 10 TPE H* 11 MAT9941765 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 6.8
PUR M.I. 10 MAT9841798 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5 2090-CFBM7E7-CEAFxx
TPE H* 11 MAT9941799 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 6.8 PUR O.I. 09 MAT9841773 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 10
PUR M.I. 10 MAT9741776 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5
Basic cable TPE H* 11 MAT9941766 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 6.8
Allen-Bradley/Rockwell Adapter cables (transition cables)
2090-CFBM7DD-CDAFxx
PUR M.I. 10 MAT9841795 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5 Basic cable
2090-CFBM7DD-CEAFxx 2090-CFBM4E2-CATR
PUR M.I. 10 MAT9841797 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 10.0 7.5 PUR O.I. 09 MAT9841799 (3x(4x0.14)+(2x0.14+2x0.34)+2x1.5)C 9.0 10

Basic cable

2090-CPWM4E2-14TR
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. PUR O.I. 06 MAT9861792 (4G2.5)C 10.5 10
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023
®
616 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 617
®
