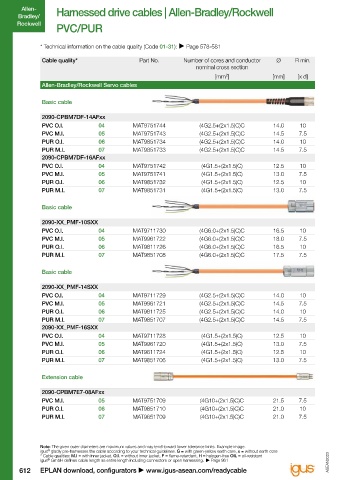

Allen- Harnessed drive cables | Allen-Bradley/Rockwell Harnessed drive cables | Allen-Bradley/Rockwell Allen-
Bradley/ Bradley/
Rockwell Rockwell
PVC/PUR PVC/PUR
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality* Part No. Number of cores and conductor Ø R min. Cable quality* Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Allen-Bradley/Rockwell Servo cables Allen-Bradley/Rockwell Servo cables
2090-CPBM7E7-10AFxx
Basic cable PVC O.I. 04 MAT9751708 (4G6.0+(2x1.5)C)C 16.5 10
PVC M.I. 05 MAT9751707 (4G6.0+(2x1.5)C)C 18.0 7.5
2090-CPBM7DF-14AFxx PUR O.I. 06 MAT9851714 (4G6.0+(2x1.5)C)C 16.5 10
PVC O.I. 04 MAT9751744 (4G2.5+(2x1.5)C)C 14.0 10 PUR M.I. 07 MAT9851713 (4G6.0+(2x1.5)C)C 17.5 7.5
PVC M.I. 05 MAT9751743 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT9851734 (4G2.5+(2x1.5)C)C 14.0 10 Extension cable
PUR M.I. 07 MAT9851733 (4G2.5+(2x1.5)C)C 14.5 7.5
2090-CPBM7DF-16AFxx 2090-CPBM7E7-12AFxx
PVC O.I. 04 MAT9751742 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 04 MAT9751789 (4G2.5+(2x1.5)C)C 14.0 10
PVC M.I. 05 MAT9751741 (4G1.5+(2x1.5)C) 13.0 7.5 PVC M.I. 05 MAT9751790 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT9851732 (4G1.5+(2x1.5)C) 12.5 10 PUR O.I. 06 MAT9851788 (4G2.5+(2x1.5)C)C 14.0 10
PUR M.I. 07 MAT9851731 (4G1.5+(2x1.5)C) 13.0 7.5 PUR M.I. 07 MAT9851789 (4G2.5+(2x1.5)C)C 14.5 7.5
2090-CPBM7E7-14AFxx
Basic cable PVC O.I. 04 MAT9751747 (4G2.5+(2x1.5)C)C 14.0 10
PVC M.I. 05 MAT9751746 (4G2.5+(2x1.5)C)C 14.5 7.5
2090-XX_PMF-10SXX PUR O.I. 06 MAT9851738 (4G2.5+(2x1.5)C)C 14.0 10
PVC O.I. 04 MAT9711730 (4G6.0+(2x1.5)C)C 16.5 10 PUR M.I. 07 MAT9851737 (4G2.5+(2x1.5)C)C 14.5 7.5
PVC M.I. 05 MAT9961722 (4G6.0+(2x1.5)C)C 18.0 7.5 2090-CPBM7E7-16AFxx
PUR O.I. 06 MAT9811726 (4G6.0+(2x1.5)C)C 16.5 10 PVC O.I. 04 MAT9751749 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9851708 (4G6.0+(2x1.5)C)C 17.5 7.5 PVC M.I. 05 MAT9751748 (4G1.5+(2x1.5)C) 13.0 7.5
PUR O.I. 06 MAT9851740 (4G1.5+(2x1.5)C) 12.5 10
Basic cable PUR M.I. 07 MAT9851739 (4G1.5+(2x1.5)C) 13.0 7.5
Allen-Bradley/Rockwell Hybrid servo cables
2090-XX_PMF-14SXX
PVC O.I. 04 MAT9711729 (4G2.5+(2x1.5)C)C 14.0 10 Basic cable
PVC M.I. 05 MAT9961721 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT9811725 (4G2.5+(2x1.5)C)C 14.0 10 2090-CSBM1DE-10AF
PUR M.I. 07 MAT9851707 (4G2.5+(2x1.5)C)C 14.5 7.5 PUR O.I. 27 MAT9851723 (4G6.0+(2x1.0)C+(2xAWG22)C)C 17.5 10
2090-XX_PMF-16SXX
PVC O.I. 04 MAT9711728 (4G1.5+(2x1.5)C) 12.5 10
PVC M.I. 05 MAT9961720 (4G1.5+(2x1.5)C) 13.0 7.5 Basic cable
PUR O.I. 06 MAT9811724 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9851706 (4G1.5+(2x1.5)C) 13.0 7.5 2090-CSBM1DE-14AF
PVC O.I. 26 MAT9751711 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
Extension cable PUR O.I. 27 MAT9851720 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
2090-CSBM1DE-18AF
2090-CPBM7E7-08AFxx PVC O.I. 26 MAT9751710 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
PVC M.I. 05 MAT9751709 (4G10+(2x1.5)C)C 21.5 7.5 PUR O.I. 27 MAT9851719 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
PUR O.I. 06 MAT9851710 (4G10+(2x1.5)C)C 21.0 10
PUR M.I. 07 MAT9851709 (4G10+(2x1.5)C)C 21.0 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
®
