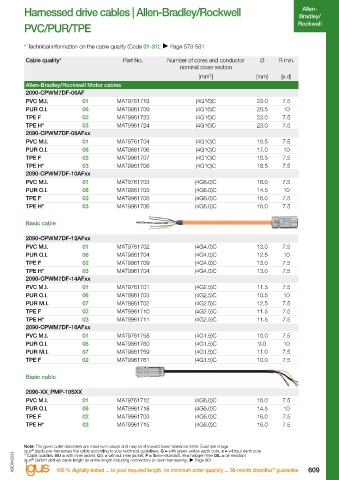

Page 615 - ASEAN Chainflex Catalogue 2023

Allen- Harnessed drive cables | Allen-Bradley/Rockwell Harnessed drive cables | Allen-Bradley/Rockwell Allen-
Bradley/ Bradley/
Rockwell Rockwell
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality* Part No. Number of cores and conductor Ø R min. Cable quality* Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Allen-Bradley/Rockwell Motor cables Allen-Bradley/Rockwell Motor cables
2090-CPWM7DF-06AF
Basic cable PVC M.I. 01 MAT9761713 (4G16)C 23.0 7.5
PUR O.I. 06 MAT9861709 (4G16)C 20.5 10
2090-CPWM4DF-08AFxx TPE F 02 MAT9961723 (4G16)C 23.0 7.5
PVC M.I. 01 MAT9761795 (4G10)C 18.5 7.5 TPE H* 03 MAT9961724 (4G16)C 23.0 7.5
PUR O.I. 06 MAT9861793 (4G10)C 17.0 10 2090-CPWM7DF-08AFxx
TPE F 02 MAT9961791 (4G10)C 18.5 7.5 PVC M.I. 01 MAT9761704 (4G10)C 18.5 7.5
TPE H* 03 MAT9961790 (4G10)C 18.5 7.5 PUR O.I. 06 MAT9861706 (4G10)C 17.0 10
2090-CPWM4DF-10AFxx TPE F 02 MAT9961707 (4G10)C 18.5 7.5
PVC M.I. 01 MAT9761796 (4G6.0)C 16.0 7.5 TPE H* 03 MAT9961708 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9861794 (4G6.0)C 14.5 10 2090-CPWM7DF-10AFxx
TPE F 02 MAT9961793 (4G6.0)C 16.0 7.5 PVC M.I. 01 MAT9761703 (4G6.0)C 16.0 7.5
TPE H* 03 MAT9961792 (4G6.0)C 16.0 7.5 PUR O.I. 06 MAT9861705 (4G6.0)C 14.5 10
TPE F 02 MAT9961705 (4G6.0)C 16.0 7.5
Basic cable TPE H* 03 MAT9961706 (4G6.0)C 16.0 7.5

2090-CPWM4DF-12AFxx Basic cable
PVC M.I. 01 MAT9761797 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9861795 (4G4.0)C 12.5 10 2090-CPWM7DF-12AFxx
TPE F 02 MAT9961795 (4G4.0)C 13.0 7.5 PVC M.I. 01 MAT9761702 (4G4.0)C 13.0 7.5
TPE H* 03 MAT9961794 (4G4.0)C 13.0 7.5 PUR O.I. 06 MAT9861704 (4G4.0)C 12.5 10
2090-CPWM4DF-14AFxx TPE F 02 MAT9961709 (4G4.0)C 13.0 7.5
PVC M.I. 01 MAT9761798 (4G2.5)C 11.5 7.5 TPE H* 03 MAT9961704 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9861796 (4G2.5)C 10.5 10 2090-CPWM7DF-14AFxx
PUR M.I. 07 MAT9861798 (4G2.5)C 12.5 7.5 PVC M.I. 01 MAT9761701 (4G2.5)C 11.5 7.5
TPE F 02 MAT9961797 (4G2.5)C 11.5 7.5 PUR O.I. 06 MAT9861703 (4G2.5)C 10.5 10
TPE H* 03 MAT9961796 (4G2.5)C 11.5 7.5 PUR M.I. 07 MAT9861702 (4G2.5)C 12.5 7.5
2090-CPWM4DF-16AFxx TPE F 02 MAT9961710 (4G2.5)C 11.5 7.5
PVC M.I. 01 MAT9761799 (4G1.5)C 10.0 7.5 TPE H* 03 MAT9961711 (4G2.5)C 11.5 7.5
PUR O.I. 06 MAT9861797 (4G1.5)C 9.0 10 2090-CPWM7DF-16AFxx
PUR M.I. 07 MAT9861799 (4G1.5)C 11.0 7.5 PVC M.I. 01 MAT9761758 (4G1.5)C 10.0 7.5
TPE F 02 MAT9961799 (4G1.5)C 10.0 7.5 PUR O.I. 06 MAT9861760 (4G1.5)C 9.0 10
TPE H* 03 MAT9961798 (4G1.5)C 10.0 7.5 PUR M.I. 07 MAT9861759 (4G1.5)C 11.0 7.5
TPE F 02 MAT9961761 (4G1.5)C 10.0 7.5
Basic cable
Basic cable
2090-CPWM7DF-02AF
PVC M.I. 01 MAT9761715 (4G35)C 31.0 7.5 2090-XX_PMP-10SXX
PUR O.I. 06 MAT9861711 (4G35)C 28.0 10 PVC M.I. 01 MAT9761712 (4G6.0)C 16.0 7.5
2090-CPWM7DF-04AF PUR O.I. 06 MAT9961718 (4G6.0)C 14.5 10
PVC M.I. 01 MAT9761714 (4G25)C 27.5 7.5 TPE F 02 MAT9961703 (4G6.0)C 16.0 7.5
PUR O.I. 06 MAT9861710 (4G25)C 25.0 10 TPE H* 03 MAT9961715 (4G6.0)C 16.0 7.5
TPE F 02 MAT9961725 (4G25)C 27.5 7.5
TPE H* 03 MAT9961726 (4G25)C 27.0 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
608 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 609
®
