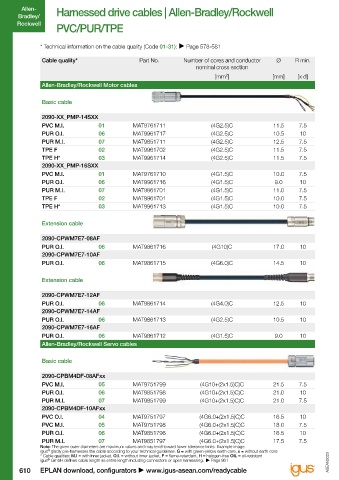

Page 616 - ASEAN Chainflex Catalogue 2023

Allen- Harnessed drive cables | Allen-Bradley/Rockwell Harnessed drive cables | Allen-Bradley/Rockwell Allen-
Bradley/ Bradley/
Rockwell Rockwell
PVC/PUR/TPE PVC/PUR

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality* Part No. Number of cores and conductor Ø R min. Cable quality* Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Allen-Bradley/Rockwell Motor cables Allen-Bradley/Rockwell Servo cables

Basic cable Basic cable

2090-XX_PMP-14SXX 2090-CPBM4DF-12AFxx
PVC M.I. 01 MAT9761711 (4G2.5)C 11.5 7.5 PVC O.I. 04 MAT9751795 (4G4.0+(2x1.5)C)C 15.0 10
PUR O.I. 06 MAT9961717 (4G2.5)C 10.5 10 PVC M.I. 05 MAT9751796 (4G4.0+(2x1.5)C)C 16.0 7.5
PUR M.I. 07 MAT9851711 (4G2.5)C 12.5 7.5 PUR O.I. 06 MAT9851794 (4G4.0+(2x1.5)C)C 15.0 10
TPE F 02 MAT9961702 (4G2.5)C 11.5 7.5 PUR M.I. 07 MAT9851795 (4G4.0+(2x1.5)C)C 16.0 7.5
TPE H* 03 MAT9961714 (4G2.5)C 11.5 7.5 2090-CPBM4DF-14AFxx
2090-XX_PMP-16SXX PVC O.I. 04 MAT9751791 (4G2.5+(2x1.5)C)C 14.0 10
PVC M.I. 01 MAT9761710 (4G1.5)C 10.0 7.5 PVC M.I. 05 MAT9751792 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT9961716 (4G1.5)C 9.0 10 PUR O.I. 06 MAT9851790 (4G2.5+(2x1.5)C)C 14.0 10
PUR M.I. 07 MAT9861701 (4G1.5)C 11.0 7.5 PUR M.I. 07 MAT9851791 (4G2.5+(2x1.5)C)C 14.5 7.5
TPE F 02 MAT9961701 (4G1.5)C 10.0 7.5 2090-CPBM4DF-16AFxx
TPE H* 03 MAT9961713 (4G1.5)C 10.0 7.5 PVC O.I. 04 MAT9751757 (4G1.5+(2x1.5)C) 12.5 10
PVC M.I. 05 MAT9751756 (4G1.5+(2x1.5)C) 13.0 7.5
Extension cable PUR O.I. 06 MAT9851755 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9851754 (4G1.5+(2x1.5)C) 13.0 7.5
2090-CPWM7E7-08AF
PUR O.I. 06 MAT9861716 (4G10)C 17.0 10 Basic cable
2090-CPWM7E7-10AF 2090-CPBM7DF-02AF
PUR O.I. 06 MAT9861715 (4G6.0)C 14.5 10 PUR M.I. 07 MAT9851745 (4G35+(2x1.5)C)C 32.0 7.5
2090-CPBM7DF-04AF
Extension cable PUR O.I. 06 MAT9851743 (4G25+(2x1.5)C)C 28.5 10
PUR M.I. 07 MAT9851744 (4G25+(2x1.5)C)C 28.0 7.5
2090-CPWM7E7-12AF
PUR O.I. 06 MAT9861714 (4G4.0)C 12.5 10 Basic cable
2090-CPWM7E7-14AF 2090-CPBM7DF-06AF
PUR O.I. 06 MAT9861713 (4G2.5)C 10.5 10 PUR O.I. 06 MAT9851741 (4G16+(2x1.5)C)C 24.0 10
2090-CPWM7E7-16AF PUR M.I. 07 MAT9851742 (4G16+(2x1.5)C)C 24.0 7.5
PUR O.I. 06 MAT9861712 (4G1.5)C 9.0 10 2090-CPBM7DF-08AFxx
Allen-Bradley/Rockwell Servo cables PVC M.I. 05 MAT9751745 (4G10+(2x1.5)C)C 21.5 7.5
PUR O.I. 06 MAT9851736 (4G10+(2x1.5)C)C 21.0 10
Basic cable PUR M.I. 07 MAT9851735 (4G10+(2x1.5)C)C 21.0 7.5
2090-CPBM7DF-10AFxx
2090-CPBM4DF-08AFxx PVC O.I. 04 MAT9751706 (4G6.0+(2x1.5)C)C 16.5 10
PVC M.I. 05 MAT9751799 (4G10+(2x1.5)C)C 21.5 7.5 PVC M.I. 05 MAT9751705 (4G6.0+(2x1.5)C)C 18.0 7.5
PUR O.I. 06 MAT9851798 (4G10+(2x1.5)C)C 21.0 10 PUR O.I. 06 MAT9851712 (4G6.0+(2x1.5)C)C 16.5 10
PUR M.I. 07 MAT9851799 (4G10+(2x1.5)C)C 21.0 7.5 PUR M.I. 07 MAT9851705 (4G6.0+(2x1.5)C)C 17.5 7.5
2090-CPBM4DF-10AFxx 2090-CPBM7DF-12AFxx
PVC O.I. 04 MAT9751797 (4G6.0+(2x1.5)C)C 16.5 10 PVC O.I. 04 MAT9751793 (4G4.0+(2x1.5)C)C 15.0 10
PVC M.I. 05 MAT9751798 (4G6.0+(2x1.5)C)C 18.0 7.5 PVC M.I. 05 MAT9751794 (4G4.0+(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9851796 (4G6.0+(2x1.5)C)C 16.5 10 PUR O.I. 06 MAT9851792 (4G4.0+(2x1.5)C)C 15.0 10
PUR M.I. 07 MAT9851797 (4G6.0+(2x1.5)C)C 17.5 7.5 PUR M.I. 07 MAT9851793 (4G4.0+(2x1.5)C)C 16.0 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023
®
610 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 611
®
