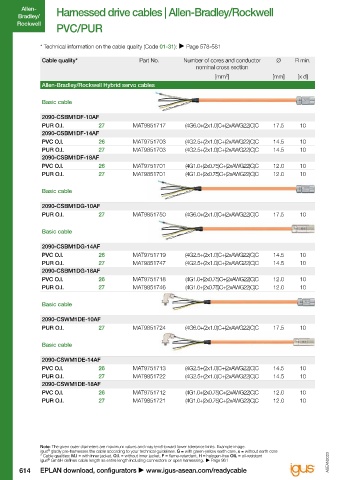

Page 620 - ASEAN Chainflex Catalogue 2023

Allen- Harnessed drive cables | Allen-Bradley/Rockwell Harnessed drive cables | Allen-Bradley/Rockwell Allen-
Bradley/ Bradley/
Rockwell Rockwell
PVC/PUR PVC/PUR

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality* Part No. Number of cores and conductor Ø R min. Cable quality* Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Allen-Bradley/Rockwell Hybrid servo cables Allen-Bradley/Rockwell Hybrid servo cables

Basic cable Basic cable

2090-CSBM1DF-10AF 2090-CSWM1DF-10AF
PUR O.I. 27 MAT9851717 (4G6.0+(2x1.0)C+(2xAWG22)C)C 17.5 10 PUR O.I. 27 MAT9851718 (4G6.0+(2x1.0)C+(2xAWG22)C)C 17.5 10
2090-CSBM1DF-14AF
PVC O.I. 26 MAT9751703 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10 Basic cable
PUR O.I. 27 MAT9851703 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
2090-CSBM1DF-18AF 2090-CSWM1DF-14AF
PVC O.I. 26 MAT9751701 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 PVC O.I. 26 MAT9751704 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
PUR O.I. 27 MAT9851701 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 PUR O.I. 27 MAT9851704 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
2090-CSWM1DF-18AF
Basic cable PVC O.I. 26 MAT9751702 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10
PUR O.I. 27 MAT9851702 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10
2090-CSBM1DG-10AF
PUR O.I. 27 MAT9851750 (4G6.0+(2x1.0)C+(2xAWG22)C)C 17.5 10 Basic cable

Basic cable 2090-CSWM1DG-10AF
PUR O.I. 27 MAT9851751 (4G6.0+(2x1.0)C+(2xAWG22)C)C 17.5 10
2090-CSBM1DG-14AF
PVC O.I. 26 MAT9751719 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10 Basic cable
PUR O.I. 27 MAT9851747 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
2090-CSBM1DG-18AF 2090-CSWM1DG-14AF
PVC O.I. 26 MAT9751718 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 PVC O.I. 26 MAT9751721 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
PUR O.I. 27 MAT9851746 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 PUR O.I. 27 MAT9851749 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
2090-CSWM1DG-18AF
Basic cable PVC O.I. 26 MAT9751720 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10
PUR O.I. 27 MAT9851748 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10
2090-CSWM1DE-10AF
PUR O.I. 27 MAT9851724 (4G6.0+(2x1.0)C+(2xAWG22)C)C 17.5 10 Extension cable

Basic cable 2090-CSBM1E1-10AF
PUR O.I. 27 MAT9851729 (4G6.0+(2x1.0)C+(2xAWG22)C)C 17.5 10
2090-CSWM1DE-14AF
PVC O.I. 26 MAT9751713 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10 Extension cable
PUR O.I. 27 MAT9851722 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
2090-CSWM1DE-18AF 2090-CSBM1E1-14AF
PVC O.I. 26 MAT9751712 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 PVC O.I. 26 MAT9751715 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
PUR O.I. 27 MAT9851721 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 PUR O.I. 27 MAT9851726 (4G2.5+(2x1.0)C+(2xAWG22)C)C 14.5 10
2090-CSBM1E1-18AF
PVC O.I. 26 MAT9751714 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10
PUR O.I. 27 MAT9851725 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
614 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 615
®
