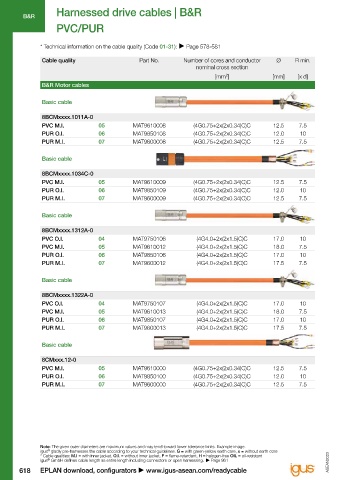

Page 624 - ASEAN Chainflex Catalogue 2023
P. 624
Harnessed drive cables | B&R Harnessed drive cables | B&R
B&R B&R
PVC/PUR PVC/PUR
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
B&R Motor cables B&R Servo cables
Basic cable Basic cable
8BCMxxxx.1011A-0 8BCMxxxx.1111A-0
PVC M.I. 05 MAT9610008 (4G0.75+2x(2x0.34)C)C 12.5 7.5 PVC O.I. 04 MAT9750104 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR O.I. 06 MAT9850108 (4G0.75+2x(2x0.34)C)C 12.0 10 PVC M.I. 05 MAT9610010 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR M.I. 07 MAT9600008 (4G0.75+2x(2x0.34)C)C 12.5 7.5 PUR O.I. 06 MAT9850104 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9600010 (4G1.5+2x(2x0.75)C)C 14.5 7.5
Basic cable 8BCMxxxx.1311A-0
PVC O.I. 04 MAT9750105 (4G4.0+2x(2x1.5)C)C 17.0 10
8BCMxxxx.1034C-0 PVC M.I. 05 MAT9610011 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PVC M.I. 05 MAT9610009 (4G0.75+2x(2x0.34)C)C 12.5 7.5 PUR O.I. 06 MAT9850105 (4G4.0+2x(2x1.5)C)C 17.0 10
PUR O.I. 06 MAT9850109 (4G0.75+2x(2x0.34)C)C 12.0 10 PUR M.I. 07 MAT9600011 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR M.I. 07 MAT9600009 (4G0.75+2x(2x0.34)C)C 12.5 7.5
Basic cable
Basic cable
8CMxxx.12-1
8BCMxxxx.1312A-0 PVC O.I. 04 MAT9750101 (4G1.5+2x(2x0.75)C)C 13.5 10
PVC O.I. 04 MAT9750106 (4G4.0+2x(2x1.5)C)C 17.0 10 PVC M.I. 05 MAT9610001 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PVC M.I. 05 MAT9610012 (4G4.0+2x(2x1.5)C)C 18.0 7.5 PUR O.I. 06 MAT9850101 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR O.I. 06 MAT9850106 (4G4.0+2x(2x1.5)C)C 17.0 10 PUR M.I. 07 MAT9600001 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR M.I. 07 MAT9600012 (4G4.0+2x(2x1.5)C)C 17.5 7.5 8CMxxx.12-3
PVC O.I. 04 MAT9750102 (4G4.0+2x(2x1.5)C)C 17.0 10
Basic cable PVC M.I. 05 MAT9610002 (4G4.0+2x(2x1.5)C)C 18.0 7.5
PUR O.I. 06 MAT9850102 (4G4.0+2x(2x1.5)C)C 17.0 10
8BCMxxxx.1322A-0 PUR M.I. 07 MAT9600002 (4G4.0+2x(2x1.5)C)C 17.5 7.5
PVC O.I. 04 MAT9750107 (4G4.0+2x(2x1.5)C)C 17.0 10 8CMxxx.12-5
PVC M.I. 05 MAT9610013 (4G4.0+2x(2x1.5)C)C 18.0 7.5 PVC M.I. 05 MAT9610003 (4G10+2x(2x1.5)C)C 23.0 7.5
PUR O.I. 06 MAT9850107 (4G4.0+2x(2x1.5)C)C 17.0 10 PUR O.I. 06 MAT9850103 (4G10+2x(2x1.5)C)C 22.5 10
PUR M.I. 07 MAT9600013 (4G4.0+2x(2x1.5)C)C 17.5 7.5 PUR M.I. 07 MAT9600003 (4G10+2x(2x1.5)C)C 22.5 7.5
Basic cable Extension cable
8CMxxx.12-0 8BCFxxxx.12230-0
PVC M.I. 05 MAT9610000 (4G0.75+2x(2x0.34)C)C 12.5 7.5 PVC 08 MAT9740101 ((4x0.14)+2x(2x0.34))C 7.0 10
PUR O.I. 06 MAT9850100 (4G0.75+2x(2x0.34)C)C 12.0 10 PUR O.I. 09 MAT9840115 ((4x0.14)+2x(2x0.34))C 7.0 10
PUR M.I. 07 MAT9600000 (4G0.75+2x(2x0.34)C)C 12.5 7.5
Extension cable
8BCMxxxx.10360-0
PVC M.I. 05 MAT9750108 (4G0.75+2x(2x0.34)C)C 12.5 7.5
PUR O.I. 06 MAT9850115 (4G0.75+2x(2x0.34)C)C 12.0 10
PUR M.I. 07 MAT9850116 (4G0.75+2x(2x0.34)C)C 12.5 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
618 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 619
®
