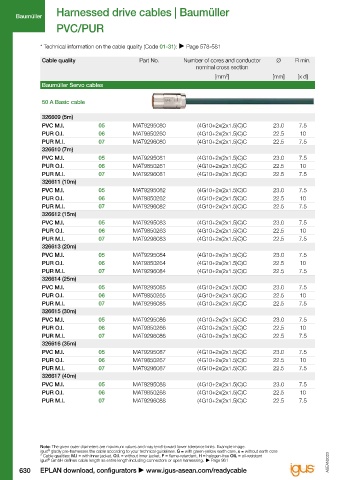

Harnessed drive cables | Baumüller Harnessed drive cables | Baumüller
Baumüller Baumüller
PVC/PUR PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Servo cables Baumüller Servo cables

50 A Basic cable 50 A Extension cable

326609 (5m) 326609 (5m) (ext.)
PVC M.I. 05 MAT9295080 (4G10+2x(2x1.5)C)C 23.0 7.5 PVC M.I. 05 MAT9297080 (4G10+2x(2x1.5)C)C 23.0 7.5
PUR O.I. 06 MAT9850260 (4G10+2x(2x1.5)C)C 22.5 10 PUR O.I. 06 MAT9850269 (4G10+2x(2x1.5)C)C 22.5 10
PUR M.I. 07 MAT9296080 (4G10+2x(2x1.5)C)C 22.5 7.5 PUR M.I. 07 MAT9298080 (4G10+2x(2x1.5)C)C 22.5 7.5
326610 (7m) Baumüller Resolver cables
PVC M.I. 05 MAT9295081 (4G10+2x(2x1.5)C)C 23.0 7.5
PUR O.I. 06 MAT9850261 (4G10+2x(2x1.5)C)C 22.5 10 SRS/SRM50 & SKS/SKM36 Basic cable
PUR M.I. 07 MAT9296081 (4G10+2x(2x1.5)C)C 22.5 7.5
326611 (10m) 239540 (5m)
PVC M.I. 05 MAT9295082 (4G10+2x(2x1.5)C)C 23.0 7.5 PVC 08 MAT9290003 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 06 MAT9850262 (4G10+2x(2x1.5)C)C 22.5 10 PUR O.I. 09 MAT9940203 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 07 MAT9296082 (4G10+2x(2x1.5)C)C 22.5 7.5 PUR M.I. 10 MAT9840203 (5x(2x0.14)+2x0.5)C 9.0 7.5
326612 (15m) TPE H* 11 MAT9291003 (5x(2x0.14)+2x0.5)C 8.5 6.8
PVC M.I. 05 MAT9295083 (4G10+2x(2x1.5)C)C 23.0 7.5 239541 (8m)
PUR O.I. 06 MAT9850263 (4G10+2x(2x1.5)C)C 22.5 10 PVC 08 MAT9290005 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 07 MAT9296083 (4G10+2x(2x1.5)C)C 22.5 7.5 PUR O.I. 09 MAT9940205 (5x(2x0.14)+2x0.5)C 8.0 10
326613 (20m) PUR M.I. 10 MAT9840205 (5x(2x0.14)+2x0.5)C 9.0 7.5
PVC M.I. 05 MAT9295084 (4G10+2x(2x1.5)C)C 23.0 7.5 TPE H* 11 MAT9291005 (5x(2x0.14)+2x0.5)C 8.5 6.8
PUR O.I. 06 MAT9850264 (4G10+2x(2x1.5)C)C 22.5 10 239542 (10m)
PUR M.I. 07 MAT9296084 (4G10+2x(2x1.5)C)C 22.5 7.5 PVC 08 MAT9290006 (5x(2x0.14)+2x0.5)C 8.0 10
326614 (25m) PUR O.I. 09 MAT9940206 (5x(2x0.14)+2x0.5)C 8.0 10
PVC M.I. 05 MAT9295085 (4G10+2x(2x1.5)C)C 23.0 7.5 PUR M.I. 10 MAT9840206 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR O.I. 06 MAT9850265 (4G10+2x(2x1.5)C)C 22.5 10 TPE H* 11 MAT9291006 (5x(2x0.14)+2x0.5)C 8.5 6.8
PUR M.I. 07 MAT9296085 (4G10+2x(2x1.5)C)C 22.5 7.5 239543 (15m)
326615 (30m) PVC 08 MAT9290007 (5x(2x0.14)+2x0.5)C 8.0 10
PVC M.I. 05 MAT9295086 (4G10+2x(2x1.5)C)C 23.0 7.5 PUR O.I. 09 MAT9940207 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 06 MAT9850266 (4G10+2x(2x1.5)C)C 22.5 10 PUR M.I. 10 MAT9840207 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 07 MAT9296086 (4G10+2x(2x1.5)C)C 22.5 7.5 TPE H* 11 MAT9291007 (5x(2x0.14)+2x0.5)C 8.5 6.8
326616 (35m) 239544 (20m)
PVC M.I. 05 MAT9295087 (4G10+2x(2x1.5)C)C 23.0 7.5 PUR O.I. 09 MAT9940208 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 06 MAT9850267 (4G10+2x(2x1.5)C)C 22.5 10 PUR M.I. 10 MAT9840208 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 07 MAT9296087 (4G10+2x(2x1.5)C)C 22.5 7.5 239544 (20m)
326617 (40m) PVC 08 MAT9290008 (5x(2x0.14)+2x0.5)C 8.0 10
PVC M.I. 05 MAT9295088 (4G10+2x(2x1.5)C)C 23.0 7.5 TPE H* 11 MAT9291008 (5x(2x0.14)+2x0.5)C 8.5 6.8
PUR O.I. 06 MAT9850268 (4G10+2x(2x1.5)C)C 22.5 10 239545 (25m)
PUR M.I. 07 MAT9296088 (4G10+2x(2x1.5)C)C 22.5 7.5 PVC 08 MAT9290009 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940209 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840209 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291009 (5x(2x0.14)+2x0.5)C 8.5 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
