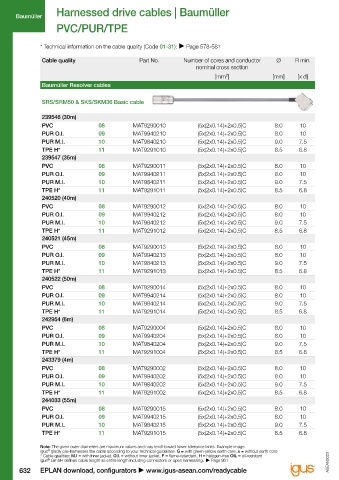

Page 638 - ASEAN Chainflex Catalogue 2023
P. 638
Harnessed drive cables | Baumüller Harnessed drive cables | Baumüller
Baumüller Baumüller
PVC/PUR/TPE PVC/PUR/TPE
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Resolver cables Baumüller Resolver cables
245484 (60m)
SRS/SRM50 & SKS/SKM36 Basic cable PVC 08 MAT9290016 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940216 (5x(2x0.14)+2x0.5)C 8.0 10
239546 (30m) PUR M.I. 10 MAT9840216 (5x(2x0.14)+2x0.5)C 9.0 7.5
PVC 08 MAT9290010 (5x(2x0.14)+2x0.5)C 8.0 10 TPE H* 11 MAT9291016 (5x(2x0.14)+2x0.5)C 8.5 6.8
PUR O.I. 09 MAT9940210 (5x(2x0.14)+2x0.5)C 8.0 10 246658 (3m)
PUR M.I. 10 MAT9840210 (5x(2x0.14)+2x0.5)C 9.0 7.5 PVC 08 MAT9290001 (5x(2x0.14)+2x0.5)C 8.0 10
TPE H* 11 MAT9291010 (5x(2x0.14)+2x0.5)C 8.5 6.8 PUR O.I. 09 MAT9940201 (5x(2x0.14)+2x0.5)C 8.0 10
239547 (35m) PUR M.I. 10 MAT9840201 (5x(2x0.14)+2x0.5)C 9.0 7.5
PVC 08 MAT9290011 (5x(2x0.14)+2x0.5)C 8.0 10 TPE H* 11 MAT9291001 (5x(2x0.14)+2x0.5)C 8.5 6.8
PUR O.I. 09 MAT9940211 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840211 (5x(2x0.14)+2x0.5)C 9.0 7.5 SRS/SRM50 & SKS/SKM36
TPE H* 11 MAT9291011 (5x(2x0.14)+2x0.5)C 8.5 6.8 Extension cable
240520 (40m) 246658 (3m) (ext.)
PVC 08 MAT9290012 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9292001 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940212 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940217 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840212 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR M.I. 10 MAT9840217 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291012 (5x(2x0.14)+2x0.5)C 8.5 6.8 TPE H* 11 MAT9293001 (5x(2x0.14)+2x0.5)C 8.5 6.8
240521 (45m) Baumüller Pulse encoder cables
PVC 08 MAT9290013 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940213 (5x(2x0.14)+2x0.5)C 8.0 10 Pulse encoder Basic cable
PUR M.I. 10 MAT9840213 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291013 (5x(2x0.14)+2x0.5)C 8.5 6.8 198962 (3m)
240522 (50m) PVC 08 MAT9290020 (5x(2x0.14)+2x0.5)C 8.0 10
PVC 08 MAT9290014 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940218 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940214 (5x(2x0.14)+2x0.5)C 8.0 10 PUR M.I. 10 MAT9840218 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 10 MAT9840214 (5x(2x0.14)+2x0.5)C 9.0 7.5 TPE H* 11 MAT9291020 (5x(2x0.14)+2x0.5)C 8.5 6.8
TPE H* 11 MAT9291014 (5x(2x0.14)+2x0.5)C 8.5 6.8 198963 (5m)
242954 (6m) PVC 08 MAT9290021 (5x(2x0.14)+2x0.5)C 8.0 10
PVC 08 MAT9290004 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940219 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940204 (5x(2x0.14)+2x0.5)C 8.0 10 PUR M.I. 10 MAT9840219 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 10 MAT9840204 (5x(2x0.14)+2x0.5)C 9.0 7.5 TPE H* 11 MAT9291021 (5x(2x0.14)+2x0.5)C 8.5 6.8
TPE H* 11 MAT9291004 (5x(2x0.14)+2x0.5)C 8.5 6.8 198964 (8m)
243379 (4m) PVC 08 MAT9290022 (5x(2x0.14)+2x0.5)C 8.0 10
PVC 08 MAT9290002 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940220 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940202 (5x(2x0.14)+2x0.5)C 8.0 10 PUR M.I. 10 MAT9840220 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 10 MAT9840202 (5x(2x0.14)+2x0.5)C 9.0 7.5 TPE H* 11 MAT9291022 (5x(2x0.14)+2x0.5)C 8.5 6.8
TPE H* 11 MAT9291002 (5x(2x0.14)+2x0.5)C 8.5 6.8 198965 (10m)
244033 (55m) PVC 08 MAT9290023 (5x(2x0.14)+2x0.5)C 8.0 10
PVC 08 MAT9290015 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940221 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940215 (5x(2x0.14)+2x0.5)C 8.0 10 PUR M.I. 10 MAT9840221 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 10 MAT9840215 (5x(2x0.14)+2x0.5)C 9.0 7.5 TPE H* 11 MAT9291023 (5x(2x0.14)+2x0.5)C 8.5 6.8
TPE H* 11 MAT9291015 (5x(2x0.14)+2x0.5)C 8.5 6.8
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
