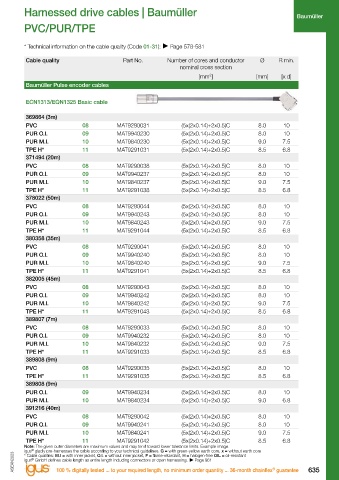

Page 641 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Baumüller Harnessed drive cables | Baumüller
Baumüller Baumüller
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Pulse encoder cables Baumüller Pulse encoder cables

Pulse encoder Basic cable ECN1313/EQN1325 Basic cable

198966 (15m) 369864 (3m)
PVC 08 MAT9290024 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290031 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940222 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940230 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840222 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR M.I. 10 MAT9840230 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291024 (5x(2x0.14)+2x0.5)C 8.5 6.8 TPE H* 11 MAT9291031 (5x(2x0.14)+2x0.5)C 8.5 6.8
198967 (20m) 371494 (20m)
PVC 08 MAT9290025 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290038 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940223 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940237 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840223 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR M.I. 10 MAT9840237 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291025 (5x(2x0.14)+2x0.5)C 8.5 6.8 TPE H* 11 MAT9291038 (5x(2x0.14)+2x0.5)C 8.5 6.8
198968 (25m) 378022 (50m)
PVC 08 MAT9290026 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290044 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940224 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940243 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840224 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR M.I. 10 MAT9840243 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291026 (5x(2x0.14)+2x0.5)C 8.5 6.8 TPE H* 11 MAT9291044 (5x(2x0.14)+2x0.5)C 8.5 6.8
198969 (30m) 380358 (35m)
PVC 08 MAT9290027 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290041 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940225 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940240 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840225 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR M.I. 10 MAT9840240 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291027 (5x(2x0.14)+2x0.5)C 8.5 6.8 TPE H* 11 MAT9291041 (5x(2x0.14)+2x0.5)C 8.5 6.8
208829 (40m) 382005 (45m)
PVC 08 MAT9290029 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290043 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940227 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940242 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840227 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR M.I. 10 MAT9840242 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291029 (5x(2x0.14)+2x0.5)C 8.5 6.8 TPE H* 11 MAT9291043 (5x(2x0.14)+2x0.5)C 8.5 6.8
225360 (35m) 389807 (7m)
PVC 08 MAT9290028 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290033 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940226 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940232 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840226 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR M.I. 10 MAT9840232 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291028 (5x(2x0.14)+2x0.5)C 8.5 6.8 TPE H* 11 MAT9291033 (5x(2x0.14)+2x0.5)C 8.5 6.8
389808 (9m)
Pulse encoder Extension cable PVC 08 MAT9290035 (5x(2x0.14)+2x0.5)C 8.0 10
TPE H* 11 MAT9291035 (5x(2x0.14)+2x0.5)C 8.5 6.8
198962 (3m) (ext.) 389808 (9m)
PUR O.I. 09 MAT9940228 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940234 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840228 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR M.I. 10 MAT9840234 (5x(2x0.14)+2x0.5)C 9.0 6.8
TPE H* 11 MAT9293020 (5x(2x0.14)+2x0.5)C 8.5 6.8 391216 (40m)
198962 (3m) (ext.) PVC 08 MAT9290042 (5x(2x0.14)+2x0.5)C 8.0 10
PVC 08 MAT9292020 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940241 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840241 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291042 (5x(2x0.14)+2x0.5)C 8.5 6.8
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
634 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 635
®
