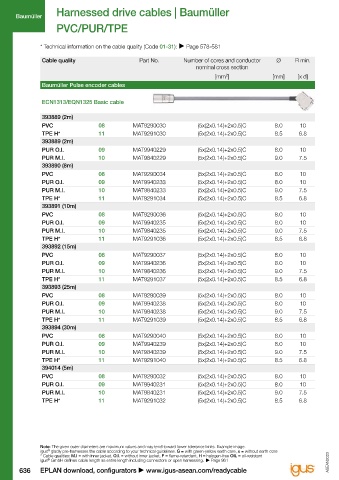

Page 642 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Baumüller Harnessed drive cables | Baumüller
Baumüller Baumüller
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Pulse encoder cables Baumüller Pulse encoder cables

ECN1313/EQN1325 Basic cable ECN1313/EQN1325 Extension cable

393889 (2m) 393889 (2m) (ext.)
PVC 08 MAT9290030 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9292030 (5x(2x0.14)+2x0.5)C 8.0 10
TPE H* 11 MAT9291030 (5x(2x0.14)+2x0.5)C 8.5 6.8 PUR M.I. 10 MAT9840244 (5x(2x0.14)+2x0.5)C 9.0 7.5
393889 (2m) TPE H* 11 MAT9293030 (5x(2x0.14)+2x0.5)C 8.5 6.8
PUR O.I. 09 MAT9940229 (5x(2x0.14)+2x0.5)C 8.0 10 393889 (2m) (ext.)
PUR M.I. 10 MAT9840229 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR O.I. 09 MAT9940244 (5x(2x0.14)+2x0.5)C 8.0 10
393890 (8m)
PVC 08 MAT9290034 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940233 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840233 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291034 (5x(2x0.14)+2x0.5)C 8.5 6.8
393891 (10m)
PVC 08 MAT9290036 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940235 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840235 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291036 (5x(2x0.14)+2x0.5)C 8.5 6.8
393892 (15m)
PVC 08 MAT9290037 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940236 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840236 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291037 (5x(2x0.14)+2x0.5)C 8.5 6.8
393893 (25m)
PVC 08 MAT9290039 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940238 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840238 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291039 (5x(2x0.14)+2x0.5)C 8.5 6.8
393894 (30m)
PVC 08 MAT9290040 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940239 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840239 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291040 (5x(2x0.14)+2x0.5)C 8.5 6.8
394014 (5m)
PVC 08 MAT9290032 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940231 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840231 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291032 (5x(2x0.14)+2x0.5)C 8.5 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
®
