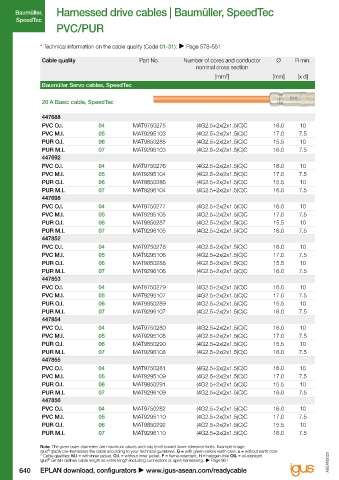

Harnessed drive cables | Baumüller, SpeedTec Harnessed drive cables | Baumüller, SpeedTec
Baumüller, Baumüller,
SpeedTec SpeedTec
PVC/PUR PVC/PUR

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Servo cables, SpeedTec Baumüller Servo cables, SpeedTec
447857
20 A Basic cable, SpeedTec PVC O.I. 04 MAT9750283 (4G2.5+2x(2x1.5)C)C 16.0 10
PVC M.I. 05 MAT9295111 (4G2.5+2x(2x1.5)C)C 17.0 7.5
447688 PUR O.I. 06 MAT9850293 (4G2.5+2x(2x1.5)C)C 15.5 10
PVC O.I. 04 MAT9750275 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR M.I. 07 MAT9296111 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PVC M.I. 05 MAT9295103 (4G2.5+2x(2x1.5)C)C 17.0 7.5 447858
PUR O.I. 06 MAT9850285 (4G2.5+2x(2x1.5)C)C 15.5 10 PVC O.I. 04 MAT9750284 (4G2.5+2x(2x1.5)C)C 16.0 10
PUR M.I. 07 MAT9296103 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PVC M.I. 05 MAT9295112 (4G2.5+2x(2x1.5)C)C 17.0 7.5
447692 PUR O.I. 06 MAT9850294 (4G2.5+2x(2x1.5)C)C 15.5 10
PVC O.I. 04 MAT9750276 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR M.I. 07 MAT9296112 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PVC M.I. 05 MAT9295104 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PUR O.I. 06 MAT9850286 (4G2.5+2x(2x1.5)C)C 15.5 10 20 A Extension cable, SpeedTec
PUR M.I. 07 MAT9296104 (4G2.5+2x(2x1.5)C)C 16.0 7.5
447698 447684
PVC O.I. 04 MAT9750277 (4G2.5+2x(2x1.5)C)C 16.0 10 PVC O.I. 04 MAT9750285 (4G2.5+2x(2x1.5)C)C 16.0 10
PVC M.I. 05 MAT9295105 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PVC M.I. 05 MAT9297086 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PUR O.I. 06 MAT9850287 (4G2.5+2x(2x1.5)C)C 15.5 10 PUR O.I. 06 MAT9850295 (4G2.5+2x(2x1.5)C)C 15.5 10
PUR M.I. 07 MAT9296105 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PUR M.I. 07 MAT9298086 (4G2.5+2x(2x1.5)C)C 16.0 7.5
447852
PVC O.I. 04 MAT9750278 (4G2.5+2x(2x1.5)C)C 16.0 10 21 A Basic cable, SpeedTec
PVC M.I. 05 MAT9295106 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PUR O.I. 06 MAT9850288 (4G2.5+2x(2x1.5)C)C 15.5 10 447686
PUR M.I. 07 MAT9296106 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PVC O.I. 04 MAT9750286 (4G2.5+2x(2x1.5)C)C 16.0 10
447853 PVC M.I. 05 MAT9295113 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PVC O.I. 04 MAT9750279 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT9850296 (4G2.5+2x(2x1.5)C)C 15.5 10
PVC M.I. 05 MAT9295107 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR M.I. 07 MAT9296113 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9850289 (4G2.5+2x(2x1.5)C)C 15.5 10 447689
PUR M.I. 07 MAT9296107 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PVC O.I. 04 MAT9750287 (4G2.5+2x(2x1.5)C)C 16.0 10
447854 PVC M.I. 05 MAT9295114 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PVC O.I. 04 MAT9750280 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT9850297 (4G2.5+2x(2x1.5)C)C 15.5 10
PVC M.I. 05 MAT9295108 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR M.I. 07 MAT9296114 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9850290 (4G2.5+2x(2x1.5)C)C 15.5 10 447690
PUR M.I. 07 MAT9296108 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PVC O.I. 04 MAT9750288 (4G2.5+2x(2x1.5)C)C 16.0 10
447855 PVC M.I. 05 MAT9295115 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PVC O.I. 04 MAT9750281 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT9850298 (4G2.5+2x(2x1.5)C)C 15.5 10
PVC M.I. 05 MAT9295109 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR M.I. 07 MAT9296115 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9850291 (4G2.5+2x(2x1.5)C)C 15.5 10 447691
PUR M.I. 07 MAT9296109 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PVC O.I. 04 MAT9750289 (4G2.5+2x(2x1.5)C)C 16.0 10
447856 PVC M.I. 05 MAT9295116 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PVC O.I. 04 MAT9750282 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT9850299 (4G2.5+2x(2x1.5)C)C 15.5 10
PVC M.I. 05 MAT9295110 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR M.I. 07 MAT9296116 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9850292 (4G2.5+2x(2x1.5)C)C 15.5 10
PUR M.I. 07 MAT9296110 (4G2.5+2x(2x1.5)C)C 16.0 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
