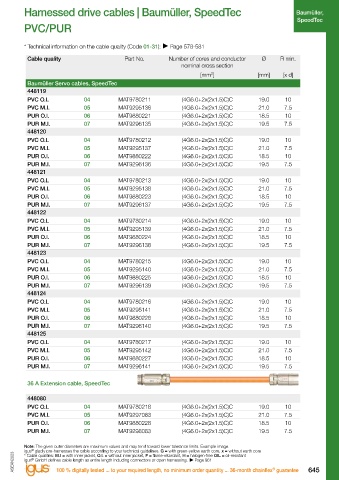

Page 651 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Baumüller, SpeedTec Harnessed drive cables | Baumüller, SpeedTec
Baumüller, Baumüller,
SpeedTec SpeedTec
PVC/PUR PVC/PUR

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Servo cables, SpeedTec Baumüller Servo cables, SpeedTec
448119

28 A Basic cable, SpeedTec PVC O.I. 04 MAT9780211 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9295136 (4G6.0+2x(2x1.5)C)C 21.0 7.5
448070 PUR O.I. 06 MAT9880221 (4G6.0+2x(2x1.5)C)C 18.5 10
PVC O.I. 04 MAT9780205 (4G4.0+2x(2x1.5)C)C 17.0 10 PUR M.I. 07 MAT9296135 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PVC M.I. 05 MAT9295131 (4G4.0+2x(2x1.5)C)C 18.0 7.5 448120
PUR O.I. 06 MAT9880215 (4G4.0+2x(2x1.5)C)C 16.5 10 PVC O.I. 04 MAT9780212 (4G6.0+2x(2x1.5)C)C 19.0 10
PUR M.I. 07 MAT9296131 (4G4.0+2x(2x1.5)C)C 17.5 7.5 PVC M.I. 05 MAT9295137 (4G6.0+2x(2x1.5)C)C 21.0 7.5
448071 PUR O.I. 06 MAT9880222 (4G6.0+2x(2x1.5)C)C 18.5 10
PVC O.I. 04 MAT9780206 (4G4.0+2x(2x1.5)C)C 17.0 10 PUR M.I. 07 MAT9296136 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PVC M.I. 05 MAT9295132 (4G4.0+2x(2x1.5)C)C 18.0 7.5 448121
PUR O.I. 06 MAT9880216 (4G4.0+2x(2x1.5)C)C 16.5 10 PVC O.I. 04 MAT9780213 (4G6.0+2x(2x1.5)C)C 19.0 10
PUR M.I. 07 MAT9296132 (4G4.0+2x(2x1.5)C)C 17.5 7.5 PVC M.I. 05 MAT9295138 (4G6.0+2x(2x1.5)C)C 21.0 7.5
448072 PUR O.I. 06 MAT9880223 (4G6.0+2x(2x1.5)C)C 18.5 10
PVC O.I. 04 MAT9780207 (4G4.0+2x(2x1.5)C)C 17.0 10 PUR M.I. 07 MAT9296137 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PVC M.I. 05 MAT9295133 (4G4.0+2x(2x1.5)C)C 18.0 7.5 448122
PUR O.I. 06 MAT9880217 (4G4.0+2x(2x1.5)C)C 16.5 10 PVC O.I. 04 MAT9780214 (4G6.0+2x(2x1.5)C)C 19.0 10
PUR M.I. 07 MAT9296133 (4G4.0+2x(2x1.5)C)C 17.5 7.5 PVC M.I. 05 MAT9295139 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PUR O.I. 06 MAT9880224 (4G6.0+2x(2x1.5)C)C 18.5 10

28 A Extension cable, SpeedTec PUR M.I. 07 MAT9296138 (4G6.0+2x(2x1.5)C)C 19.5 7.5
448123
448063 PVC O.I. 04 MAT9780215 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC O.I. 04 MAT9780208 (4G4.0+2x(2x1.5)C)C 17.0 10 PVC M.I. 05 MAT9295140 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PVC M.I. 05 MAT9297082 (4G4.0+2x(2x1.5)C)C 18.0 7.5 PUR O.I. 06 MAT9880225 (4G6.0+2x(2x1.5)C)C 18.5 10
PUR O.I. 06 MAT9880218 (4G4.0+2x(2x1.5)C)C 16.5 10 PUR M.I. 07 MAT9296139 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PUR M.I. 07 MAT9298082 (4G4.0+2x(2x1.5)C)C 17.5 7.5 448124
PVC O.I. 04 MAT9780216 (4G6.0+2x(2x1.5)C)C 19.0 10

36 A Basic cable, SpeedTec PVC M.I. 05 MAT9295141 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PUR O.I. 06 MAT9880226 (4G6.0+2x(2x1.5)C)C 18.5 10
448080 PUR M.I. 07 MAT9296140 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PVC O.I. 04 MAT9780209 (4G6.0+2x(2x1.5)C)C 19.0 10 448125
PVC M.I. 05 MAT9295134 (4G6.0+2x(2x1.5)C)C 21.0 7.5 PVC O.I. 04 MAT9780217 (4G6.0+2x(2x1.5)C)C 19.0 10
PUR O.I. 06 MAT9880219 (4G6.0+2x(2x1.5)C)C 18.5 10 PVC M.I. 05 MAT9295142 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PUR M.I. 07 MAT9296151 (4G6.0+2x(2x1.5)C)C 19.5 7.5 PUR O.I. 06 MAT9880227 (4G6.0+2x(2x1.5)C)C 18.5 10
448118 PUR M.I. 07 MAT9296141 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PVC O.I. 04 MAT9780210 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9295135 (4G6.0+2x(2x1.5)C)C 21.0 7.5 36 A Extension cable, SpeedTec
PUR O.I. 06 MAT9880220 (4G6.0+2x(2x1.5)C)C 18.5 10
PUR M.I. 07 MAT9296134 (4G6.0+2x(2x1.5)C)C 19.5 7.5 448080
PVC O.I. 04 MAT9780218 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9297083 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PUR O.I. 06 MAT9880228 (4G6.0+2x(2x1.5)C)C 18.5 10
PUR M.I. 07 MAT9298083 (4G6.0+2x(2x1.5)C)C 19.5 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
