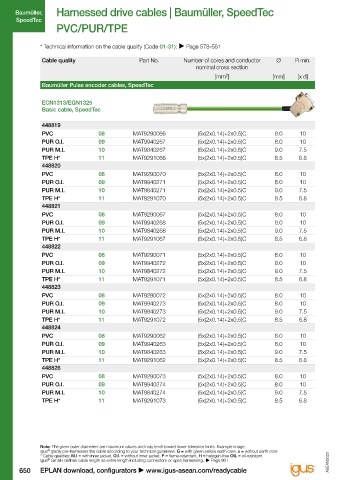

Page 656 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Baumüller, SpeedTec Harnessed drive cables | Baumüller, SpeedTec
Baumüller, Baumüller,
SpeedTec SpeedTec
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Pulse encoder cables, SpeedTec Baumüller Pulse encoder cables, SpeedTec
448827
ECN1313/EQN1325 PVC 08 MAT9290064 (5x(2x0.14)+2x0.5)C 8.0 10
Basic cable, SpeedTec PUR O.I. 09 MAT9940265 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840265 (5x(2x0.14)+2x0.5)C 9.0 7.5
448819 TPE H* 11 MAT9291064 (5x(2x0.14)+2x0.5)C 8.5 6.8
PVC 08 MAT9290066 (5x(2x0.14)+2x0.5)C 8.0 10 448828
PUR O.I. 09 MAT9940267 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290068 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840267 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR O.I. 09 MAT9940269 (5x(2x0.14)+2x0.5)C 8.0 10
TPE H* 11 MAT9291066 (5x(2x0.14)+2x0.5)C 8.5 6.8 PUR M.I. 10 MAT9840269 (5x(2x0.14)+2x0.5)C 9.0 7.5
448820 TPE H* 11 MAT9291068 (5x(2x0.14)+2x0.5)C 8.5 6.8
PVC 08 MAT9290070 (5x(2x0.14)+2x0.5)C 8.0 10 448830
PUR O.I. 09 MAT9940271 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290065 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840271 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR O.I. 09 MAT9940266 (5x(2x0.14)+2x0.5)C 8.0 10
TPE H* 11 MAT9291070 (5x(2x0.14)+2x0.5)C 8.5 6.8 PUR M.I. 10 MAT9840266 (5x(2x0.14)+2x0.5)C 9.0 7.5
448821 TPE H* 11 MAT9291065 (5x(2x0.14)+2x0.5)C 8.5 6.8
PVC 08 MAT9290067 (5x(2x0.14)+2x0.5)C 8.0 10 448832
PUR O.I. 09 MAT9940268 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290063 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840268 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR O.I. 09 MAT9940264 (5x(2x0.14)+2x0.5)C 8.0 10
TPE H* 11 MAT9291067 (5x(2x0.14)+2x0.5)C 8.5 6.8 PUR M.I. 10 MAT9840264 (5x(2x0.14)+2x0.5)C 9.0 7.5
448822 TPE H* 11 MAT9291063 (5x(2x0.14)+2x0.5)C 8.5 6.8
PVC 08 MAT9290071 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940272 (5x(2x0.14)+2x0.5)C 8.0 10 ECN1313/EQN1325
PUR M.I. 10 MAT9840272 (5x(2x0.14)+2x0.5)C 9.0 7.5 Extension cable, SpeedTec
TPE H* 11 MAT9291071 (5x(2x0.14)+2x0.5)C 8.5 6.8 448816
448823 PVC 08 MAT9292050 (5x(2x0.14)+2x0.5)C 8.0 10
PVC 08 MAT9290072 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940277 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940273 (5x(2x0.14)+2x0.5)C 8.0 10 PUR M.I. 10 MAT9840277 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 10 MAT9840273 (5x(2x0.14)+2x0.5)C 9.0 7.5 TPE H* 11 MAT9293050 (5x(2x0.14)+2x0.5)C 8.5 6.8
TPE H* 11 MAT9291072 (5x(2x0.14)+2x0.5)C 8.5 6.8
448824
PVC 08 MAT9290062 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940263 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840263 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291062 (5x(2x0.14)+2x0.5)C 8.5 6.8
448826
PVC 08 MAT9290073 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940274 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840274 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291073 (5x(2x0.14)+2x0.5)C 8.5 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
650 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 651
®
