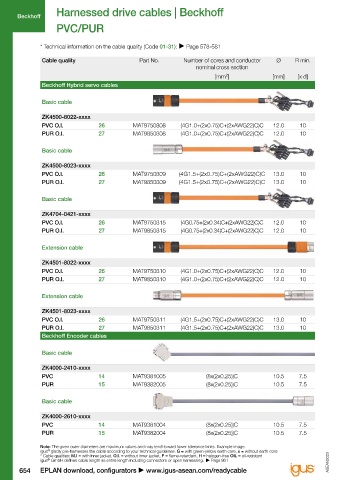

Harnessed drive cables | Beckhoff Harnessed drive cables | Beckhoff
Beckhoff Beckhoff
PVC/PUR PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Beckhoff Hybrid servo cables Beckhoff Encoder cables

Basic cable Basic cable

ZK4500-8022-xxxx ZK4510-0020-xxxx
PVC O.I. 26 MAT9750308 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 PVC 14 MAT9381001 (8x(2x0.25))C 10.5 7.5
PUR O.I. 27 MAT9850308 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 PUR 15 MAT9382001 (8x(2x0.25))C 10.5 7.5

Basic cable Basic cable

ZK4500-8023-xxxx ZK4520-0020-xxxx
PVC O.I. 26 MAT9750309 (4G1.5+(2x0.75)C+(2xAWG22)C)C 13.0 10 PVC 14 MAT9381002 (6x(2x0.25))C 9.0 7.5
PUR O.I. 27 MAT9850309 (4G1.5+(2x0.75)C+(2xAWG22)C)C 13.0 10 PUR 15 MAT9382002 (6x(2x0.25))C 9.0 7.5

Basic cable Extension cable

ZK4704-0421-xxxx ZK4511-0020-xxxx
PVC O.I. 26 MAT9750315 (4G0.75+(2x0.34)C+(2xAWG22)C)C 12.0 10 PVC 14 MAT9381003 (8x(2x0.25))C 10.5 7.5
PUR O.I. 27 MAT9850315 (4G0.75+(2x0.34)C+(2xAWG22)C)C 12.0 10 PUR 15 MAT9382003 (8x(2x0.25))C 10.5 7.5
Beckhoff Thermal protection cables
Extension cable
Basic cable
ZK4501-8022-xxxx
PVC O.I. 26 MAT9750310 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 ZK4000-2510-xxxx
PUR O.I. 27 MAT9850310 (4G1.0+(2x0.75)C+(2xAWG22)C)C 12.0 10 PVC 14 MAT9386001 (2x0.25)C 5.0 7.5
TPE H* 11 MAT9387001 (4x0.34)C 6.0 6.8
Extension cable Beckhoff Resolver cables

ZK4501-8023-xxxx Basic cable
PVC O.I. 26 MAT9750311 (4G1.5+(2x0.75)C+(2xAWG22)C)C 13.0 10
PUR O.I. 27 MAT9850311 (4G1.5+(2x0.75)C+(2xAWG22)C)C 13.0 10 ZK4000-2210-xxxx
Beckhoff Encoder cables PVC 14 MAT9383003 (4x(2x0.25))C 7.5 7.5
PUR 15 MAT9384003 (4x(2x0.25))C 7.5 7.5
Basic cable TPE H* 16 MAT9920303 (4x(2x0.25))C 8.5 6.8

ZK4000-2410-xxxx Basic cable
PVC 14 MAT9381005 (8x(2x0.25))C 10.5 7.5
PUR 15 MAT9382005 (8x(2x0.25))C 10.5 7.5 ZK4530-0010-xxxx
PVC 14 MAT9383001 (4x(2x0.25))C 7.5 7.5
Basic cable PUR 15 MAT9384001 (4x(2x0.25))C 7.5 7.5
TPE H* 16 MAT9920301 (4x(2x0.25))C 8.5 6.8
ZK4000-2610-xxxx
PVC 14 MAT9381004 (8x(2x0.25))C 10.5 7.5
PUR 15 MAT9382004 (8x(2x0.25))C 10.5 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
