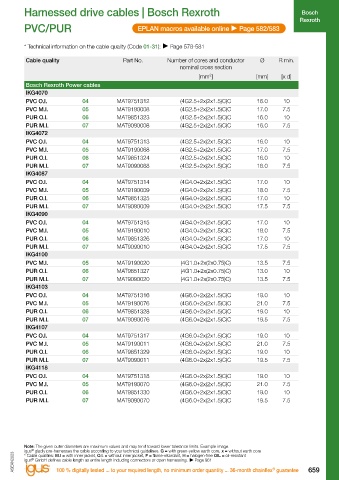

Harnessed drive cables | Bosch Rexroth Harnessed drive cables | Bosch Rexroth
Bosch Bosch
Rexroth Rexroth
PVC/PUR EPLAN macros available online  Page 582/583 PVC/PUR EPLAN macros available online  Page 582/583

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Bosch Rexroth Power cables Bosch Rexroth Power cables
IKG4070
Basic cable PVC O.I. 04 MAT9751312 (4G2.5+2x(2x1.5)C)C 16.0 10
PVC M.I. 05 MAT9190008 (4G2.5+2x(2x1.5)C)C 17.0 7.5
IKG0331 PUR O.I. 06 MAT9851323 (4G2.5+2x(2x1.5)C)C 16.0 10
PVC M.I. 05 MAT9190014 (4G0.75+(2x0.5)C)C 11.0 7.5 PUR M.I. 07 MAT9090008 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PUR M.I. 07 MAT9090014 (4G0.75+(2x0.5)C)C 11.5 7.5 IKG4072
IKG4008 PVC O.I. 04 MAT9751313 (4G2.5+2x(2x1.5)C)C 16.0 10
PVC M.I. 05 MAT9190064 (4G1.0+2x(2x0.75)C) 13.5 7.5 PVC M.I. 05 MAT9190068 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PUR O.I. 06 MAT9851315 (4G1.0+2x(2x0.75)C) 13.0 10 PUR O.I. 06 MAT9851324 (4G2.5+2x(2x1.5)C)C 16.0 10
PUR M.I. 07 MAT9090064 (4G1.0+2x(2x0.75)C) 13.5 7.5 PUR M.I. 07 MAT9090068 (4G2.5+2x(2x1.5)C)C 16.0 7.5
IKG4009 IKG4087
PVC M.I. 05 MAT9190001 (4G1.0+2x(2x0.75)C) 13.5 7.5 PVC O.I. 04 MAT9751314 (4G4.0+2x(2x1.5)C)C 17.0 10
PUR O.I. 06 MAT9851316 (4G1.0+2x(2x0.75)C) 13.0 10 PVC M.I. 05 MAT9190009 (4G4.0+2x(2x1.5)C)C 18.0 7.5
PUR M.I. 07 MAT9090001 (4G1.0+2x(2x0.75)C) 13.5 7.5 PUR O.I. 06 MAT9851325 (4G4.0+2x(2x1.5)C)C 17.0 10
IKG4017 PUR M.I. 07 MAT9090009 (4G4.0+2x(2x1.5)C)C 17.5 7.5
PVC M.I. 05 MAT9190002 (4G1.0+2x(2x0.75)C) 13.5 7.5 IKG4090
PUR O.I. 06 MAT9851317 (4G1.0+2x(2x0.75)C) 13.0 10 PVC O.I. 04 MAT9751315 (4G4.0+2x(2x1.5)C)C 17.0 10
PUR M.I. 07 MAT9090002 (4G1.0+2x(2x0.75)C) 13.5 7.5 PVC M.I. 05 MAT9190010 (4G4.0+2x(2x1.5)C)C 18.0 7.5
IKG4018 PUR O.I. 06 MAT9851326 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC M.I. 05 MAT9190003 (4G1.0+2x(2x0.75)C) 13.5 7.5 PUR M.I. 07 MAT9090010 (4G4.0+2x(2x1.5)C)C 17.5 7.5
PUR O.I. 06 MAT9851318 (4G1.0+2x(2x0.75)C) 13.0 10 IKG4100
PUR M.I. 07 MAT9090003 (4G1.0+2x(2x0.75)C) 13.5 7.5 PVC M.I. 05 MAT9190020 (4G1.0+2x(2x0.75)C) 13.5 7.5
IKG4020 PUR O.I. 06 MAT9851327 (4G1.0+2x(2x0.75)C) 13.0 10
PVC M.I. 05 MAT9190004 (4G1.0+2x(2x0.75)C) 13.5 7.5 PUR M.I. 07 MAT9090020 (4G1.0+2x(2x0.75)C) 13.5 7.5
PUR O.I. 06 MAT9851319 (4G1.0+2x(2x0.75)C) 13.0 10 IKG4103
PUR M.I. 07 MAT9090004 (4G1.0+2x(2x0.75)C) 13.5 7.5 PVC O.I. 04 MAT9751316 (4G6.0+2x(2x1.5)C)C 19.0 10
IKG4055 PVC M.I. 05 MAT9190076 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PVC O.I. 04 MAT9751309 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR O.I. 06 MAT9851328 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9190005 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PUR M.I. 07 MAT9090076 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PUR O.I. 06 MAT9851320 (4G1.5+2x(2x0.75)C)C 13.5 10 IKG4107
PUR M.I. 07 MAT9090005 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC O.I. 04 MAT9751317 (4G6.0+2x(2x1.5)C)C 19.0 10
IKG4060 PVC M.I. 05 MAT9190011 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PVC O.I. 04 MAT9751310 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR O.I. 06 MAT9851329 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9190006 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PUR M.I. 07 MAT9090011 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PUR O.I. 06 MAT9851321 (4G1.5+2x(2x0.75)C)C 13.5 10 IKG4118
PUR M.I. 07 MAT9090006 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC O.I. 04 MAT9751318 (4G6.0+2x(2x1.5)C)C 19.0 10
IKG4067 PVC M.I. 05 MAT9190070 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PVC O.I. 04 MAT9751311 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT9851330 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9190007 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR M.I. 07 MAT9090070 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PUR O.I. 06 MAT9851322 (4G2.5+2x(2x1.5)C)C 16.0 10
PUR M.I. 07 MAT9090007 (4G2.5+2x(2x1.5)C)C 16.0 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
658 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 659
®
