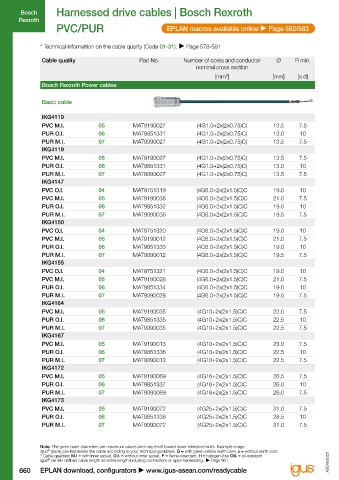

Harnessed drive cables | Bosch Rexroth Harnessed drive cables | Bosch Rexroth
Bosch Bosch
Rexroth Rexroth
PVC/PUR EPLAN macros available online Page 582/583 PVC/PUR EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Bosch Rexroth Power cables Bosch Rexroth Power cables
IKG4186
Basic cable PVC M.I. 05 MAT9190021 (4G16+2x(2x1.5)C)C 26.5 7.5
PUR O.I. 06 MAT9851339 (4G16+2x(2x1.5)C)C 26.0 10
IKG4119 PUR M.I. 07 MAT9090021 (4G16+2x(2x1.5)C)C 26.0 7.5
PVC M.I. 05 MAT9190027 (4G1.0+2x(2x0.75)C) 13.5 7.5 IKG4200
PUR O.I. 06 MAT9851331 (4G1.0+2x(2x0.75)C) 13.0 10 PVC M.I. 05 MAT9190032 (4G16+2x(2x1.5)C)C 26.5 7.5
PUR M.I. 07 MAT9090027 (4G1.0+2x(2x0.75)C) 13.5 7.5 PUR O.I. 06 MAT9851340 (4G16+2x(2x1.5)C)C 26.0 10
IKG4119 PUR M.I. 07 MAT9090032 (4G16+2x(2x1.5)C)C 26.0 7.5
PVC M.I. 05 MAT9190027 (4G1.0+2x(2x0.75)C) 13.5 7.5 IKG4204
PUR O.I. 06 MAT9851331 (4G1.0+2x(2x0.75)C) 13.0 10 PVC M.I. 05 MAT9190052 (4G25+2x(2x1.5)C)C 31.0 7.5
PUR M.I. 07 MAT9090027 (4G1.0+2x(2x0.75)C) 13.5 7.5 PUR O.I. 06 MAT9851341 (4G25+2x(2x1.5)C)C 28.5 10
IKG4147 PUR M.I. 07 MAT9090052 (4G25+2x(2x1.5)C)C 31.0 7.5
PVC O.I. 04 MAT9751319 (4G6.0+2x(2x1.5)C)C 19.0 10 IKL0001
PVC M.I. 05 MAT9190038 (4G6.0+2x(2x1.5)C)C 21.0 7.5 PVC M.I. 05 MAT9190022 (4G1.0+2x(2x0.75)C) 13.5 7.5
PUR O.I. 06 MAT9851332 (4G6.0+2x(2x1.5)C)C 19.0 10 PUR O.I. 06 MAT9851301 (4G1.0+2x(2x0.75)C) 13.0 10
PUR M.I. 07 MAT9090038 (4G6.0+2x(2x1.5)C)C 19.5 7.5 PUR M.I. 07 MAT9090022 (4G1.0+2x(2x0.75)C) 13.5 7.5
IKG4150 IKL0002
PVC O.I. 04 MAT9751320 (4G6.0+2x(2x1.5)C)C 19.0 10 PVC M.I. 05 MAT9751354 (4G1.0+2x(2x0.75)C) 13.5 7.5
PVC M.I. 05 MAT9190012 (4G6.0+2x(2x1.5)C)C 21.0 7.5 PUR O.I. 06 MAT9851385 (4G1.0+2x(2x0.75)C) 13.0 10
PUR O.I. 06 MAT9851333 (4G6.0+2x(2x1.5)C)C 19.0 10 PUR M.I. 07 MAT9851384 (4G1.0+2x(2x0.75)C) 13.5 7.5
PUR M.I. 07 MAT9090012 (4G6.0+2x(2x1.5)C)C 19.5 7.5 IKL0006
IKG4155 PVC M.I. 05 MAT9190067 (4G1.0+2x(2x0.75)C) 13.5 7.5
PVC O.I. 04 MAT9751321 (4G6.0+2x(2x1.5)C)C 19.0 10 PUR O.I. 06 MAT9851302 (4G1.0+2x(2x0.75)C) 13.0 10
PVC M.I. 05 MAT9190028 (4G6.0+2x(2x1.5)C)C 21.0 7.5 PUR M.I. 07 MAT9090067 (4G1.0+2x(2x0.75)C) 13.5 7.5
PUR O.I. 06 MAT9851334 (4G6.0+2x(2x1.5)C)C 19.0 10 IKL0011
PUR M.I. 07 MAT9090028 (4G6.0+2x(2x1.5)C)C 19.5 7.5 PVC M.I. 05 MAT9190023 (4G1.0+2x(2x0.75)C) 13.5 7.5
IKG4164 PUR O.I. 06 MAT9851303 (4G1.0+2x(2x0.75)C) 13.0 10
PVC M.I. 05 MAT9190035 (4G10+2x(2x1.5)C)C 23.0 7.5 PUR M.I. 07 MAT9090023 (4G1.0+2x(2x0.75)C) 13.5 7.5
PUR O.I. 06 MAT9851335 (4G10+2x(2x1.5)C)C 22.5 10 IKL0012
PUR M.I. 07 MAT9090035 (4G10+2x(2x1.5)C)C 22.5 7.5 PVC M.I. 05 MAT9751355 (4G1.0+2x(2x0.75)C) 13.5 7.5
IKG4167 PUR O.I. 06 MAT9851387 (4G1.0+2x(2x0.75)C) 13.0 10
PVC M.I. 05 MAT9190013 (4G10+2x(2x1.5)C)C 23.0 7.5 PUR M.I. 07 MAT9851386 (4G1.0+2x(2x0.75)C) 13.5 7.5
PUR O.I. 06 MAT9851336 (4G10+2x(2x1.5)C)C 22.5 10 IKL0021
PUR M.I. 07 MAT9090013 (4G10+2x(2x1.5)C)C 22.5 7.5 PVC O.I. 04 MAT9751301 (4G1.5+2x(2x0.75)C)C 13.5 10
IKG4172 PVC M.I. 05 MAT9190024 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PVC M.I. 05 MAT9190069 (4G16+2x(2x1.5)C)C 26.5 7.5 PUR O.I. 06 MAT9851304 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR O.I. 06 MAT9851337 (4G16+2x(2x1.5)C)C 26.0 10 PUR M.I. 07 MAT9090024 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR M.I. 07 MAT9090069 (4G16+2x(2x1.5)C)C 26.0 7.5 IKL0022
IKG4173 PVC O.I. 04 MAT9751357 (4G1.5+2x(2x0.75)C)C 13.5 10
PVC M.I. 05 MAT9190072 (4G25+2x(2x1.5)C)C 31.0 7.5 PVC M.I. 05 MAT9751356 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR O.I. 06 MAT9851338 (4G25+2x(2x1.5)C)C 28.5 10 PUR O.I. 06 MAT9851389 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9090072 (4G25+2x(2x1.5)C)C 31.0 7.5 PUR M.I. 07 MAT9851388 (4G1.5+2x(2x0.75)C)C 14.5 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
