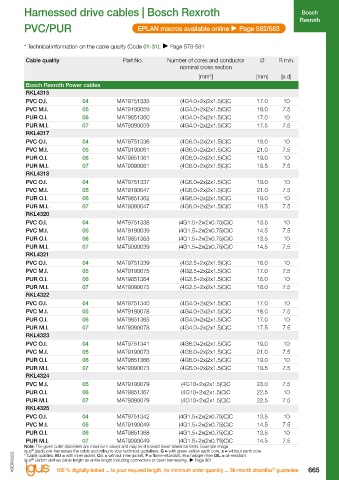

Page 671 - ASEAN Chainflex Catalogue 2023
P. 671
Harnessed drive cables | Bosch Rexroth Harnessed drive cables | Bosch Rexroth
Bosch Bosch
Rexroth Rexroth
PVC/PUR EPLAN macros available online Page 582/583 PVC/PUR EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Bosch Rexroth Power cables Bosch Rexroth Power cables
RKL4315
Basic cable PVC O.I. 04 MAT9751335 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC M.I. 05 MAT9190059 (4G4.0+2x(2x1.5)C)C 18.0 7.5
RKL4303 PUR O.I. 06 MAT9851360 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC M.I. 05 MAT9190029 (4G1.0+2x(2x0.75)C) 13.5 7.5 PUR M.I. 07 MAT9090059 (4G4.0+2x(2x1.5)C)C 17.5 7.5
PUR O.I. 06 MAT9851352 (4G1.0+2x(2x0.75)C) 13.0 10 RKL4317
PUR M.I. 07 MAT9090029 (4G1.0+2x(2x0.75)C) 13.5 7.5 PVC O.I. 04 MAT9751336 (4G6.0+2x(2x1.5)C)C 19.0 10
RKL4306 PVC M.I. 05 MAT9190061 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PVC O.I. 04 MAT9751328 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR O.I. 06 MAT9851361 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9190040 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PUR M.I. 07 MAT9090061 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PUR O.I. 06 MAT9851353 (4G1.5+2x(2x0.75)C)C 13.5 10 RKL4318
PUR M.I. 07 MAT9090040 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC O.I. 04 MAT9751337 (4G6.0+2x(2x1.5)C)C 19.0 10
RKL4307 PVC M.I. 05 MAT9190047 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PVC O.I. 04 MAT9751329 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR O.I. 06 MAT9851362 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9190041 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PUR M.I. 07 MAT9090047 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PUR O.I. 06 MAT9851354 (4G1.5+2x(2x0.75)C)C 13.5 10 RKL4320
PUR M.I. 07 MAT9090041 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC O.I. 04 MAT9751338 (4G1.5+2x(2x0.75)C)C 13.5 10
RKL4308 PVC M.I. 05 MAT9190039 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PVC O.I. 04 MAT9751330 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT9851363 (4G1.5+2x(2x0.75)C)C 13.5 10
PVC M.I. 05 MAT9190033 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR M.I. 07 MAT9090039 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR O.I. 06 MAT9851355 (4G2.5+2x(2x1.5)C)C 16.0 10 RKL4321
PUR M.I. 07 MAT9090033 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PVC O.I. 04 MAT9751339 (4G2.5+2x(2x1.5)C)C 16.0 10
RKL4309 PVC M.I. 05 MAT9190075 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PVC O.I. 04 MAT9751331 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT9851364 (4G2.5+2x(2x1.5)C)C 16.0 10
PVC M.I. 05 MAT9190042 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR M.I. 07 MAT9090075 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9851356 (4G2.5+2x(2x1.5)C)C 16.0 10 RKL4322
PUR M.I. 07 MAT9090042 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PVC O.I. 04 MAT9751340 (4G4.0+2x(2x1.5)C)C 17.0 10
RKL4310 PVC M.I. 05 MAT9190078 (4G4.0+2x(2x1.5)C)C 18.0 7.5
PVC O.I. 04 MAT9751332 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT9851365 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC M.I. 05 MAT9190043 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR M.I. 07 MAT9090078 (4G4.0+2x(2x1.5)C)C 17.5 7.5
PUR O.I. 06 MAT9851357 (4G2.5+2x(2x1.5)C)C 16.0 10 RKL4323
PUR M.I. 07 MAT9090043 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PVC O.I. 04 MAT9751341 (4G6.0+2x(2x1.5)C)C 19.0 10
RKL4313 PVC M.I. 05 MAT9190073 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PVC O.I. 04 MAT9751333 (4G4.0+2x(2x1.5)C)C 17.0 10 PUR O.I. 06 MAT9851366 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9190062 (4G4.0+2x(2x1.5)C)C 18.0 7.5 PUR M.I. 07 MAT9090073 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PUR O.I. 06 MAT9851358 (4G4.0+2x(2x1.5)C)C 17.0 10 RKL4324
PUR M.I. 07 MAT9090062 (4G4.0+2x(2x1.5)C)C 17.5 7.5 PVC M.I. 05 MAT9190079 (4G10+2x(2x1.5)C)C 23.0 7.5
RKL4314 PUR O.I. 06 MAT9851367 (4G10+2x(2x1.5)C)C 22.5 10
PVC O.I. 04 MAT9751334 (4G4.0+2x(2x1.5)C)C 17.0 10 PUR M.I. 07 MAT9090079 (4G10+2x(2x1.5)C)C 22.5 7.5
PVC M.I. 05 MAT9190060 (4G4.0+2x(2x1.5)C)C 18.0 7.5 RKL4325
PUR O.I. 06 MAT9851359 (4G4.0+2x(2x1.5)C)C 17.0 10 PVC O.I. 04 MAT9751342 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9090060 (4G4.0+2x(2x1.5)C)C 17.5 7.5 PVC M.I. 05 MAT9190049 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR O.I. 06 MAT9851368 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9090049 (4G1.5+2x(2x0.75)C)C 14.5 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
664 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 665
®
