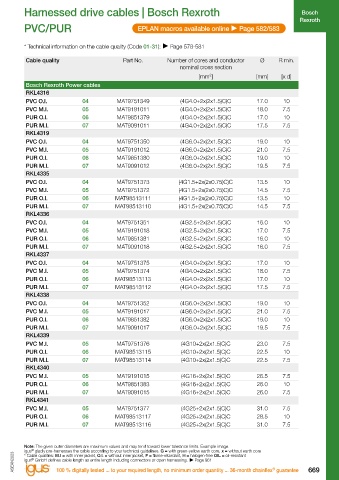

Page 675 - ASEAN Chainflex Catalogue 2023
P. 675
Harnessed drive cables | Bosch Rexroth Harnessed drive cables | Bosch Rexroth
Bosch Bosch
Rexroth Rexroth
PVC/PUR EPLAN macros available online Page 582/583 PVC/PUR EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Bosch Rexroth Power cables Bosch Rexroth Power cables
RKL4316
Linking cable with adapter plug PVC O.I. 04 MAT9751349 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC M.I. 05 MAT9191011 (4G4.0+2x(2x1.5)C)C 18.0 7.5
IKL0023 PUR O.I. 06 MAT9851379 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC O.I. 04 MAT9751307 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR M.I. 07 MAT9091011 (4G4.0+2x(2x1.5)C)C 17.5 7.5
PVC M.I. 05 MAT9191013 (4G1.5+2x(2x0.75)C)C 14.5 7.5 RKL4319
PUR O.I. 06 MAT9851312 (4G1.5+2x(2x0.75)C)C 13.5 10 PVC O.I. 04 MAT9751350 (4G6.0+2x(2x1.5)C)C 19.0 10
PUR M.I. 07 MAT9091013 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC M.I. 05 MAT9191012 (4G6.0+2x(2x1.5)C)C 21.0 7.5
IKL0089 PUR O.I. 06 MAT9851380 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC O.I. 04 MAT9751308 (4G6.0+2x(2x1.5)C)C 19.0 10 PUR M.I. 07 MAT9091012 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PVC M.I. 05 MAT9191005 (4G6.0+2x(2x1.5)C)C 21.0 7.5 RKL4335
PUR O.I. 06 MAT9851313 (4G6.0+2x(2x1.5)C)C 19.0 10 PVC O.I. 04 MAT9751373 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9091005 (4G6.0+2x(2x1.5)C)C 19.5 7.5 PVC M.I. 05 MAT9751372 (4G1.5+2x(2x0.75)C)C 14.5 7.5
IKL0168 PUR O.I. 06 MAT98513111 (4G1.5+2x(2x0.75)C)C 13.5 10
PVC M.I. 05 MAT9191006 (4G25+2x(2x1.5)C)C 31.0 7.5 PUR M.I. 07 MAT98513110 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR O.I. 06 MAT9851314 (4G25+2x(2x1.5)C)C 28.5 10 RKL4336
PUR M.I. 07 MAT9091006 (4G25+2x(2x1.5)C)C 31.0 7.5 PVC O.I. 04 MAT9751351 (4G2.5+2x(2x1.5)C)C 16.0 10
RKL0035 PVC M.I. 05 MAT9191018 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PVC M.I. 05 MAT9751371 (4G0.75+(2x0.5)C)C 11.0 7.5 PUR O.I. 06 MAT9851381 (4G2.5+2x(2x1.5)C)C 16.0 10
PUR M.I. 07 MAT98513109 (4G0.75+(2x0.5)C)C 11.5 7.5 PUR M.I. 07 MAT9091018 (4G2.5+2x(2x1.5)C)C 16.0 7.5
RKL4304 RKL4337
PVC O.I. 04 MAT9751346 (4G1.5+2x(2x0.75)C)C 13.5 10 PVC O.I. 04 MAT9751375 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC M.I. 05 MAT9191007 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC M.I. 05 MAT9751374 (4G4.0+2x(2x1.5)C)C 18.0 7.5
PUR O.I. 06 MAT9851375 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR O.I. 06 MAT98513113 (4G4.0+2x(2x1.5)C)C 17.0 10
PUR M.I. 07 MAT9091007 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PUR M.I. 07 MAT98513112 (4G4.0+2x(2x1.5)C)C 17.5 7.5
RKL4305 RKL4338
PVC M.I. 05 MAT9191008 (4G1.0+2x(2x0.75)C) 13.5 7.5 PVC O.I. 04 MAT9751352 (4G6.0+2x(2x1.5)C)C 19.0 10
PUR O.I. 06 MAT9851376 (4G1.0+2x(2x0.75)C) 13.0 10 PVC M.I. 05 MAT9191017 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PUR M.I. 07 MAT9091008 (4G1.0+2x(2x0.75)C) 13.5 7.5 PUR O.I. 06 MAT9851382 (4G6.0+2x(2x1.5)C)C 19.0 10
RKL4311 PUR M.I. 07 MAT9091017 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PVC O.I. 04 MAT9751347 (4G1.5+2x(2x0.75)C)C 13.5 10 RKL4339
PVC M.I. 05 MAT9191009 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC M.I. 05 MAT9751376 (4G10+2x(2x1.5)C)C 23.0 7.5
PUR O.I. 06 MAT9851377 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR O.I. 06 MAT98513115 (4G10+2x(2x1.5)C)C 22.5 10
PUR M.I. 07 MAT9091009 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PUR M.I. 07 MAT98513114 (4G10+2x(2x1.5)C)C 22.5 7.5
RKL4340
Extension cable PVC M.I. 05 MAT9191015 (4G16+2x(2x1.5)C)C 26.5 7.5
PUR O.I. 06 MAT9851383 (4G16+2x(2x1.5)C)C 26.0 10
RKL4312 PUR M.I. 07 MAT9091015 (4G16+2x(2x1.5)C)C 26.0 7.5
PVC O.I. 04 MAT9751348 (4G2.5+2x(2x1.5)C)C 16.0 10 RKL4341
PVC M.I. 05 MAT9191010 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PVC M.I. 05 MAT9751377 (4G25+2x(2x1.5)C)C 31.0 7.5
PUR O.I. 06 MAT9851378 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT98513117 (4G25+2x(2x1.5)C)C 28.5 10
PUR M.I. 07 MAT9091010 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PUR M.I. 07 MAT98513116 (4G25+2x(2x1.5)C)C 31.0 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
668 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 669
®
