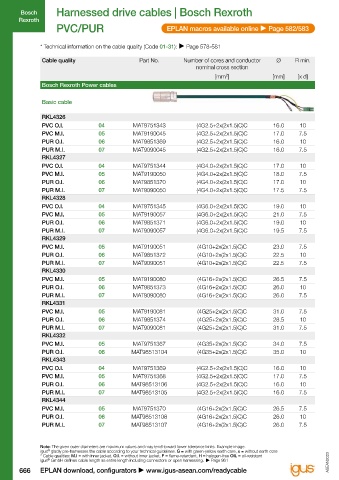

Page 672 - ASEAN Chainflex Catalogue 2023
P. 672
Harnessed drive cables | Bosch Rexroth Harnessed drive cables | Bosch Rexroth
Bosch Bosch
Rexroth Rexroth
PVC/PUR EPLAN macros available online Page 582/583 PVC/PUR EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Bosch Rexroth Power cables Bosch Rexroth Power cables
Basic cable Linking cable with adapter plug
RKL4326 IKG0332
PVC O.I. 04 MAT9751343 (4G2.5+2x(2x1.5)C)C 16.0 10 PVC M.I. 05 MAT9190015 (4G0.75+(2x0.5)C)C 11.0 7.5
PVC M.I. 05 MAT9190045 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR M.I. 07 MAT9090015 (4G0.75+(2x0.5)C)C 11.5 7.5
PUR O.I. 06 MAT9851369 (4G2.5+2x(2x1.5)C)C 16.0 10 IKG4006
PUR M.I. 07 MAT9090045 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PVC M.I. 05 MAT9191001 (4G1.0+2x(2x0.75)C) 13.5 7.5
RKL4327 PUR O.I. 06 MAT9851342 (4G1.0+2x(2x0.75)C) 13.0 10
PVC O.I. 04 MAT9751344 (4G4.0+2x(2x1.5)C)C 17.0 10 PUR M.I. 07 MAT9091001 (4G1.0+2x(2x0.75)C) 13.5 7.5
PVC M.I. 05 MAT9190050 (4G4.0+2x(2x1.5)C)C 18.0 7.5 IKG4016
PUR O.I. 06 MAT9851370 (4G4.0+2x(2x1.5)C)C 17.0 10 PVC M.I. 05 MAT9191002 (4G1.0+2x(2x0.75)C) 13.5 7.5
PUR M.I. 07 MAT9090050 (4G4.0+2x(2x1.5)C)C 17.5 7.5 PUR O.I. 06 MAT9851343 (4G1.0+2x(2x0.75)C) 13.0 10
RKL4328 PUR M.I. 07 MAT9091002 (4G1.0+2x(2x0.75)C) 13.5 7.5
PVC O.I. 04 MAT9751345 (4G6.0+2x(2x1.5)C)C 19.0 10 IKG4061
PVC M.I. 05 MAT9190057 (4G6.0+2x(2x1.5)C)C 21.0 7.5 PVC O.I. 04 MAT9751322 (4G2.5+2x(2x1.5)C)C 16.0 10
PUR O.I. 06 MAT9851371 (4G6.0+2x(2x1.5)C)C 19.0 10 PVC M.I. 05 MAT9191004 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PUR M.I. 07 MAT9090057 (4G6.0+2x(2x1.5)C)C 19.5 7.5 PUR O.I. 06 MAT9851344 (4G2.5+2x(2x1.5)C)C 16.0 10
RKL4329 PUR M.I. 07 MAT9091004 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PVC M.I. 05 MAT9190051 (4G10+2x(2x1.5)C)C 23.0 7.5 IKG4074
PUR O.I. 06 MAT9851372 (4G10+2x(2x1.5)C)C 22.5 10 PVC O.I. 04 MAT9751323 (4G2.5+2x(2x1.5)C)C 16.0 10
PUR M.I. 07 MAT9090051 (4G10+2x(2x1.5)C)C 22.5 7.5 PVC M.I. 05 MAT9191014 (4G2.5+2x(2x1.5)C)C 17.0 7.5
RKL4330 PUR O.I. 06 MAT9851345 (4G2.5+2x(2x1.5)C)C 16.0 10
PVC M.I. 05 MAT9190080 (4G16+2x(2x1.5)C)C 26.5 7.5 PUR M.I. 07 MAT9091014 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9851373 (4G16+2x(2x1.5)C)C 26.0 10 IKG4081
PUR M.I. 07 MAT9090080 (4G16+2x(2x1.5)C)C 26.0 7.5 PVC O.I. 04 MAT9751324 (4G4.0+2x(2x1.5)C)C 17.0 10
RKL4331 PVC M.I. 05 MAT9191016 (4G4.0+2x(2x1.5)C)C 18.0 7.5
PVC M.I. 05 MAT9190081 (4G25+2x(2x1.5)C)C 31.0 7.5 PUR O.I. 06 MAT9851346 (4G4.0+2x(2x1.5)C)C 17.0 10
PUR O.I. 06 MAT9851374 (4G25+2x(2x1.5)C)C 28.5 10 PUR M.I. 07 MAT9091016 (4G4.0+2x(2x1.5)C)C 17.5 7.5
PUR M.I. 07 MAT9090081 (4G25+2x(2x1.5)C)C 31.0 7.5 IKG4141
RKL4332 PVC O.I. 04 MAT9751325 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9751367 (4G35+2x(2x1.5)C)C 34.0 7.5 PVC M.I. 05 MAT9191003 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PUR O.I. 06 MAT98513104 (4G35+2x(2x1.5)C)C 35.0 10 PUR O.I. 06 MAT9851347 (4G6.0+2x(2x1.5)C)C 19.0 10
RKL4343 PUR M.I. 07 MAT9091003 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PVC O.I. 04 MAT9751369 (4G2.5+2x(2x1.5)C)C 16.0 10 IKG4161
PVC M.I. 05 MAT9751368 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PVC M.I. 05 MAT9190036 (4G10+2x(2x1.5)C)C 23.0 7.5
PUR O.I. 06 MAT98513106 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR O.I. 06 MAT9851348 (4G10+2x(2x1.5)C)C 22.5 10
PUR M.I. 07 MAT98513105 (4G2.5+2x(2x1.5)C)C 16.0 7.5 PUR M.I. 07 MAT9090036 (4G10+2x(2x1.5)C)C 22.5 7.5
RKL4344 IKL0003
PVC M.I. 05 MAT9751370 (4G16+2x(2x1.5)C)C 26.5 7.5 PVC M.I. 05 MAT9751358 (4G1.0+2x(2x0.75)C) 13.5 7.5
PUR O.I. 06 MAT98513108 (4G16+2x(2x1.5)C)C 26.0 10 PUR O.I. 06 MAT9851391 (4G1.0+2x(2x0.75)C) 13.0 10
PUR M.I. 07 MAT98513107 (4G16+2x(2x1.5)C)C 26.0 7.5 PUR M.I. 07 MAT9851390 (4G1.0+2x(2x0.75)C) 13.5 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
®
666 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 667
®
