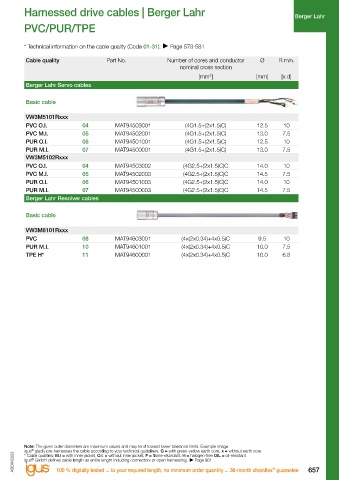

Harnessed drive cables | Beckhoff Harnessed drive cables | Berger Lahr
Beckhoff Berger Lahr
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Beckhoff Resolver cables Berger Lahr Servo cables

Basic cable Basic cable

ZK4530-8010-xxxx VW3M5101Rxxx
PVC 14 MAT9383005 (4x(2x0.25))C 7.5 7.5 PVC O.I. 04 MAT94503001 (4G1.5+(2x1.5)C) 12.5 10
PUR 15 MAT9384005 (4x(2x0.25))C 7.5 7.5 PVC M.I. 05 MAT94502001 (4G1.5+(2x1.5)C) 13.0 7.5
TPE H* 16 MAT9920306 (4x(2x0.25))C 8.5 6.8 PUR O.I. 06 MAT94501001 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT94500001 (4G1.5+(2x1.5)C) 13.0 7.5
Extension cable VW3M5102Rxxx
PVC O.I. 04 MAT94503002 (4G2.5+(2x1.5)C)C 14.0 10
ZK4531-0020-xxxx PVC M.I. 05 MAT94502003 (4G2.5+(2x1.5)C)C 14.5 7.5
PVC 14 MAT9383002 (4x(2x0.25))C 7.5 7.5 PUR O.I. 06 MAT94501003 (4G2.5+(2x1.5)C)C 14.0 10
PUR 15 MAT9384002 (4x(2x0.25))C 7.5 7.5 PUR M.I. 07 MAT94500003 (4G2.5+(2x1.5)C)C 14.5 7.5
TPE H* 16 MAT9920302 (4x(2x0.25))C 8.5 6.8 Berger Lahr Resolver cables

Extension cable Basic cable

ZK4724-0410-xxxx VW3M8101Rxxx
PVC 14 MAT9383004 (3x(2x0.25))C 7.0 7.5 PVC 08 MAT94603001 (4x(2x0.34)+4x0.5)C 9.5 10
PUR 15 MAT9384004 (3x(2x0.25))C 7.0 7.5 PUR M.I. 10 MAT94601001 (4x(2x0.34)+4x0.5)C 10.0 7.5
TPE H* 16 MAT9920305 (3x(2x0.25))C 8.0 6.8 TPE H* 11 MAT94600001 (4x(2x0.34)+4x0.5)C 10.0 6.8
Beckhoff Network cables EtherCAT

Basic cable

ZK1090-9191-xxxx
PUR 29 MAT9385003 (4x(2x0.15))C 7.5 12.5
TPE 12 MAT9385002 (4x(2x0.15))C 8.5 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
656 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 657
®
