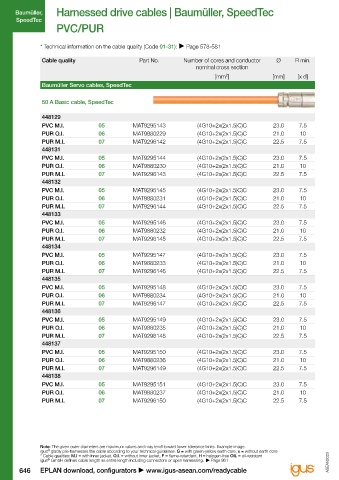

Page 652 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Baumüller, SpeedTec Harnessed drive cables | Baumüller, SpeedTec
Baumüller, Baumüller,
SpeedTec SpeedTec
PVC/PUR PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Servo cables, SpeedTec Baumüller Servo cables, SpeedTec

50 A Basic cable, SpeedTec 50 A Extension cable, SpeedTec

448129 448129
PVC M.I. 05 MAT9295143 (4G10+2x(2x1.5)C)C 23.0 7.5 PVC M.I. 05 MAT9297084 (4G10+2x(2x1.5)C)C 23.0 7.5
PUR O.I. 06 MAT9880229 (4G10+2x(2x1.5)C)C 21.0 10 PUR O.I. 06 MAT9880238 (4G10+2x(2x1.5)C)C 21.0 10
PUR M.I. 07 MAT9296142 (4G10+2x(2x1.5)C)C 22.5 7.5 PUR M.I. 07 MAT9298084 (4G10+2x(2x1.5)C)C 22.5 7.5
448131 Baumüller Resolver cables, SpeedTec
PVC M.I. 05 MAT9295144 (4G10+2x(2x1.5)C)C 23.0 7.5
PUR O.I. 06 MAT9880230 (4G10+2x(2x1.5)C)C 21.0 10 SRS/SRM50 & SKS/SKM36
PUR M.I. 07 MAT9296143 (4G10+2x(2x1.5)C)C 22.5 7.5 Basic cable, SpeedTec
448132
PVC M.I. 05 MAT9295145 (4G10+2x(2x1.5)C)C 23.0 7.5 448944
PUR O.I. 06 MAT9880231 (4G10+2x(2x1.5)C)C 21.0 10 PVC 08 MAT9290060 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 07 MAT9296144 (4G10+2x(2x1.5)C)C 22.5 7.5 PUR O.I. 09 MAT9940260 (5x(2x0.14)+2x0.5)C 8.0 10
448133 PUR M.I. 10 MAT9840260 (5x(2x0.14)+2x0.5)C 9.0 7.5
PVC M.I. 05 MAT9295146 (4G10+2x(2x1.5)C)C 23.0 7.5 TPE H* 11 MAT9291060 (5x(2x0.14)+2x0.5)C 8.5 6.8
PUR O.I. 06 MAT9880232 (4G10+2x(2x1.5)C)C 21.0 10 448945
PUR M.I. 07 MAT9296145 (4G10+2x(2x1.5)C)C 22.5 7.5 PVC 08 MAT9290057 (5x(2x0.14)+2x0.5)C 8.0 10
448134 PUR O.I. 09 MAT9940257 (5x(2x0.14)+2x0.5)C 8.0 10
PVC M.I. 05 MAT9295147 (4G10+2x(2x1.5)C)C 23.0 7.5 PUR M.I. 10 MAT9840257 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR O.I. 06 MAT9880233 (4G10+2x(2x1.5)C)C 21.0 10 TPE H* 11 MAT9291057 (5x(2x0.14)+2x0.5)C 8.5 6.8
PUR M.I. 07 MAT9296146 (4G10+2x(2x1.5)C)C 22.5 7.5 448946
448135 PVC 08 MAT9290056 (5x(2x0.14)+2x0.5)C 8.0 10
PVC M.I. 05 MAT9295148 (4G10+2x(2x1.5)C)C 23.0 7.5 PUR O.I. 09 MAT9940256 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 06 MAT9880234 (4G10+2x(2x1.5)C)C 21.0 10 PUR M.I. 10 MAT9840256 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 07 MAT9296147 (4G10+2x(2x1.5)C)C 22.5 7.5 TPE H* 11 MAT9291056 (5x(2x0.14)+2x0.5)C 8.5 6.8
448136 448948
PVC M.I. 05 MAT9295149 (4G10+2x(2x1.5)C)C 23.0 7.5 PVC 08 MAT9290045 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 06 MAT9880235 (4G10+2x(2x1.5)C)C 21.0 10 PUR O.I. 09 MAT9940245 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 07 MAT9296148 (4G10+2x(2x1.5)C)C 22.5 7.5 PUR M.I. 10 MAT9840245 (5x(2x0.14)+2x0.5)C 9.0 7.5
448137 TPE H* 11 MAT9291045 (5x(2x0.14)+2x0.5)C 8.5 6.8
PVC M.I. 05 MAT9295150 (4G10+2x(2x1.5)C)C 23.0 7.5 448949
PUR O.I. 06 MAT9880236 (4G10+2x(2x1.5)C)C 21.0 10 PVC 08 MAT9290046 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 07 MAT9296149 (4G10+2x(2x1.5)C)C 22.5 7.5 PUR O.I. 09 MAT9940246 (5x(2x0.14)+2x0.5)C 8.0 10
448138 PUR M.I. 10 MAT9840246 (5x(2x0.14)+2x0.5)C 9.0 7.5
PVC M.I. 05 MAT9295151 (4G10+2x(2x1.5)C)C 23.0 7.5 TPE H* 11 MAT9291046 (5x(2x0.14)+2x0.5)C 8.5 6.8
PUR O.I. 06 MAT9880237 (4G10+2x(2x1.5)C)C 21.0 10 448956
PUR M.I. 07 MAT9296150 (4G10+2x(2x1.5)C)C 22.5 7.5 PVC 08 MAT9290047 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940247 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840247 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291047 (5x(2x0.14)+2x0.5)C 8.5 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
