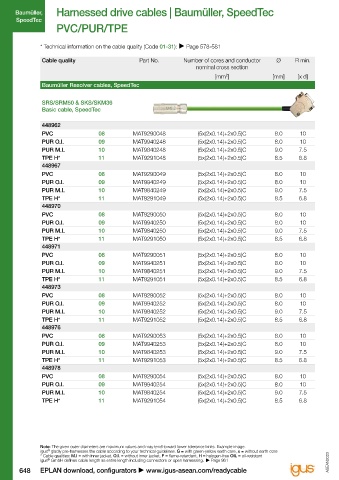

Page 654 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Baumüller, SpeedTec Harnessed drive cables | Baumüller, SpeedTec
Baumüller, Baumüller,
SpeedTec SpeedTec
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Resolver cables, SpeedTec Baumüller Resolver cables, SpeedTec
448980
SRS/SRM50 & SKS/SKM36 PVC 08 MAT9290055 (5x(2x0.14)+2x0.5)C 8.0 10
Basic cable, SpeedTec PUR O.I. 09 MAT9940255 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840255 (5x(2x0.14)+2x0.5)C 9.0 7.5
448962 TPE H* 11 MAT9291055 (5x(2x0.14)+2x0.5)C 8.5 6.8
PVC 08 MAT9290048 (5x(2x0.14)+2x0.5)C 8.0 10 448981
PUR O.I. 09 MAT9940248 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290058 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840248 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR O.I. 09 MAT9940258 (5x(2x0.14)+2x0.5)C 8.0 10
TPE H* 11 MAT9291048 (5x(2x0.14)+2x0.5)C 8.5 6.8 PUR M.I. 10 MAT9840258 (5x(2x0.14)+2x0.5)C 9.0 7.5
448967 TPE H* 11 MAT9291058 (5x(2x0.14)+2x0.5)C 8.5 6.8
PVC 08 MAT9290049 (5x(2x0.14)+2x0.5)C 8.0 10 448982
PUR O.I. 09 MAT9940249 (5x(2x0.14)+2x0.5)C 8.0 10 PVC 08 MAT9290059 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840249 (5x(2x0.14)+2x0.5)C 9.0 7.5 PUR O.I. 09 MAT9940259 (5x(2x0.14)+2x0.5)C 8.0 10
TPE H* 11 MAT9291049 (5x(2x0.14)+2x0.5)C 8.5 6.8 PUR M.I. 10 MAT9840259 (5x(2x0.14)+2x0.5)C 9.0 7.5
448970 TPE H* 11 MAT9291059 (5x(2x0.14)+2x0.5)C 8.5 6.8
PVC 08 MAT9290050 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940250 (5x(2x0.14)+2x0.5)C 8.0 10 SRS/SRM50 & SKS/SKM36
PUR M.I. 10 MAT9840250 (5x(2x0.14)+2x0.5)C 9.0 7.5 Extension cable, SpeedTec
TPE H* 11 MAT9291050 (5x(2x0.14)+2x0.5)C 8.5 6.8 448944
448971 PVC 08 MAT9292040 (5x(2x0.14)+2x0.5)C 8.0 10
PVC 08 MAT9290051 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940261 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940251 (5x(2x0.14)+2x0.5)C 8.0 10 PUR M.I. 10 MAT9840261 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 10 MAT9840251 (5x(2x0.14)+2x0.5)C 9.0 7.5 TPE H* 11 MAT9293040 (5x(2x0.14)+2x0.5)C 8.5 6.8
TPE H* 11 MAT9291051 (5x(2x0.14)+2x0.5)C 8.5 6.8 Baumüller Pulse encoder cables, SpeedTec
448973
PVC 08 MAT9290052 (5x(2x0.14)+2x0.5)C 8.0 10 ECN1313/EQN1325
PUR O.I. 09 MAT9940252 (5x(2x0.14)+2x0.5)C 8.0 10 Basic cable, SpeedTec
PUR M.I. 10 MAT9840252 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291052 (5x(2x0.14)+2x0.5)C 8.5 6.8 448816
448976 PVC 08 MAT9290069 (5x(2x0.14)+2x0.5)C 8.0 10
PVC 08 MAT9290053 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940270 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940253 (5x(2x0.14)+2x0.5)C 8.0 10 PUR M.I. 10 MAT9840270 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 10 MAT9840253 (5x(2x0.14)+2x0.5)C 9.0 7.5 TPE H* 11 MAT9291069 (5x(2x0.14)+2x0.5)C 8.5 6.8
TPE H* 11 MAT9291053 (5x(2x0.14)+2x0.5)C 8.5 6.8 448817
448978 PVC 08 MAT9290061 (5x(2x0.14)+2x0.5)C 8.0 10
PVC 08 MAT9290054 (5x(2x0.14)+2x0.5)C 8.0 10 PUR O.I. 09 MAT9940262 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940254 (5x(2x0.14)+2x0.5)C 8.0 10 PUR M.I. 10 MAT9840262 (5x(2x0.14)+2x0.5)C 9.0 7.5
PUR M.I. 10 MAT9840254 (5x(2x0.14)+2x0.5)C 9.0 7.5 TPE H* 11 MAT9291061 (5x(2x0.14)+2x0.5)C 8.5 6.8
TPE H* 11 MAT9291054 (5x(2x0.14)+2x0.5)C 8.5 6.8 448818
PVC 08 MAT9290075 (5x(2x0.14)+2x0.5)C 8.0 10
PUR O.I. 09 MAT9940276 (5x(2x0.14)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9840276 (5x(2x0.14)+2x0.5)C 9.0 7.5
TPE H* 11 MAT9291075 (5x(2x0.14)+2x0.5)C 8.5 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
648 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 649
®
