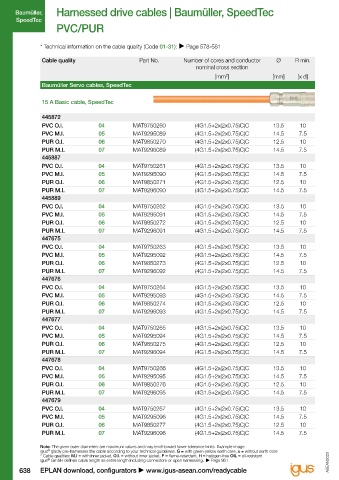

Page 644 - ASEAN Chainflex Catalogue 2023
P. 644
Harnessed drive cables | Baumüller, SpeedTec Harnessed drive cables | Baumüller, SpeedTec
Baumüller, Baumüller,
SpeedTec SpeedTec
PVC/PUR PVC/PUR
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Baumüller Servo cables, SpeedTec Baumüller Servo cables, SpeedTec
447680
15 A Basic cable, SpeedTec PVC O.I. 04 MAT9750268 (4G1.5+2x(2x0.75)C)C 13.5 10
PVC M.I. 05 MAT9295097 (4G1.5+2x(2x0.75)C)C 14.5 7.5
445872 PUR O.I. 06 MAT9850278 (4G1.5+2x(2x0.75)C)C 12.5 10
PVC O.I. 04 MAT9750260 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR M.I. 07 MAT9296097 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PVC M.I. 05 MAT9295089 (4G1.5+2x(2x0.75)C)C 14.5 7.5 447681
PUR O.I. 06 MAT9850270 (4G1.5+2x(2x0.75)C)C 12.5 10 PVC O.I. 04 MAT9750269 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9296089 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC M.I. 05 MAT9295098 (4G1.5+2x(2x0.75)C)C 14.5 7.5
445887 PUR O.I. 06 MAT9850279 (4G1.5+2x(2x0.75)C)C 12.5 10
PVC O.I. 04 MAT9750261 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR M.I. 07 MAT9296098 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PVC M.I. 05 MAT9295090 (4G1.5+2x(2x0.75)C)C 14.5 7.5 447682
PUR O.I. 06 MAT9850271 (4G1.5+2x(2x0.75)C)C 12.5 10 PVC O.I. 04 MAT9750270 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9296090 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC M.I. 05 MAT9295099 (4G1.5+2x(2x0.75)C)C 14.5 7.5
445889 PUR O.I. 06 MAT9850280 (4G1.5+2x(2x0.75)C)C 12.5 10
PVC O.I. 04 MAT9750262 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR M.I. 07 MAT9296099 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PVC M.I. 05 MAT9295091 (4G1.5+2x(2x0.75)C)C 14.5 7.5 447683
PUR O.I. 06 MAT9850272 (4G1.5+2x(2x0.75)C)C 12.5 10 PVC O.I. 04 MAT9750271 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9296091 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC M.I. 05 MAT9295100 (4G1.5+2x(2x0.75)C)C 14.5 7.5
447675 PUR O.I. 06 MAT9850281 (4G1.5+2x(2x0.75)C)C 12.5 10
PVC O.I. 04 MAT9750263 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR M.I. 07 MAT9296100 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PVC M.I. 05 MAT9295092 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR O.I. 06 MAT9850273 (4G1.5+2x(2x0.75)C)C 12.5 10 15 A Extension cable, SpeedTec
PUR M.I. 07 MAT9296092 (4G1.5+2x(2x0.75)C)C 14.5 7.5
447676 445872
PVC O.I. 04 MAT9750264 (4G1.5+2x(2x0.75)C)C 13.5 10 PVC O.I. 04 MAT9750272 (4G1.5+2x(2x0.75)C)C 13.5 10
PVC M.I. 05 MAT9295093 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC M.I. 05 MAT9297085 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR O.I. 06 MAT9850274 (4G1.5+2x(2x0.75)C)C 12.5 10 PUR O.I. 06 MAT9850282 (4G1.5+2x(2x0.75)C)C 12.5 10
PUR M.I. 07 MAT9296093 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PUR M.I. 07 MAT9298085 (4G1.5+2x(2x0.75)C)C 14.5 7.5
447677
PVC O.I. 04 MAT9750265 (4G1.5+2x(2x0.75)C)C 13.5 10 20 A Basic cable, SpeedTec
PVC M.I. 05 MAT9295094 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR O.I. 06 MAT9850275 (4G1.5+2x(2x0.75)C)C 12.5 10 447684
PUR M.I. 07 MAT9296094 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC O.I. 04 MAT9750273 (4G2.5+2x(2x1.5)C)C 16.0 10
447678 PVC M.I. 05 MAT9295101 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PVC O.I. 04 MAT9750266 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR O.I. 06 MAT9850283 (4G2.5+2x(2x1.5)C)C 15.5 10
PVC M.I. 05 MAT9295095 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PUR M.I. 07 MAT9296101 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9850276 (4G1.5+2x(2x0.75)C)C 12.5 10 447687
PUR M.I. 07 MAT9296095 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC O.I. 04 MAT9750274 (4G2.5+2x(2x1.5)C)C 16.0 10
447679 PVC M.I. 05 MAT9295102 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PVC O.I. 04 MAT9750267 (4G1.5+2x(2x0.75)C)C 13.5 10 PUR O.I. 06 MAT9850284 (4G2.5+2x(2x1.5)C)C 15.5 10
PVC M.I. 05 MAT9295096 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PUR M.I. 07 MAT9296102 (4G2.5+2x(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9850277 (4G1.5+2x(2x0.75)C)C 12.5 10
PUR M.I. 07 MAT9296096 (4G1.5+2x(2x0.75)C)C 14.5 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
638 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 639
®
