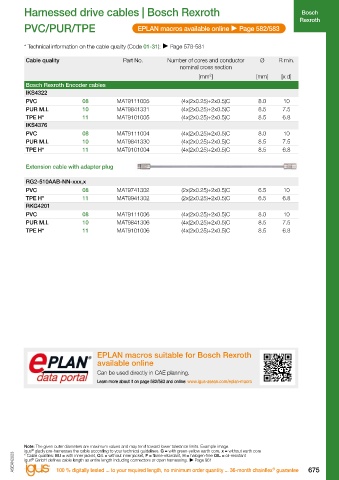

Page 681 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Bosch Rexroth Harnessed drive cables | Bosch Rexroth
Bosch Bosch
Rexroth Rexroth
PVC/PUR/TPE EPLAN macros available online  Page 582/583 PVC/PUR/TPE EPLAN macros available online  Page 582/583

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Bosch Rexroth Encoder cables Bosch Rexroth Encoder cables
IKS4322
Basic cable PVC 08 MAT9111005 (4x(2x0.25)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9841331 (4x(2x0.25)+2x0.5)C 8.5 7.5
RKG0026 TPE H* 11 MAT9101005 (4x(2x0.25)+2x0.5)C 8.5 6.8
PVC 08 MAT9110029 (3x(2x0.25)C+(3x0.25)+2x1.0)C 10.0 10 IKS4376
PUR M.I. 10 MAT9841303 (3x(2x0.25)C+(3x0.25)+2x1.0)C 10.0 7.5 PVC 08 MAT9111004 (4x(2x0.25)+2x0.5)C 8.0 10
TPE H* 11 MAT9100029 (3x(2x0.25)C+(3x0.25)+2x1.0)C 10.0 6.8 PUR M.I. 10 MAT9841330 (4x(2x0.25)+2x0.5)C 8.5 7.5
RKG0028 TPE H* 11 MAT9101004 (4x(2x0.25)+2x0.5)C 8.5 6.8
PVC 08 MAT9110031 (3x(2x0.25)C+(3x0.25)+2x1.0)C 10.0 10
PUR M.I. 10 MAT9841304 (3x(2x0.25)C+(3x0.25)+2x1.0)C 10.0 7.5 Extension cable with adapter plug
TPE H* 11 MAT9100031 (3x(2x0.25)C+(3x0.25)+2x1.0)C 10.0 6.8
RKG4200 RG2-510AAB-NN-xxx,x
PVC 08 MAT9110013 (4x(2x0.25)+2x0.5)C 8.0 10 PVC 08 MAT9741302 (2x(2x0.25)+2x0.5)C 6.5 10
PUR M.I. 10 MAT9841305 (4x(2x0.25)+2x0.5)C 8.5 7.5 TPE H* 11 MAT9941302 (2x(2x0.25)+2x0.5)C 6.5 6.8
TPE H* 11 MAT9100013 (4x(2x0.25)+2x0.5)C 8.5 6.8 RKG4201
PVC 08 MAT9111006 (4x(2x0.25)+2x0.5)C 8.0 10
Linking cable with adapter plug PUR M.I. 10 MAT9841306 (4x(2x0.25)+2x0.5)C 8.5 7.5
TPE H* 11 MAT9101006 (4x(2x0.25)+2x0.5)C 8.5 6.8
IKS0232
PVC 08 MAT9110009 (2x(2x0.25)+2x0.5)C 6.5 10
PUR M.I. 10 MAT9841325 (2x(2x0.25)+2x0.5)C 6.5 7.5
TPE H* 11 MAT9100009 (2x(2x0.25)+2x0.5)C 6.5 6.8
IKS0255
TPE H* 24 MAT9100018 (12x0.5)C 12.0 5
IKS0303
PVC 08 MAT9110019 (4x(2x0.25)+2x1.0)C 8.5 10
PUR M.I. 10 MAT9841326 (4x(2x0.25)+2x1.0)C 9.0 7.5
TPE H* 11 MAT9100019 (4x(2x0.25)+2x1.0)C 9.0 6.8
IKS4065
PVC 08 MAT9111001 (4x(2x0.25)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9841327 (4x(2x0.25)+2x0.5)C 8.5 7.5
TPE H* 11 MAT9101001 (4x(2x0.25)+2x0.5)C 8.5 6.8
IKS4151 EPLAN macros suitable for Bosch Rexroth
PVC 08 MAT9111002 (4x(2x0.25)+2x0.5)C 8.0 10 available online
PUR M.I. 10 MAT9841328 (4x(2x0.25)+2x0.5)C 8.5 7.5
TPE H* 11 MAT9101002 (4x(2x0.25)+2x0.5)C 8.5 6.8 Can be used directly in CAE planning.
IKS4153 Learn more about it on page 582/583 and online: www.igus-asean.com/eplan-macro
PVC 08 MAT9111003 (4x(2x0.25)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9841329 (4x(2x0.25)+2x0.5)C 8.5 7.5
TPE H* 11 MAT9101003 (4x(2x0.25)+2x0.5)C 8.5 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
