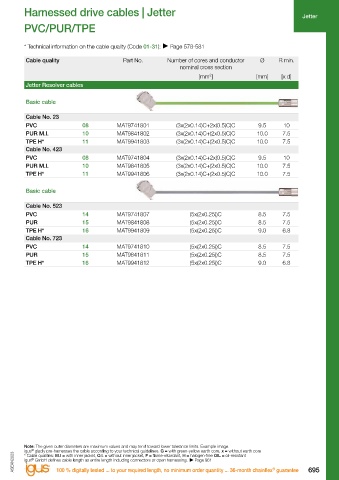

Page 701 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Jetter Harnessed drive cables | Jetter
Jetter Jetter
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Jetter Motor cables Jetter Resolver cables

Basic cable Basic cable

Cable No. 201 Cable No. 23
PVC M.I. 01 MAT9761805 (4G4.0)C 13.0 7.5 PVC 08 MAT9741801 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
PUR O.I. 06 MAT9861806 (4G4.0)C 12.5 10 PUR M.I. 10 MAT9841802 (3x(2x0.14)C+(2x0.5)C)C 10.0 7.5
PUR M.I. 07 MAT9851807 (4G4.0+(2x1.5)C)C 16.0 7.5 TPE H* 11 MAT9941803 (3x(2x0.14)C+(2x0.5)C)C 10.0 7.5
TPE F 02 MAT9961808 (4G4.0)C 13.0 7.5 Cable No. 423
Cable No. 203 PVC 08 MAT9741804 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
PVC M.I. 01 MAT9761809 (4G4.0)C 13.0 7.5 PUR M.I. 10 MAT9841805 (3x(2x0.14)C+(2x0.5)C)C 10.0 7.5
PUR O.I. 06 MAT9861810 (4G4.0)C 12.5 10 TPE H* 11 MAT9941806 (3x(2x0.14)C+(2x0.5)C)C 10.0 7.5
PUR M.I. 07 MAT9851811 (4G4.0+(2x1.5)C)C 16.0 7.5
TPE F 02 MAT9961812 (4G4.0)C 13.0 7.5 Basic cable
Cable No. 26.1
PVC M.I. 01 MAT9761801 (4G1.5)C 10.0 7.5 Cable No. 523
PUR O.I. 06 MAT9861802 (4G1.5)C 9.0 10 PVC 14 MAT9741807 (5x(2x0.25))C 8.5 7.5
PUR M.I. 07 MAT9861803 (4G1.5)C 11.0 7.5 PUR 15 MAT9841808 (5x(2x0.25))C 8.5 7.5
TPE F 02 MAT9961804 (4G1.5)C 10.0 7.5 TPE H* 16 MAT9941809 (5x(2x0.25))C 9.0 6.8
Jetter Servo cables Cable No. 723
PVC 14 MAT9741810 (5x(2x0.25))C 8.5 7.5
Basic cable PUR 15 MAT9841811 (5x(2x0.25))C 8.5 7.5
TPE H* 16 MAT9941812 (5x(2x0.25))C 9.0 6.8
Cable No. 202
PVC M.I. 05 MAT9751806 (4G4.0+(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9861807 (4G4.0+(2x1.5)C)C 15.0 10
PUR M.I. 07 MAT9851808 (4G4.0+(2x1.5)C)C 16.0 7.5
Cable No. 204
PVC M.I. 05 MAT9751810 (4G6.0+(2x1.5)C)C 18.0 7.5
PUR O.I. 06 MAT9861811 (4G6.0+(2x1.5)C)C 16.5 10
PUR M.I. 07 MAT9851812 (4G6.0+(2x1.5)C)C 17.5 7.5

Basic cable

Cable No. 24.1
PVC M.I. 05 MAT9751802 (4G1.5+(2x1.5)C) 13.0 7.5
PUR O.I. 06 MAT9851803 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9851804 (4G1.5+(2x1.5)C) 13.0 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
