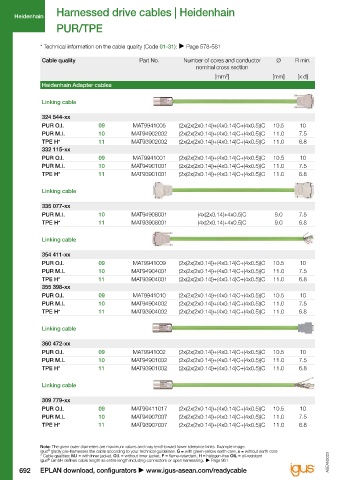

Page 698 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Heidenhain Harnessed drive cables | Heidenhain
Heidenhain Heidenhain
PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Heidenhain Adapter cables Heidenhain Adapter cables

Linking cable Linking cable

324 544-xx 309 780-xx
PUR O.I. 09 MAT9941005 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10 PVC 08 MAT9741004 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
PUR M.I. 10 MAT94902002 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5 PUR M.I. 10 MAT94909002 (3x(2x0.14)C+2x(0.5)C)C 10.0 7.5
TPE H* 11 MAT93902002 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8 TPE H* 11 MAT93909002 (3x(2x0.14)C+2x(0.5)C)C 10.0 6.8
332 115-xx
PUR O.I. 09 MAT9941001 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10 Linking cable
PUR M.I. 10 MAT94901001 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5
TPE H* 11 MAT93901001 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8 354 770-xx
TPE 12 MAT94910001 ((2xAWG28)+2xAWG20)C 5.5 12.5
Linking cable 12 MAT94910002 ((2xAWG24)+2xAWG20)C 6.5 12.5

335 077-xx
PUR M.I. 10 MAT94908001 (4x(2x0.14)+4x0.5)C 9.0 7.5
TPE H* 11 MAT93908001 (4x(2x0.14)+4x0.5)C 9.0 6.8

Linking cable

354 411-xx
PUR O.I. 09 MAT9941009 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10
PUR M.I. 10 MAT94904001 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5
TPE H* 11 MAT93904001 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8
355 398-xx
PUR O.I. 09 MAT9941010 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10
PUR M.I. 10 MAT94904002 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5
TPE H* 11 MAT93904002 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8

Linking cable

360 472-xx
PUR O.I. 09 MAT9941002 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10
PUR M.I. 10 MAT94901002 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5
TPE H* 11 MAT93901002 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8

Linking cable

309 779-xx
PUR O.I. 09 MAT99411017 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10
PUR M.I. 10 MAT94907007 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5
TPE H* 11 MAT93907007 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
